Next steps
1. Install the wireless card.
2. Install the disk-drive cage.
3. Install the 3.5-inch hard drive, if applicable.
4. Install the front bezel.
5. Install the side cover.
6. Follow the procedure in After working inside your computer.
External SMA antenna module
Removing the external SMA antenna module
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 3.5-inch hard drive, if applicable.
5. Remove the disk-drive cage.
6. Remove the wireless card.
7. Remove the graphics card, if applicable.
8. Remove the external antenna.
About this task

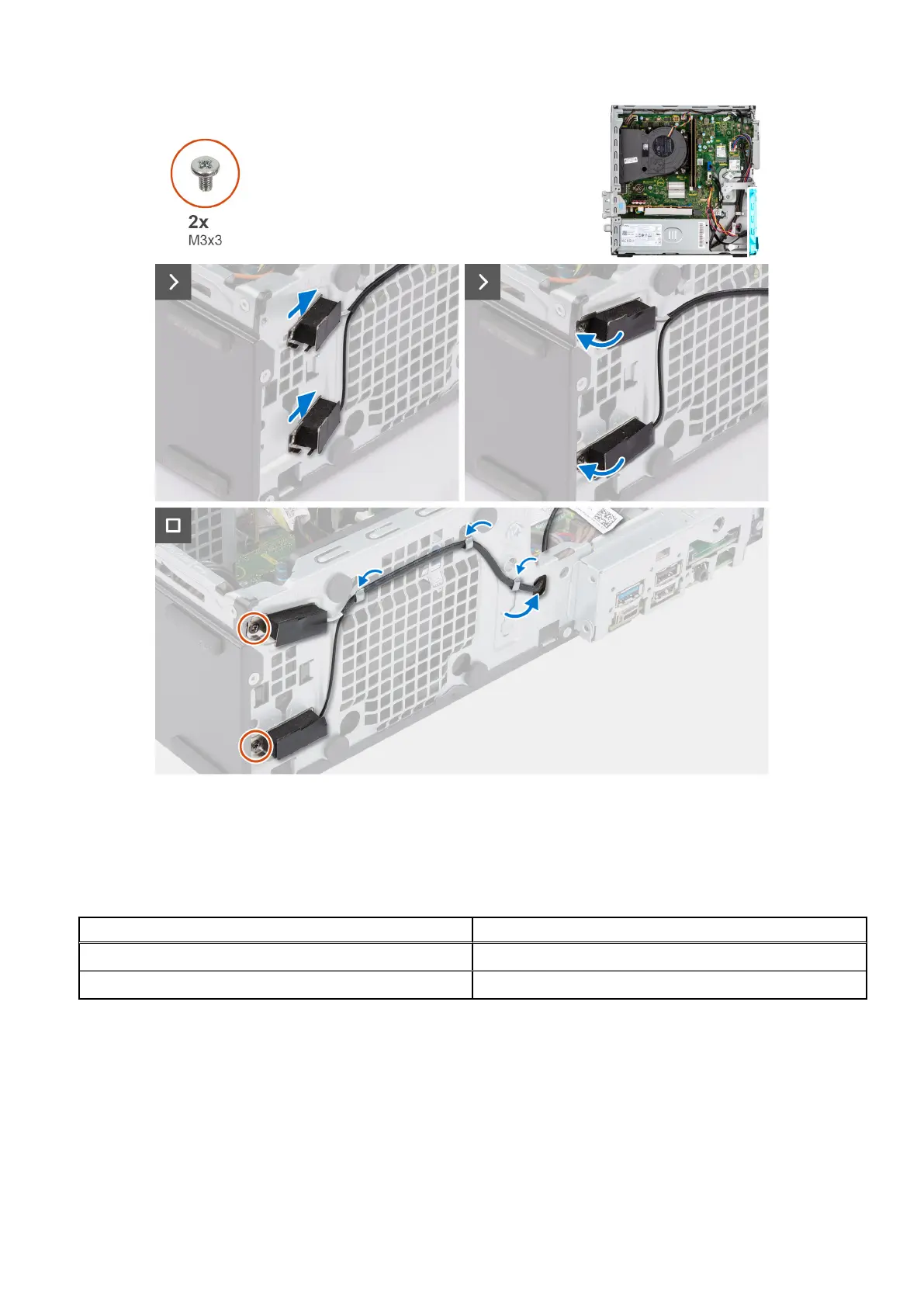

The following images indicate the location of the external SMA antenna module and provide a visual representation of the
removal procedure.
84
Removing and installing Field Replaceable Units (FRUs)
