Steps

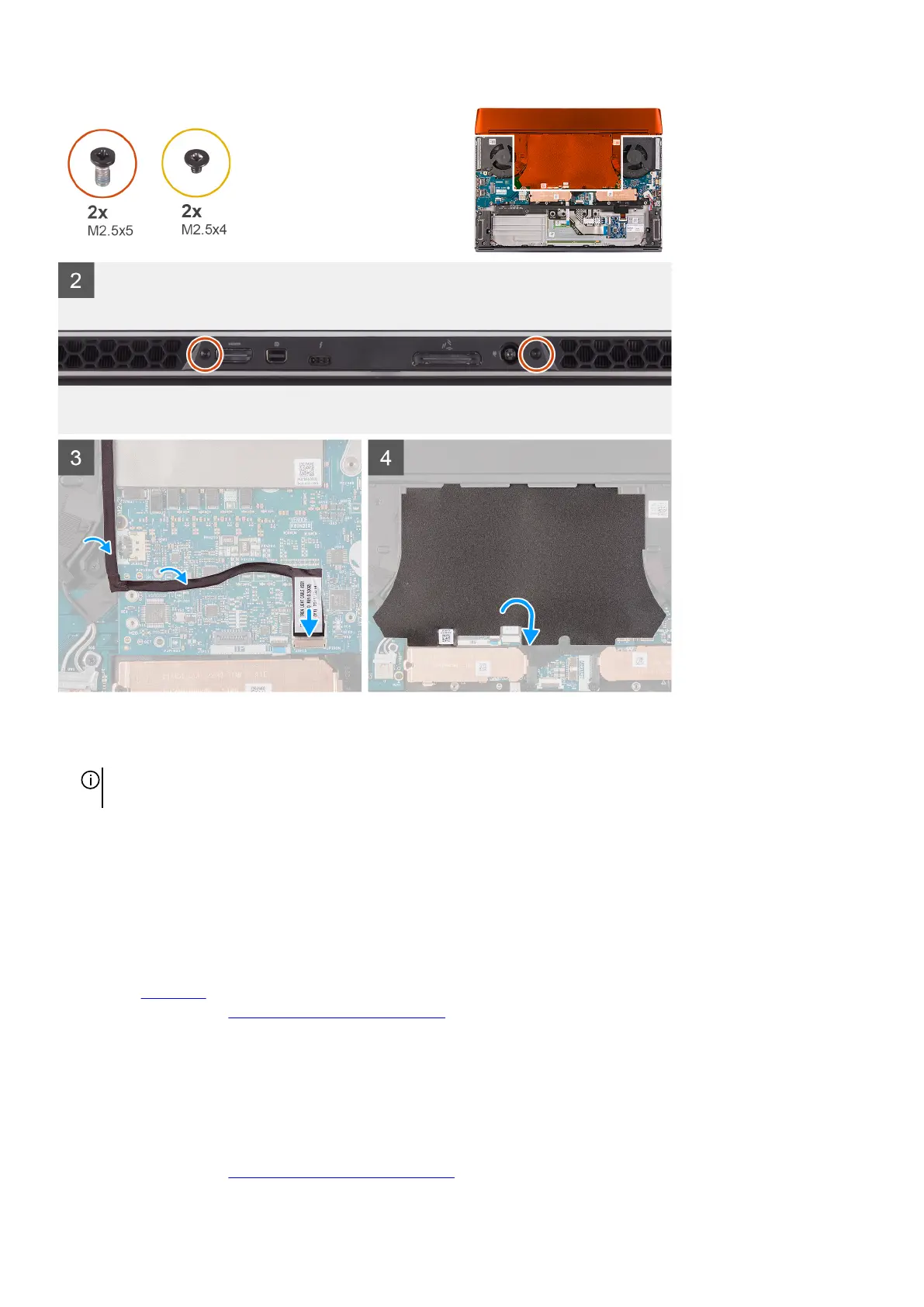

1. Push the rear I/O-cover into the palm-rest assembly snapping it into place.
NOTE: To avoiding damaging your computer, ensure the Tron light cable is not pinched and that the Mylar is pasted on
the system board before snapping the rear I/O-cover into place.
2. Replace the two screws (M2.5x4) that secure the rear I/O-cover to the palm-rest assembly.
3. Replace the two screws (M2.5x5) that secure the rear I/O-cover to the palm-rest assembly.
4. Peel and lift the Mylar from the system board.
5. Connect the Tron light cable to the system board.
6. Route and adhere the Tron light cable into place on the system board.
7. Adhere the Mylar into place onto the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
