System board
Removing the system board
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the
M.2 2230 solid-state drive. (if applicable)
5. Remove the M.2 2280 solid-state drive. (if applicable)
6. Remove the M.2 2230 WWAN/solid-state drive. (if applicable)
7. Remove the
rear IO-cover.
8. Remove the right IO-board.
About this task

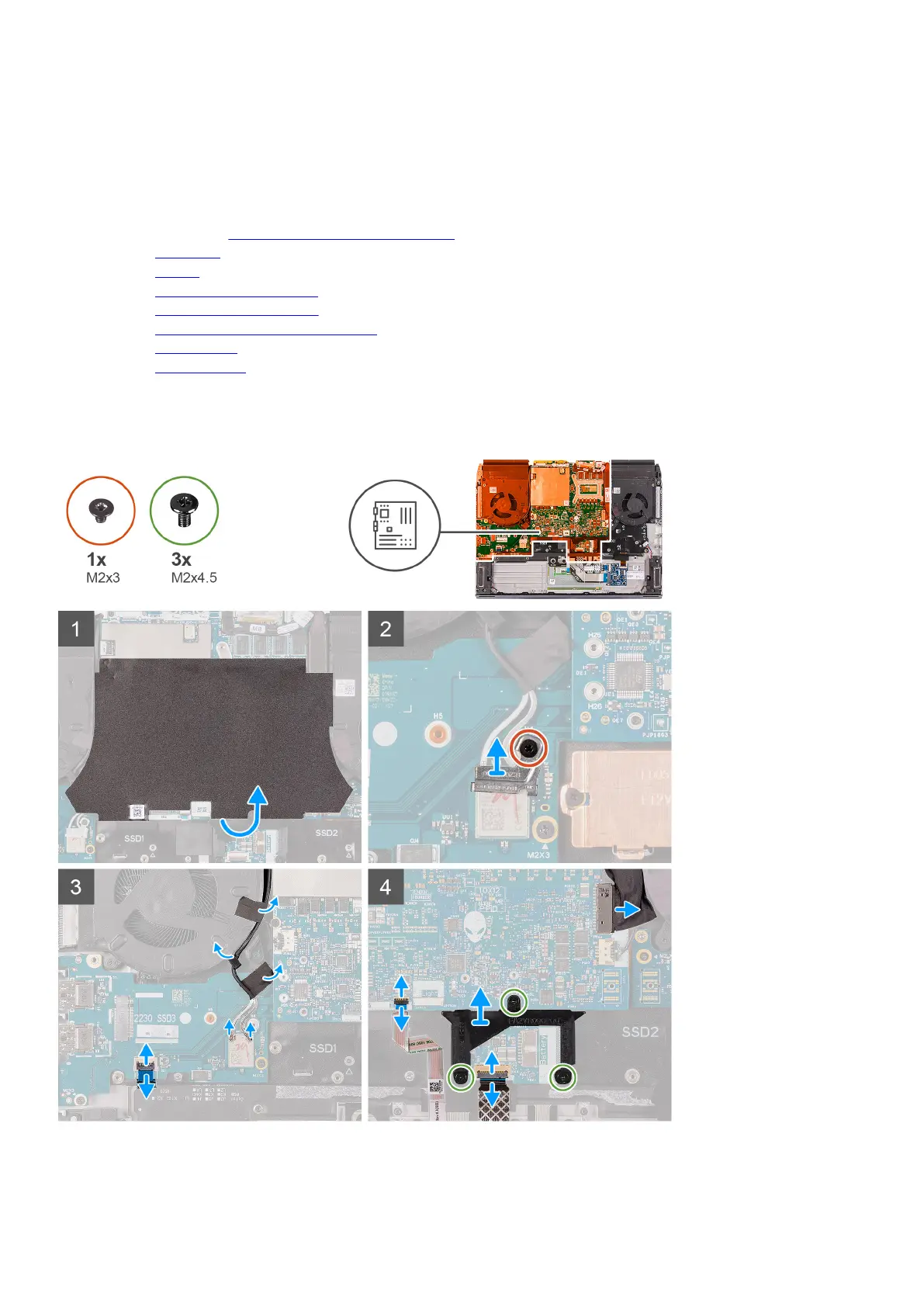

The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
