About this task

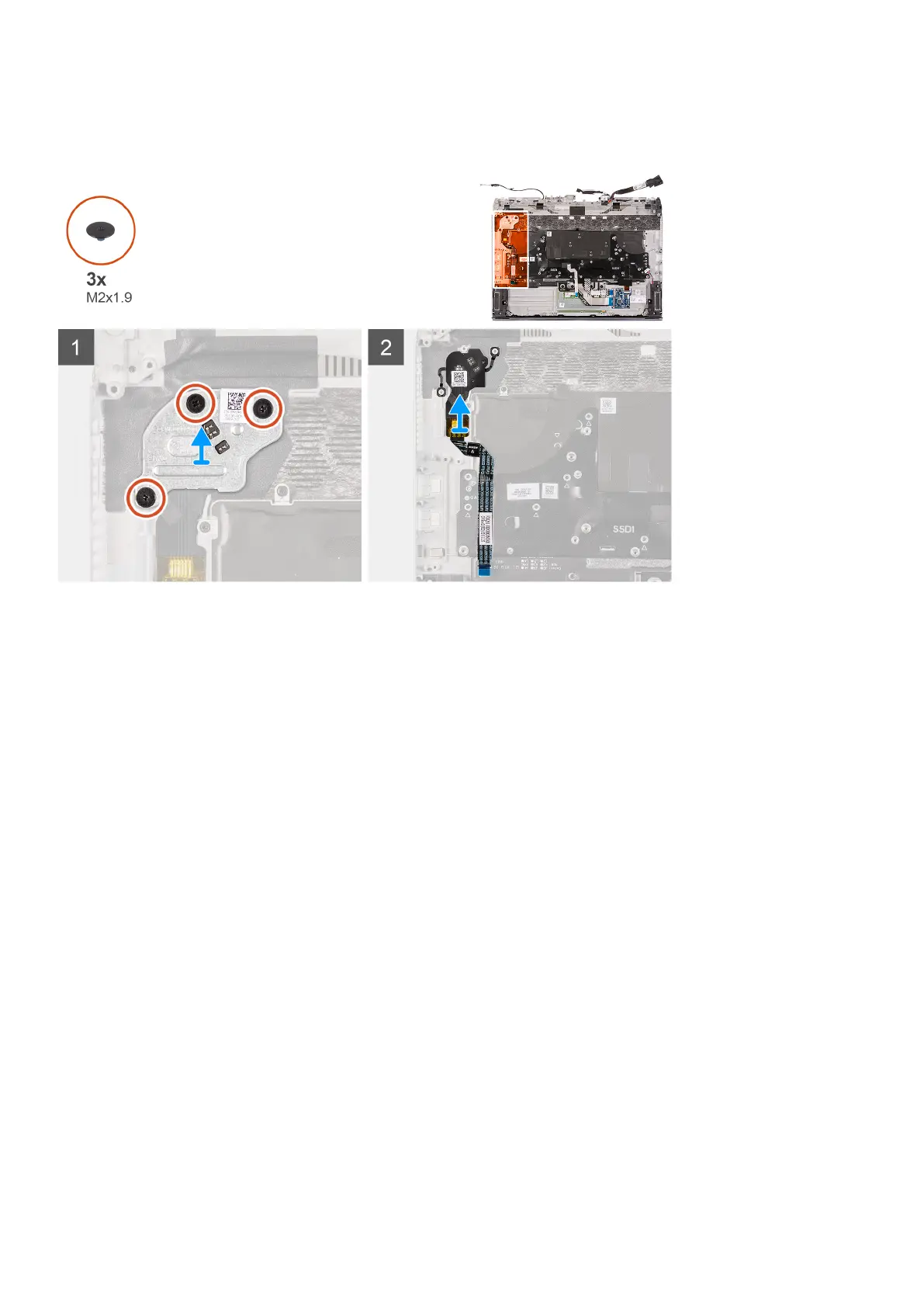

The following image(s) indicate the location of the power-button assembly and provides a visual representation of the removal
procedure.
Steps
1. Remove the three (M2x1.9) screws that secure the power-button bracket to the palm-rest assembly.
2. Lift the power-button bracket off the power-button assembly.
3. Peel the power-button assembly and its cable off the palm-rest assembly.
Installing the power-button assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the power-button assembly and provides a visual representation of the installation
procedure.
57
