12. Remove the eight screws (M2.5x4) securing the display assembly to the palm-rest assembly.
13. Lift the display assembly off the palm-rest assembly.

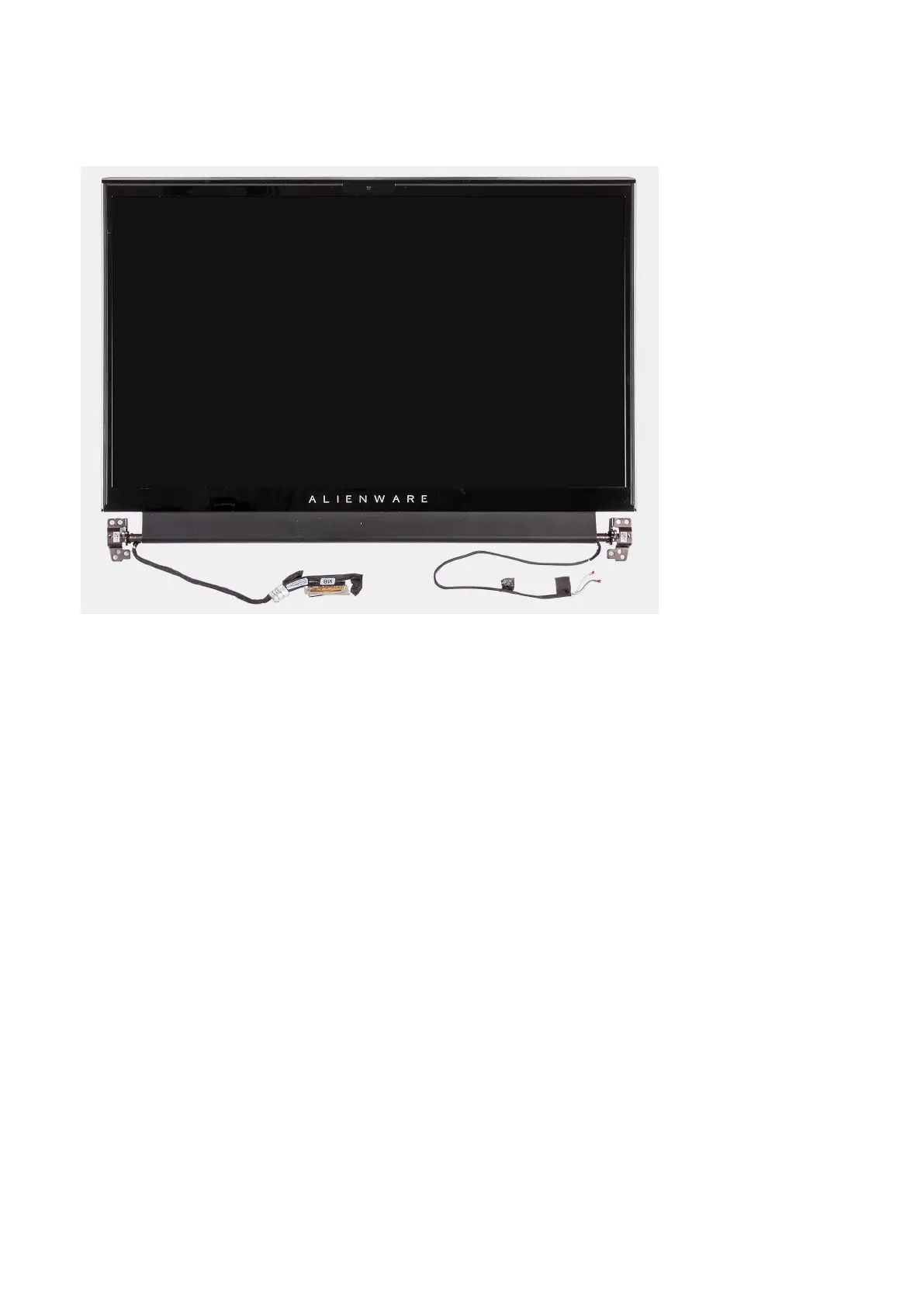

14. After performing the steps above you are left with the display assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the display assembly and provides a visual representation of the installation
procedure.
32
