Steps

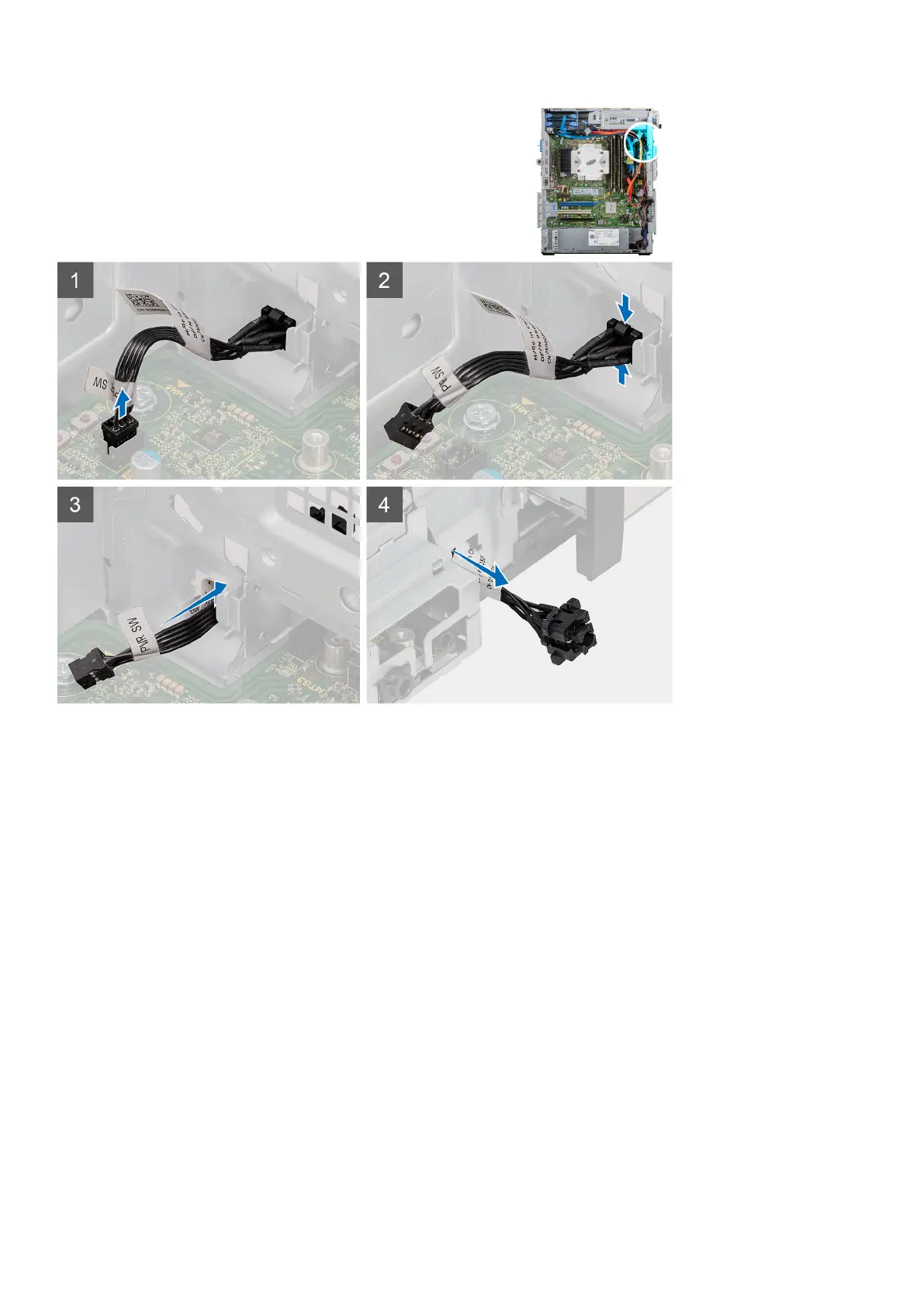

1. Lay the computer on the right side.
2. Disconnect the power button cable from the system board.
3. Press the release tabs and slide the power button out from the front-side of the computer.
4. Pull the power button out from the computer.
Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power button switch and provides a visual representation of the installation procedure.
Disassembly and reassembly
55
