Removing the 2.5–inch drive from the drive bracket
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the:
a Side cover
b 2.5 inch hard drive assembly
3 To remove the drive bracket:

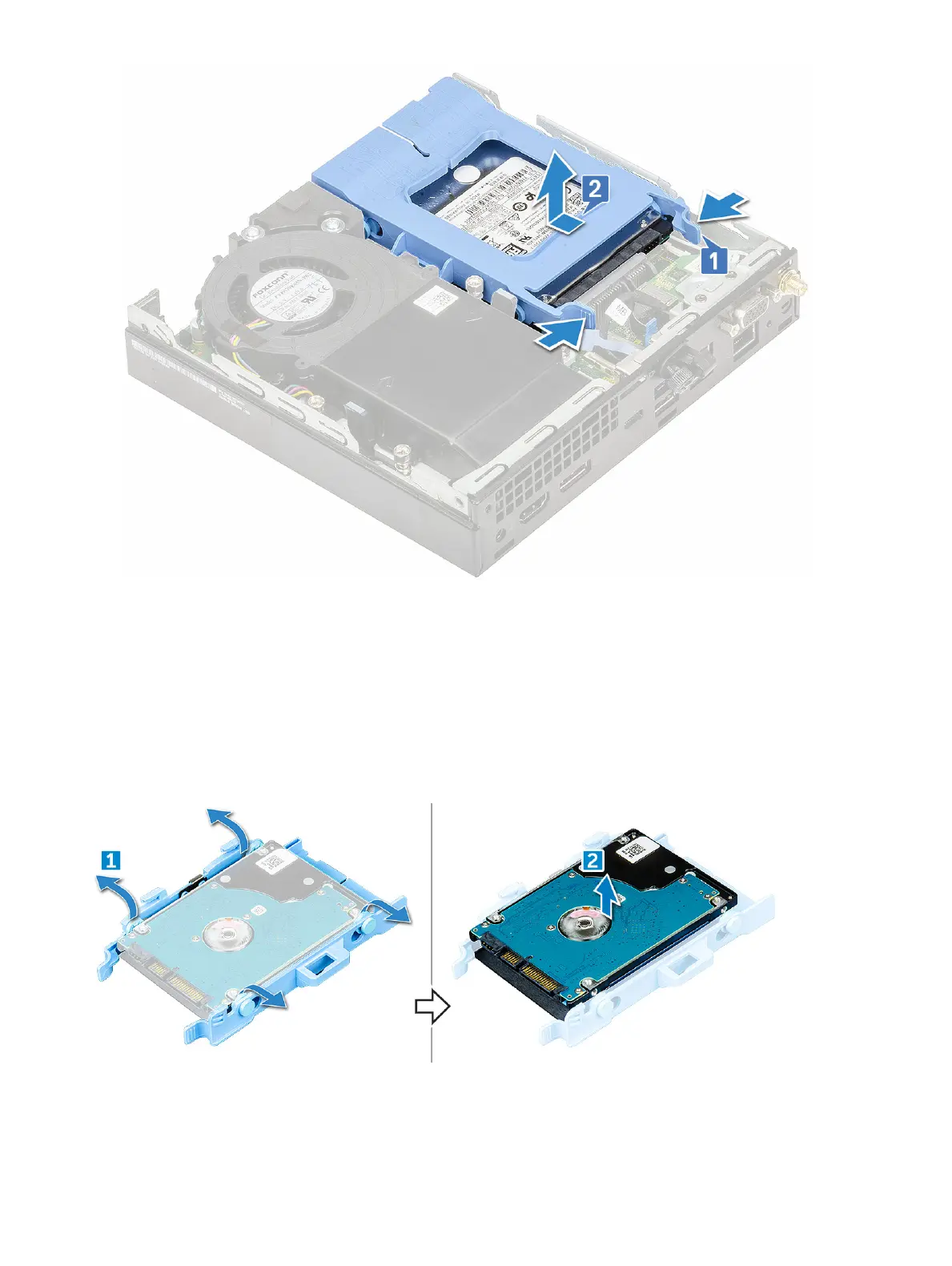

a Pull one side of the drive bracket to disengage the pins on the bracket from the slots on the drive [1] and lift the drive [2].
18
Removing and installing components
