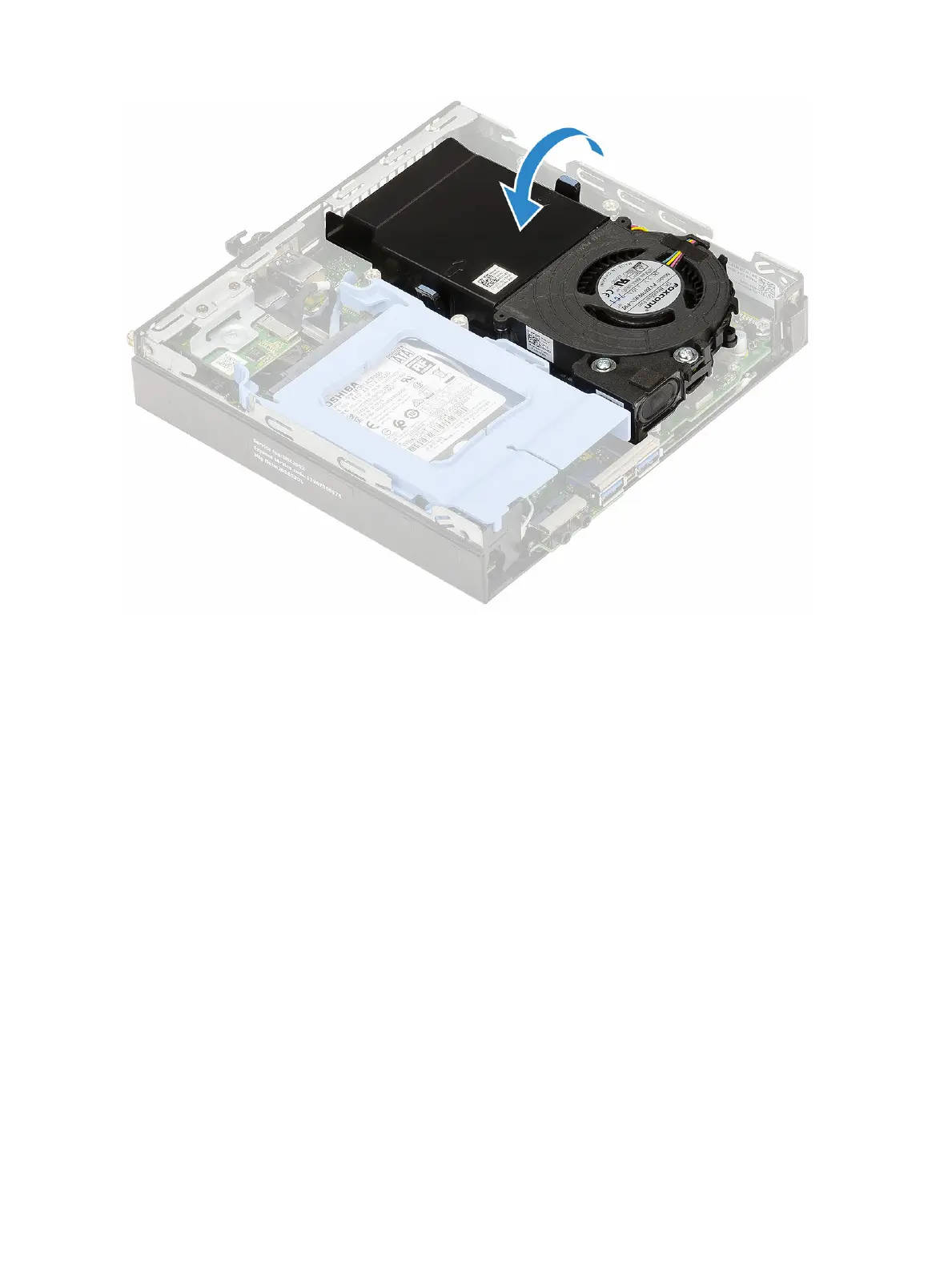

b Place the heat sink blower on the system and slide until it clicks into place.
2 Install the Side cover.
3 Follow the procedure in After working inside your computer.
Speaker
Removing speaker
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Heat sink blower
3 To remove the speaker:
a Release the speaker cable from the retention hooks on the heat sink blower [1].
b Remove the two (M2.5x4) screws that secure the speaker to the heat sink blower [2].
c Remove the speaker from the heat sink blower [3].
22
Removing and installing components
