Installing the 2.5 inch hard drive into the drive bracket
1 Align and insert the pins on the drive bracket with the slots on one side of the drive.
2 Flex the other side of the drive bracket, and align and insert the pins on the bracket into the drive.
3 Install the:
a 2.5 inch hard drive assembly
b Side cover
4 Follow the procedure in After working inside your computer.

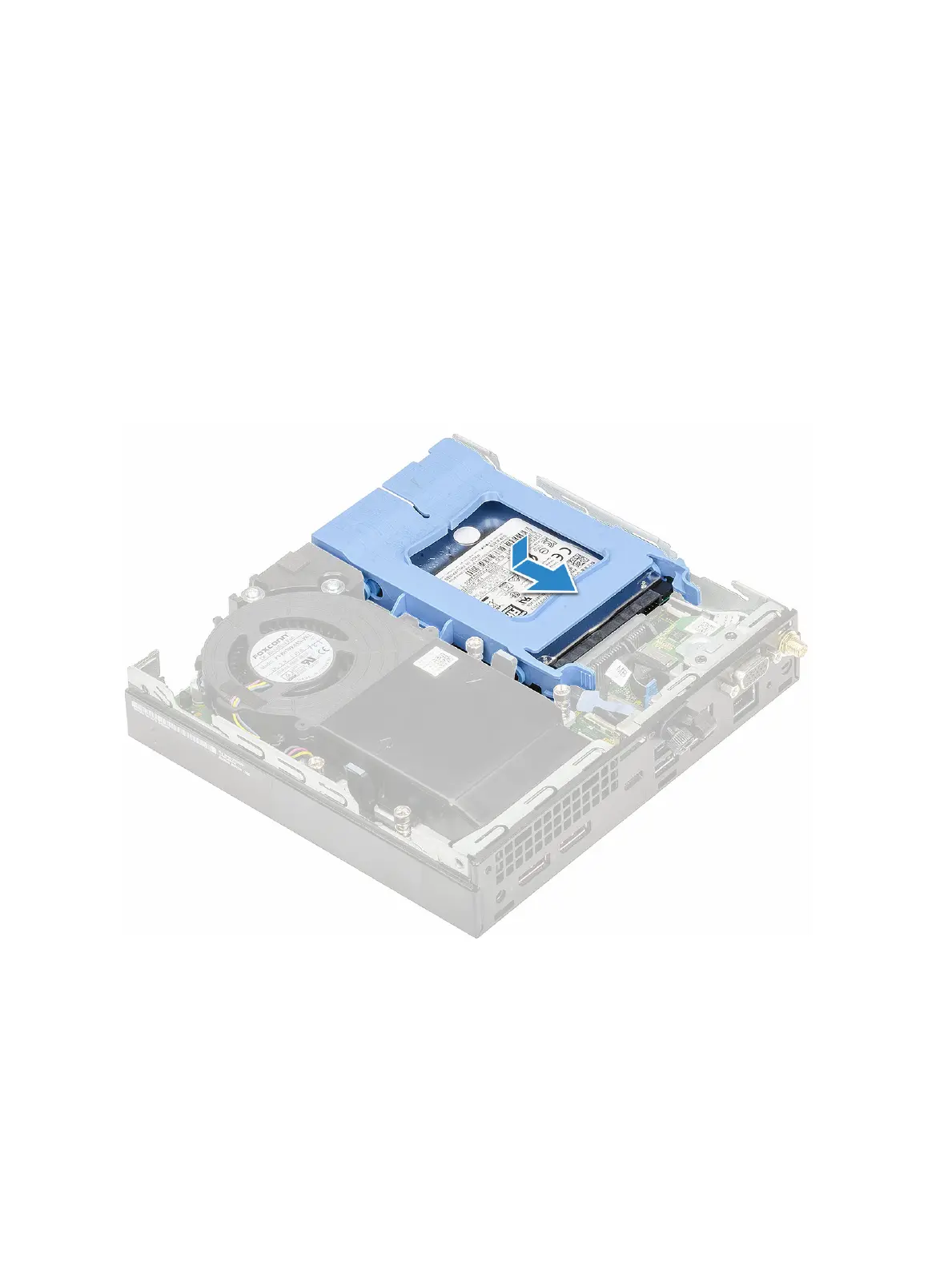

Installing 2.5–inch drive assembly
1 To install the hard drive assembly:
a Insert the hard drive assembly into the slot on the system.
b Slide the hard drive assembly towards the connector in the system board until it clicks into place.
2 Install the Side cover.
3 Follow the procedure in After working inside your computer.
