2 Install the
a Side cover
b Optional module
3 Follow the procedure in After working inside your computer.
System board
Removing system board
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b 2.5 hard drive assembly
c Heat sink blower
d WLAN
e M.2 PCIe SSD
f Memory module
g Optional module
h Heat sink
i Processor
3 To remove the HDD caddy support:

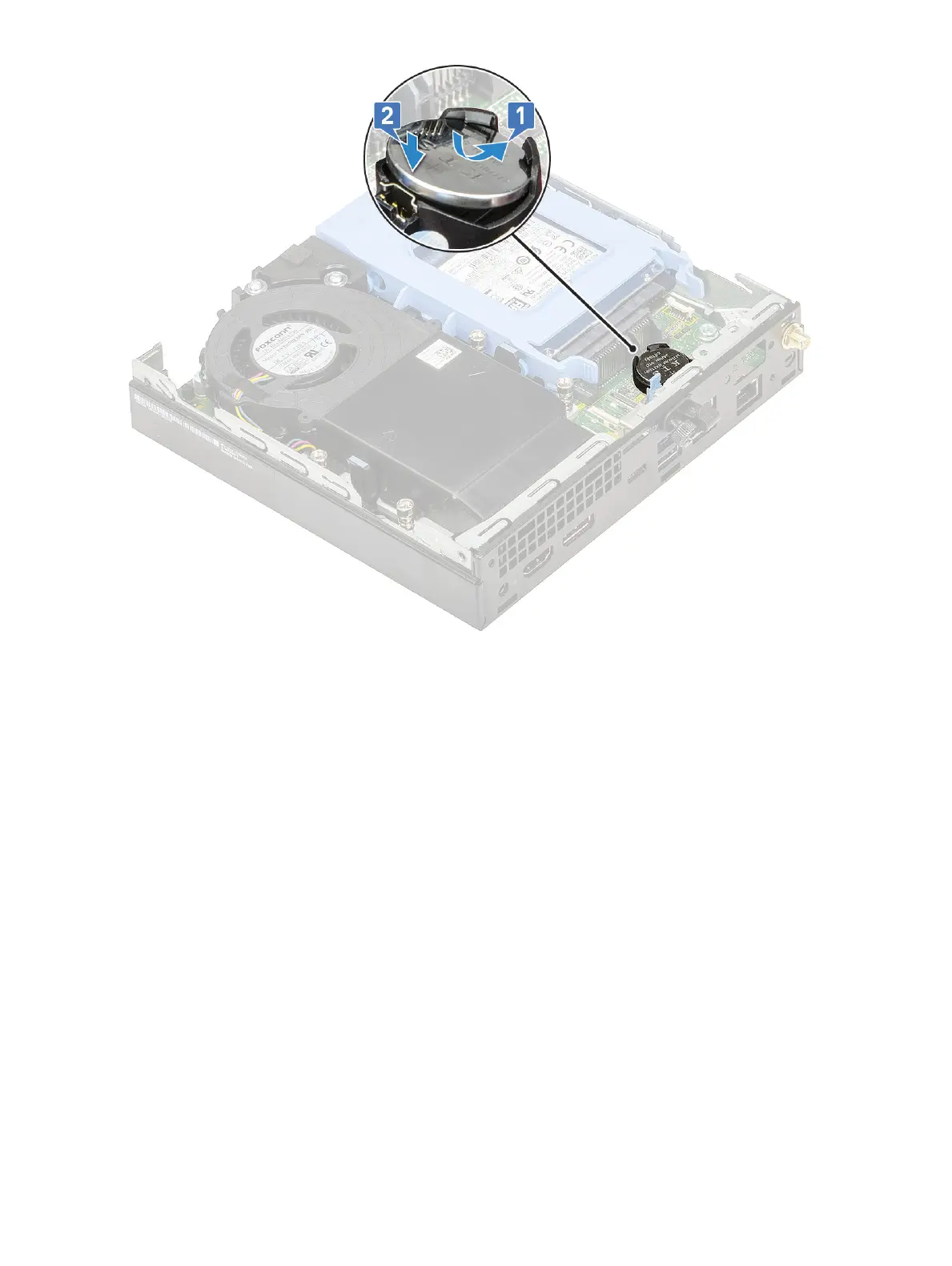

a Remove the screw that secures the HDD caddy support to the system board [1].
b Lift the HDD caddy support away from the system board [2].
Removing and installing components
39
