10. Verify that your computer works correctly by running the Dell Diagnostics.
Processor

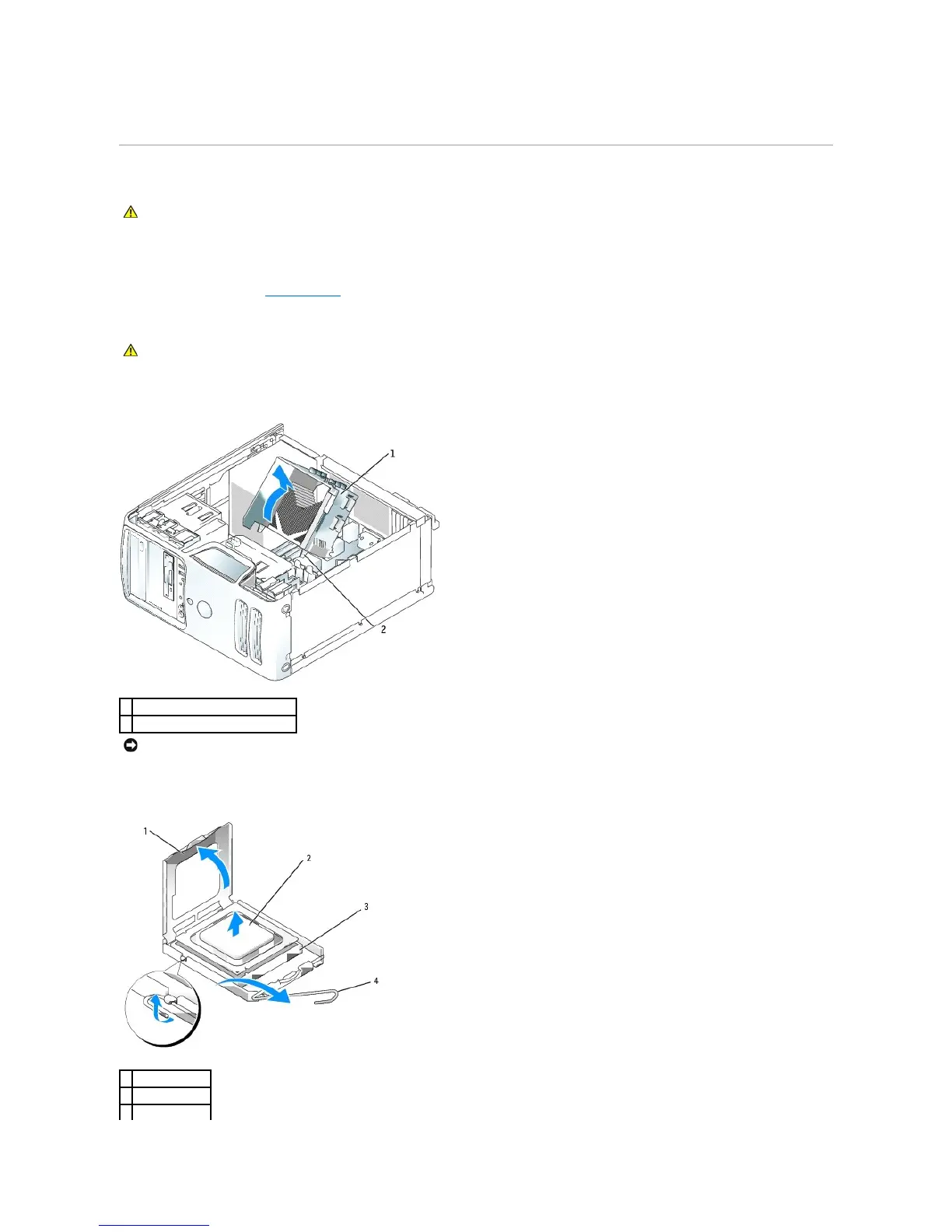

Removing the Processor
1. Follow the procedures in "Before you Begin."
2. Loosen the two captive screws on each side of the heat sink assembly.
3. Rotate the heat sink assembly upward, and remove it from the computer.
4. Open the processor cover by sliding the release lever from under the center cover latch on the socket. Then, pull the lever back to release the
processor.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
CAUTION: Despite having a plastic shield, the heat sink assembly may be very hot during normal operation. Be sure that it has had sufficient time
to cool before you touch it.
heat sink and fan shroud assembly
captive screw housing (2)
NOTICE: If you are installing a processor upgrade kit from Dell, discard the original heat sink. If you are not installing a processor upgrade kit from Dell,
reuse the original heat sink when you install your new processor.
