2. Place the display assembly on the palm-rest and keyboard assembly.
CAUTION: To avoid damaging the display, do not slide the display assembly.
3. Align the screw holes on the left display hinge with the screw holes on the palm-rest and keyboard assembly.
4. Replace the two screws (M2.5x4) that secure the left display hinge to the palm-rest and keyboard assembly.
5. Align the screw holes on the right display hinge with the screw holes on the system board.
6. Replace the three screws (M2.5x4) and the screw (M2x4) that secure the right display hinge to the palm-rest and keyboard
assembly.
7. Close the display lid and place the computer on a clean and flat surface.
8. Connect the touch-screen cable to the connector on the system board and close the latch.
9. Connect the display cable to the connector on the system board and close the latch.
10. Adhere the tape that secures the display-cable connector latch to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the M.2 2230 solid-state drive or the M.2 2280 solid-state drive, whichever is applicable.
5. Remove the wireless card.
6. Remove the display assembly.
7. Remove the fan.
8. Remove the heat sink.
About this task

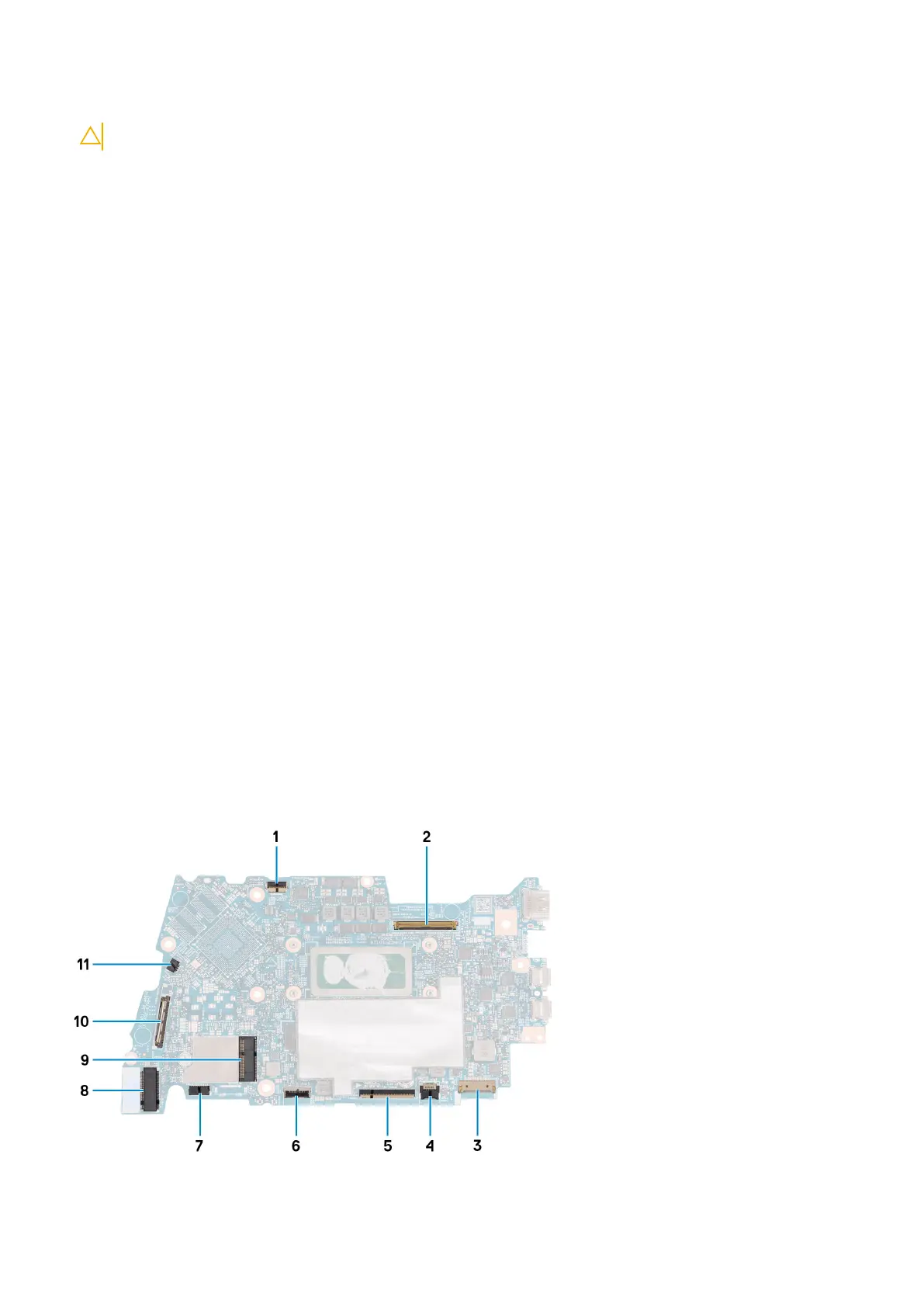

The following image indicates the connectors on your system board.
1. Display-board cable connector
