Dell Latitude 3189 User Manual

Removing and installing components
This section provides detailed information on how to remove or install the components from your computer.
Recommended tools
The procedures in this document require the following tools:
• Phillips #0 screwdriver
• Phillips #1 screwdriver
• Plastic scribe
NOTE: The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4

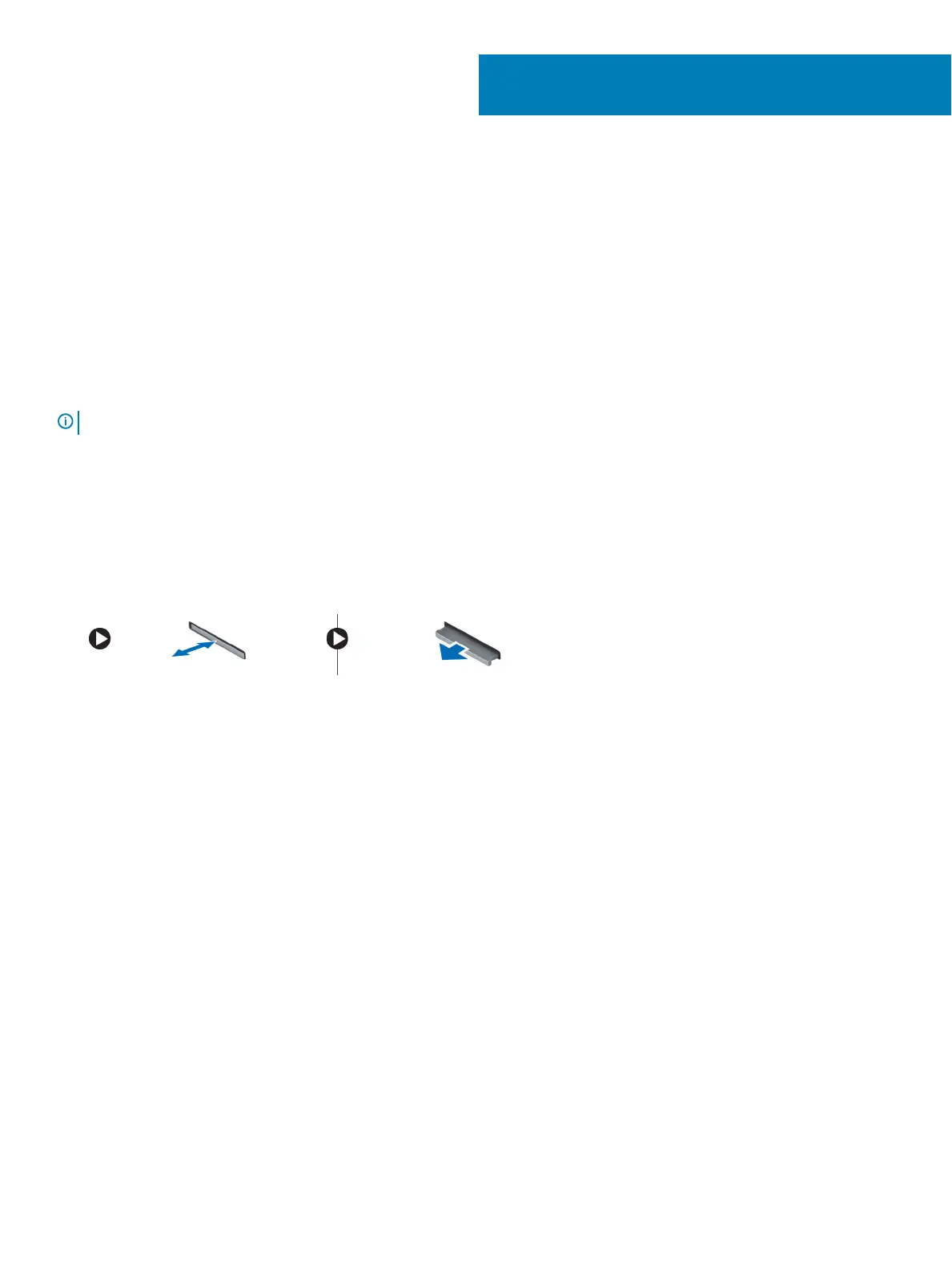

microSD card
Removing microSD card
1 Follow the procedure in Before working inside your computer.
2 Press in on the microSD card to release it from the computer.
3 Remove the microSD card from the computer.
Installing microSD card
1 Slide the SD card into its slot until it clicks into place.
2 Install the microSD card.
3 Follow the procedure in After working inside your computer.
Base cover
Removing base cover
1 Follow the procedure in Before working inside your computer.
2 Remove the microSD card.
3 To remove the base cover:
a Loosen the M2.5x7 captive screws that secure the base cover to the computer [1, 2].
2
Removing and installing components 9

Dell Latitude 3189 Specifications

General

Form factor	Convertible (Folder)
Product type	Hybrid (2-in-1)
Product color	Black
Market positioning	Educational
Tjunction	105 °C
Processor cache	2 MB
Processor cores	4
Processor model	N4200
System bus rate	- GT/s
Processor family	Intel® Pentium®
Processor series	Intel Pentium Processor N4000 Series for Mobile
Processor socket	BGA 1296
Processor codename	Apollo Lake
Processor frequency	1.1 GHz
Processor cache type	L2
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	2.0
Processor boost frequency	2.5 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x2, 1x2+2x1
Thermal Design Power (TDP)	6 W
Scenario Design Power (SDP)	4 W
Maximum number of PCI Express lanes	6
Internal memory	4 GB
Memory clock speed	1600 MHz
Memory form factor	On-board
Internal memory type	LPDDR3-SDRAM
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA
Storage media	SSD
SSD form factor	M.2
Card reader integrated	Yes
Total storage capacity	128 GB
Compatible memory cards	MicroSD (TransFlash)
Number of SSDs installed	1
Display diagonal	11.6 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Number of execution units	18
On-board graphics card ID	0x5A84
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 505
Maximum on-board graphics card memory	8 GB
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	750 MHz
Audio chip	Realtek ALC3246
Speaker power	2 W
Number of built-in speakers	2
Front camera resolution	1280 x 720 pixels
Rear camera resolution (numeric)	1 MP
Front camera resolution (numeric)	5 MP
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Docking connector	-
Charging port type	DC-in jack
USB 2.0 ports quantity	0
Pointing device	Touchpad
Trial software	McAfee, Microsoft Office
Battery capacity	42 Wh
Number of battery cells	3
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Cable lock slot type	Noble
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 10668 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	ENERGY STAR
Processor ARK ID	95592
Processor package size	24 x 31 mm
Intel Identity Protection Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00

Weight and Dimensions

Depth	207.9 mm
Width	303.8 mm
Height	20.75 mm
Weight	1474.9 g
