Table 1. Screw size list (continued)

Component M2x2 M2x3 M2x4 M2.5x2.5 M2.5x5 M2x5.5 M3x3 2.0D 0.8+2.2L K

Battery to palmrest 5

WLAN module to System board 1

WWAN module to WWAN board 1

SSD to palmrest 1

FP bracket to palmrest 1

SIM tray – optional

SIM tray is an optional component. You will see a SIM tray only in systems shipped with a WWAN card.

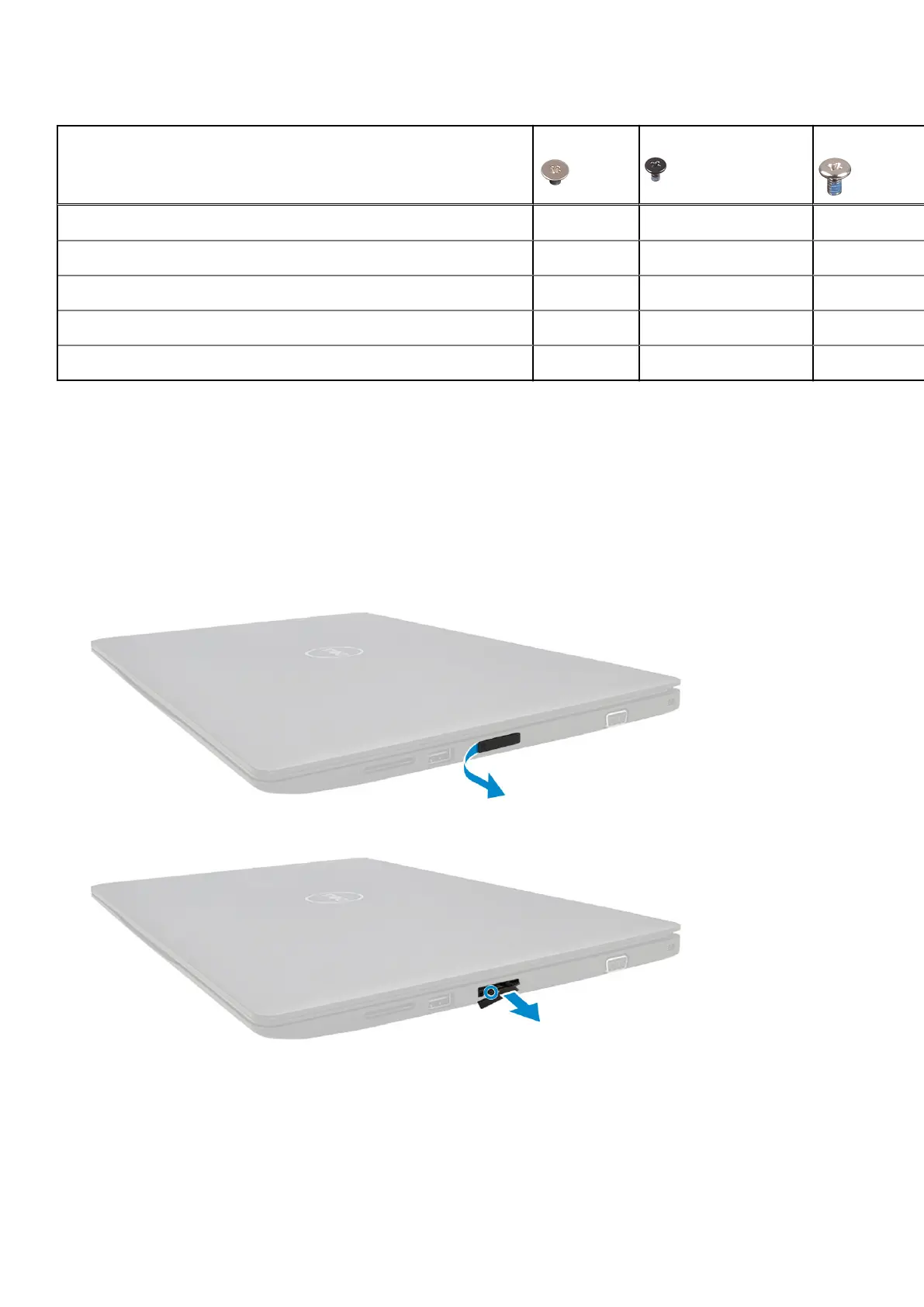

Removing the SIM tray – WWAN models

1. Follow the procedure Before working inside your computer

2. Open the SIM card slot cover on the right side of the system.

3. Insert the tip of a paperclip into the hole of the SIM tray slot and then pull out and remove the SIM tray.

Installing the SIM tray – WWAN models

1. Align and push the SIM tray back into the SIM tray slot.

2. Close the SIM card slot cover.

3. Follow the procedure in After working inside your computer

Disassembly and reassembly

Other manuals for Dell Latitude 3490

Quick Start Guide2 pages

Questions and Answers:

E
ewalshJul 31, 2025
What to do if my Dell Latitude 3490 battery is swollen?
- T
  Timothy MedinaAug 1, 2025
  If you notice that your Dell Laptop's lithium-ion battery is swollen, discontinue using the laptop. Discharge it by disconnecting the AC adapter and letting the battery drain. It is also recommended to contact Dell product support to explore options for replacing the swollen battery under your warranty or service contract.

Dell Latitude 3490 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black
Market positioning	Business
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	1 x 8 GB
AC adapter included	Yes
HDD size	2.5 \
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	No
Total storage capacity	500 GB
Compatible memory cards	SD, SDHC, SDXC
Number of HDDs installed	1
On-board graphics card ID	0x5917
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 620
On-board graphics card family	Intel® UHD Graphics
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1100 MHz
Audio chip	Realtek ALC3246
Audio system	MaxxAudio Pro
Speaker power	2 W
Speakers manufacturer	Waves
Number of built-in speakers	2
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p
Front camera resolution (numeric)	0.92 MP
Antenna type	2x2
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.1
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Qualcomm QCA61x4A
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI version	1.4
Charging port type	DC-in jack
DisplayPorts quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pointing device	Touchpad
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.34 A
AC adapter output voltage	19.5 V
Cable lock slot type	Noble
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 10668 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Pixel pitch	0.226 x 0.226 mm
Pixel density	112 ppi
Display surface	Matt
Display diagonal	14 \
Display brightness	220 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Contrast ratio (typical)	300:1
Bus type	OPI
Stepping	Y0
Tjunction	100 °C
Processor cache	6 MB
Processor cores	4
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor socket	BGA 1356
Processor threads	8
Processor codename	Kaby Lake R
Configurable TDP-up	25 W
Processor frequency	1.6 GHz
Processor cache type	Smart Cache
Configurable TDP-down	10 W
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	3.4 GHz
Processor operating modes	64-bit
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Operating system language	ENG, ESP, FRE
Battery capacity	56 Wh
Processor code	SR3LA
Processor ARK ID	124967
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
