Dell Latitude 7320 User Manual

Steps
1. Align and place the display assembly at a 90º angle to the bottom chassis.
2. Replace the four (M2.5x5) screws securing the hinges to the bottom chassis.
3. Route the display cable along the guiding tabs and connect the display, camera, touch screen, sensor board cables to the
system board.
4. Align and place the display cable bracket on the connector on the system board.
5. Install the two (M2x2) screws securing the display cable bracket to the system board.
Next steps
1. Install the WWAN card.
2. Install the base cover.
3. Install the microSD card.
4. Follow the procedure in after working inside your computer.
Audio board
Removing the audio board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
About this task

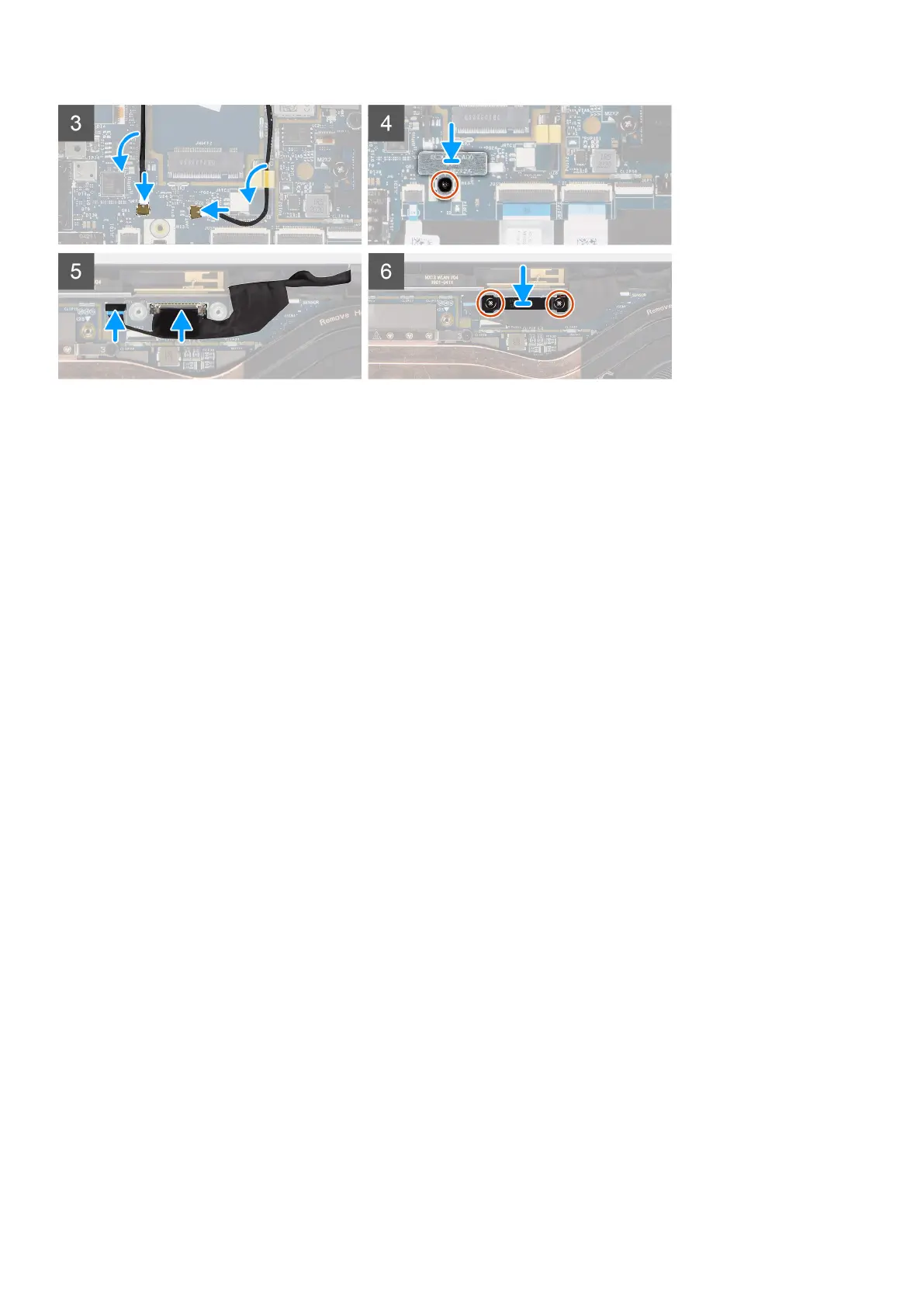

The following images indicate the location of the audio board and provide a visual representation of the removal procedure.
Removing and installing components
39
