32 Using Your Projector

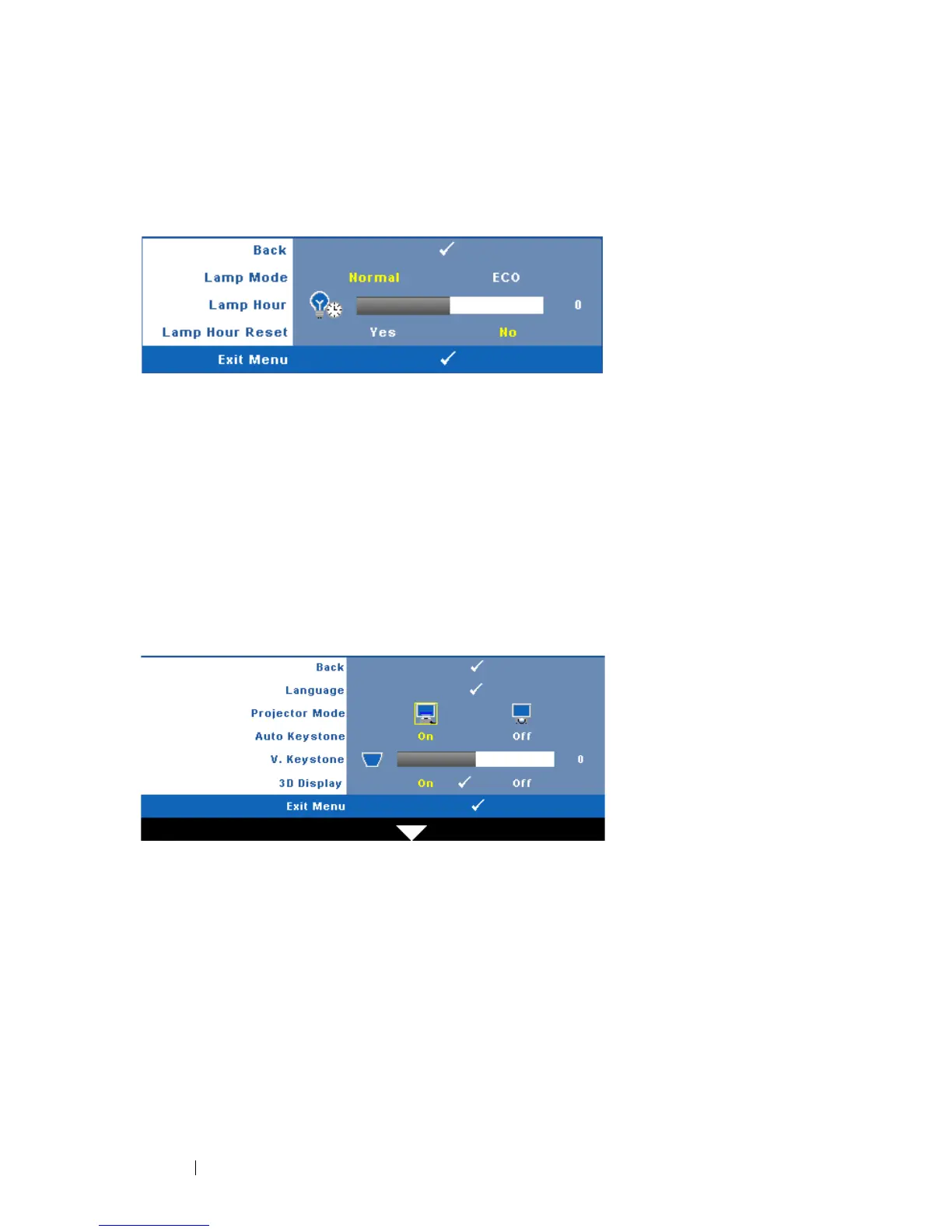

LAMP
Using the Lamp menu, you can adjust the display settings of your projector. The
Lamp menu provides the following options:
LAMP MODE—Allows you to select between Normal and ECO mode.
Normal mode operates at full power level. ECO Mode operates at a lower power
level which may provide longer lamp life, quieter operation, and dimmer
luminance output on the screen.
L
AMP HOUR—Displays the operating hours since the last lamp timer reset.
L
AMP HOUR RESET—Select Yes to reset the lamp timer.
SET UP
The Set Up menu allows you to adjust settings for Language, Projector Mode,
Keystone, and 3D Display.

Dell M410HD Specifications

General

Projection distance	1 - 12 m
Projection technology	DLP
Contrast ratio (typical)	2100:1
Projector native resolution	WXGA (1280x800)
Lamp power	165 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Audio input	1
Dimensions (WxDxH)	205 x 155 x 75.9 mm
Power requirements	AC 100-240 50-60Hz
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	1 W
AC (power) in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (typical)	210 W
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	80 - 90 %

Weight and Dimensions

Weight	1180 g
