Dell OptiPlex 3020 User Manual

5. intrusion switch
6. heatsink cover
7. heatsink
8. drive cage

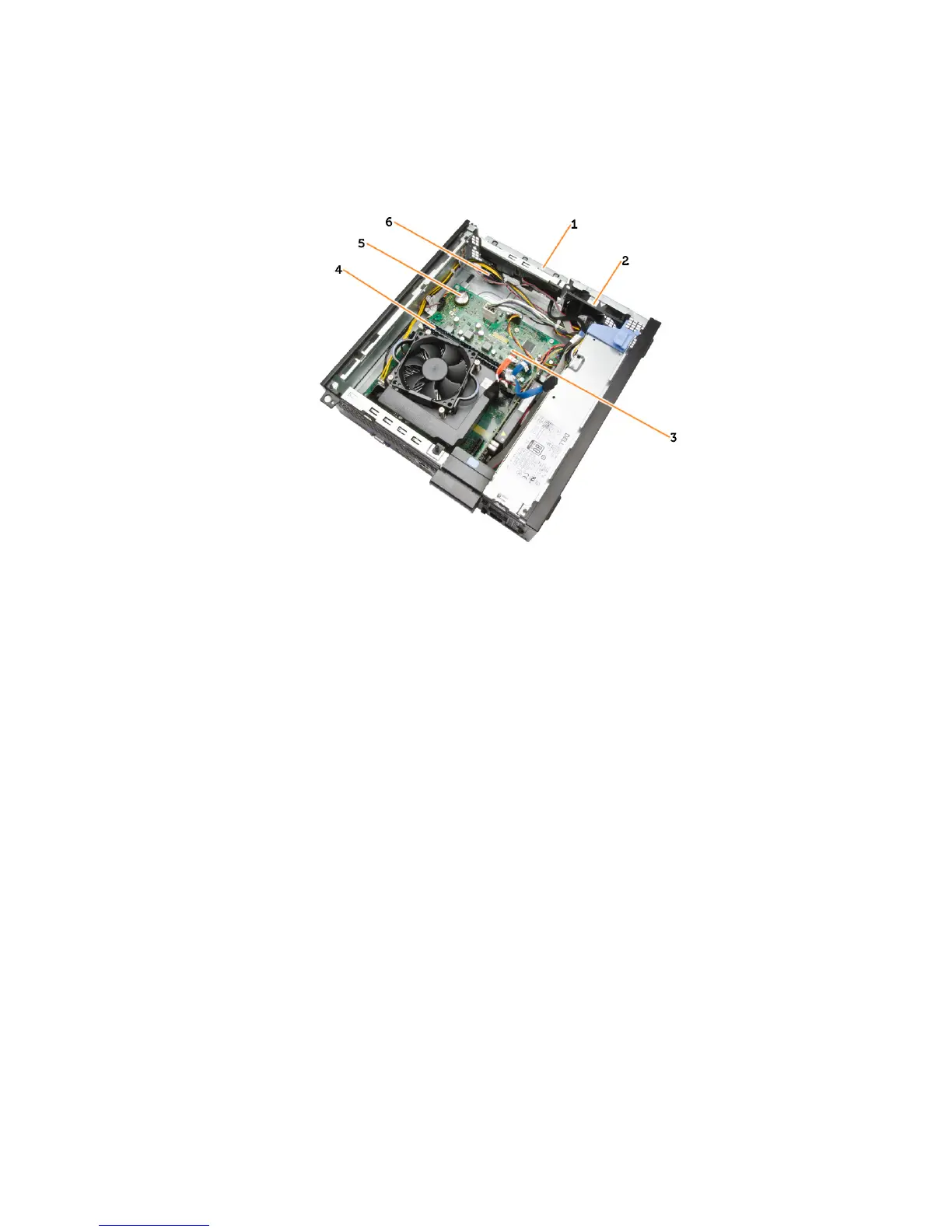

1. front I/O
2. system fan
3. system board
4. memory module
5. coin cell
6. speaker
Removing the Cover
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the thumbscrews that secure the cover to the computer. Slide the cover from the
computer.
10

Dell OptiPlex 3020 Specifications

General

Tcase	72.72 °C
Bus type	DMI2
Stepping	C0
Tjunction	- °C
FSB Parity	No
Processor cache	6 MB
Processor cores	4
Processor model	i5-4590
System bus rate	5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-4500 Desktop Series
Processor socket	LGA 1150 (Socket H3)
Processor codename	Haswell
Number of QPI links	0
Processor frequency	3.3 GHz
Processor cache type	L3
Configurable TDP-down	- W
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	84 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory voltage supported by processor	1.5 V
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
On-board graphics card ID	0x412
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4600
Graphics card Open GL support	Yes
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	2 GB
On-board graphics card OpenGL version	4.0
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	11.1
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
Scalability	1S
Processor code	SR1QJ
Processor ARK ID	80815
Intel TSX-NI version	0.00
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2013D
Intel Identity Protection Technology version	1.00
Intel® Small Business Advantage (Intel® SBA)	-
Intel segment tagging	Enterprise, Small Business
Intel® Virtualization Technology (Intel® VT)	VT-x, VT-d
Memory slots	2x DIMM
Internal memory	4 GB
Memory channels	Dual-channel
Memory clock speed	1600 MHz
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Total storage capacity	1000 GB
Operating system installed	Windows 7 Professional
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	20 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC
Audio system	ALC3220 HD
Product type	PC
Motherboard chipset	Intel® H81
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Chassis type	Mini Tower
Product color	Black
Placement supported	Vertical
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Sustainability certificates	RoHS, ENERGY STAR
Certification	CECP, WEEE
Power supply	290 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Weight and Dimensions

Depth	417 mm
Width	175 mm
Height	360 mm
Weight	9400 g
