Dell OptiPlex XE User Manual

To reset system and/or administrator passwords, see Clearing Forgotten Passwords.
Jumper Settings
 
Clearing Forgotten Passwords



1. Follow the procedures in Working on Your Computer.

2. Remove the computer cover.

3. Locate the 2-pin password jumper (PSWD) on the system board, and remove the jumper to clear the password. See Password Protection.

4. Replace the computer cover.

5. Connect your computer and monitor to electrical outlets, and turn them on.

6. After the Microsoft®Windows®desktop appears on your computer, shut down your computer.

7. Turn off the monitor and disconnect it from the electrical outlet.

8. Disconnect the computer power cable from the electrical outlet, and press the power button to ground the system board.

9. Open the computer cover.

10. Locate the 2-pin password jumper on the system board and attach the jumper to reenable the password feature.

11. Replace the computer cover.




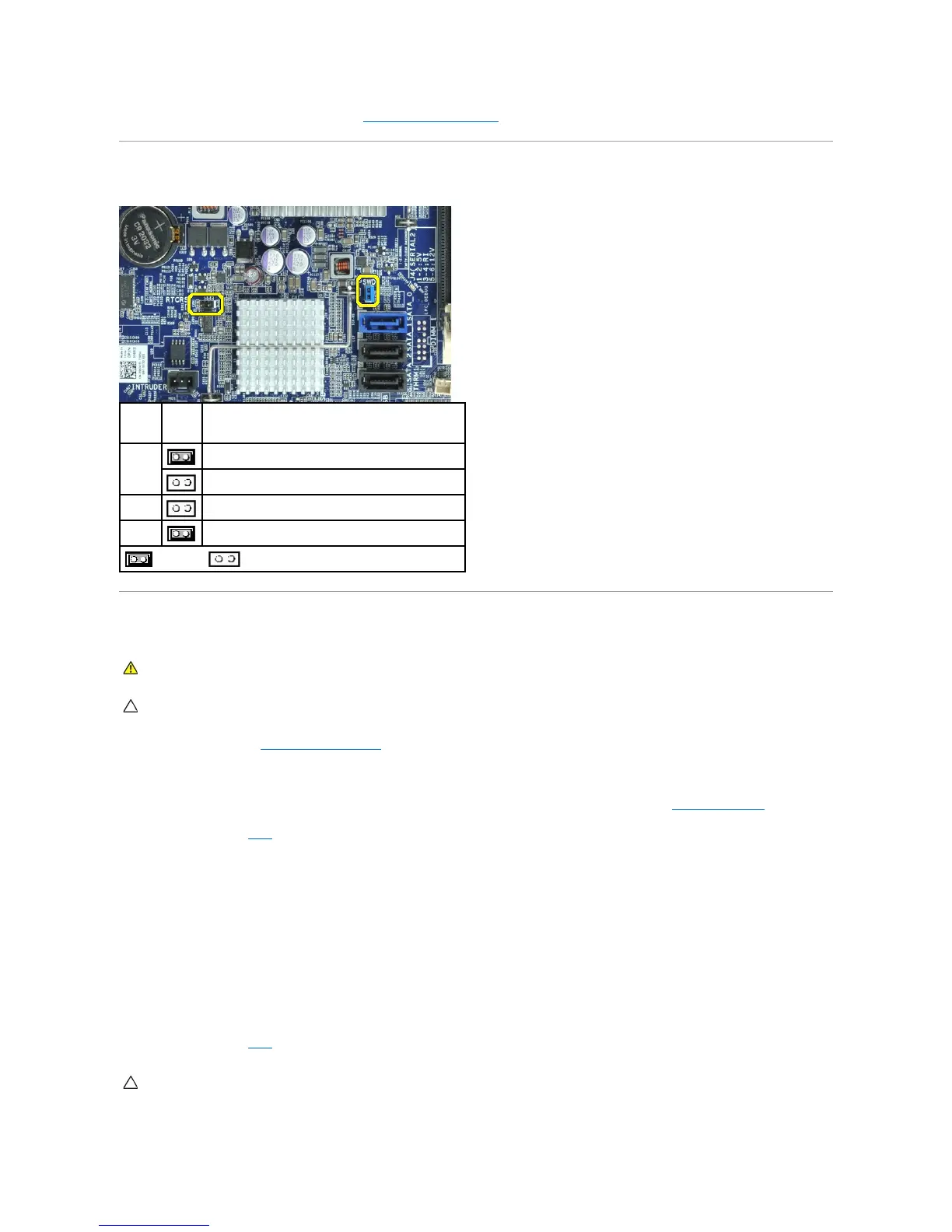

Jumper

Setting

Description
PSWD
Password features are enabled (default setting).
Password features are disabled.
RTCRST
The real-time clock has not been reset.

The real-time clock is being reset (jumpered temporarily).
jumpered unjumpered
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: This process erases both the system and administrator passwords.
CAUTION: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
