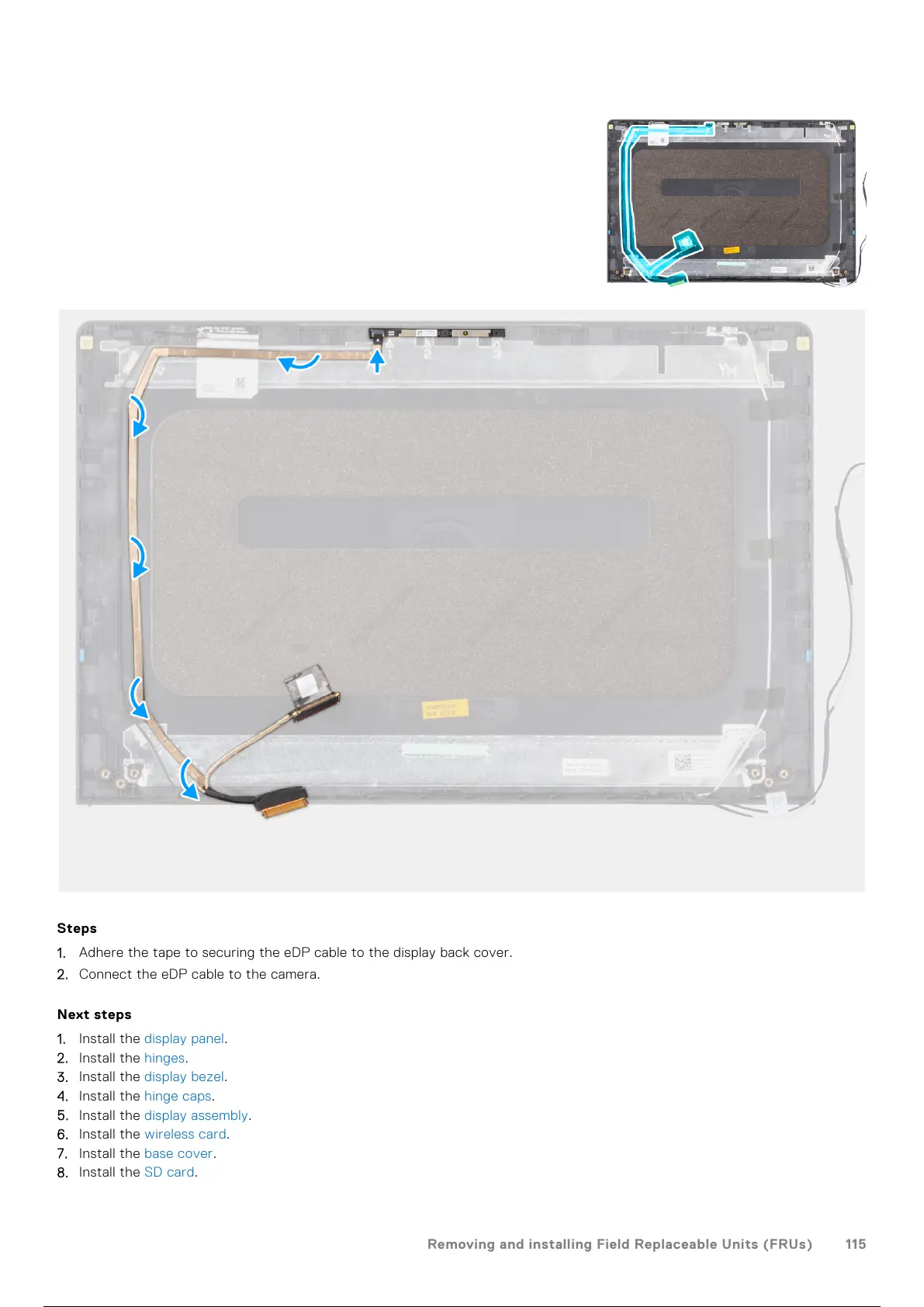

Steps
1. Adhere the tape to securing the eDP cable to the display back cover.
2. Connect the eDP cable to the camera.
Next steps
1. Install the display panel.
2. Install the hinges.
3. Install the display bezel.
4. Install the hinge caps.
5. Install the display assembly.
6. Install the wireless card.
7. Install the base cover.
8. Install the SD card.
Removing and installing Field Replaceable Units (FRUs)
115
