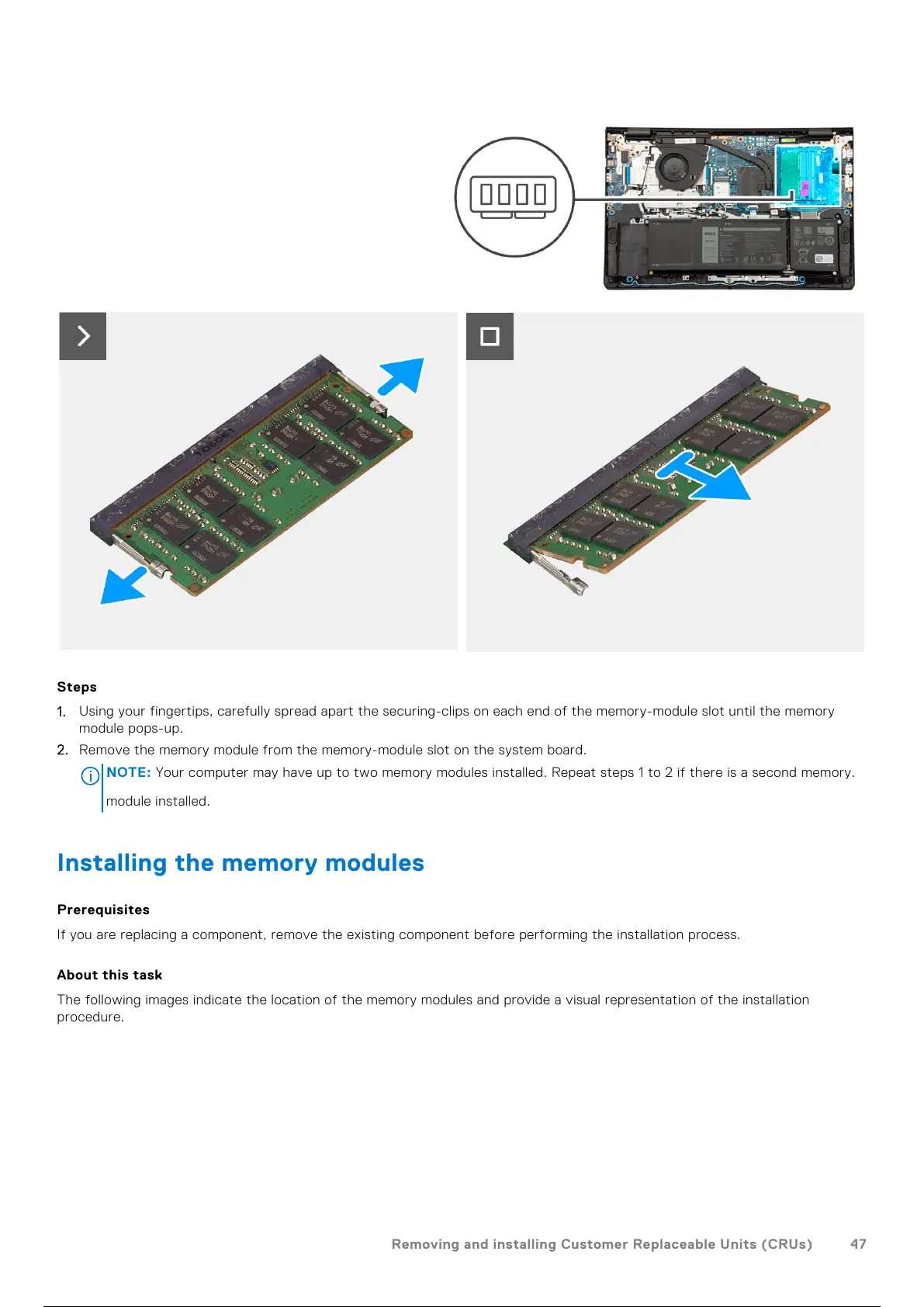

Steps
1. Using your fingertips, carefully spread apart the securing-clips on each end of the memory-module slot until the memory
module pops-up.
2. Remove the memory module from the memory-module slot on the system board.
NOTE:
Your computer may have up to two memory modules installed. Repeat steps 1 to 2 if there is a second memory.
module installed.
Installing the memory modules
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the memory modules and provide a visual representation of the installation
procedure.
Removing and installing Customer Replaceable Units (CRUs)
47
