Steps

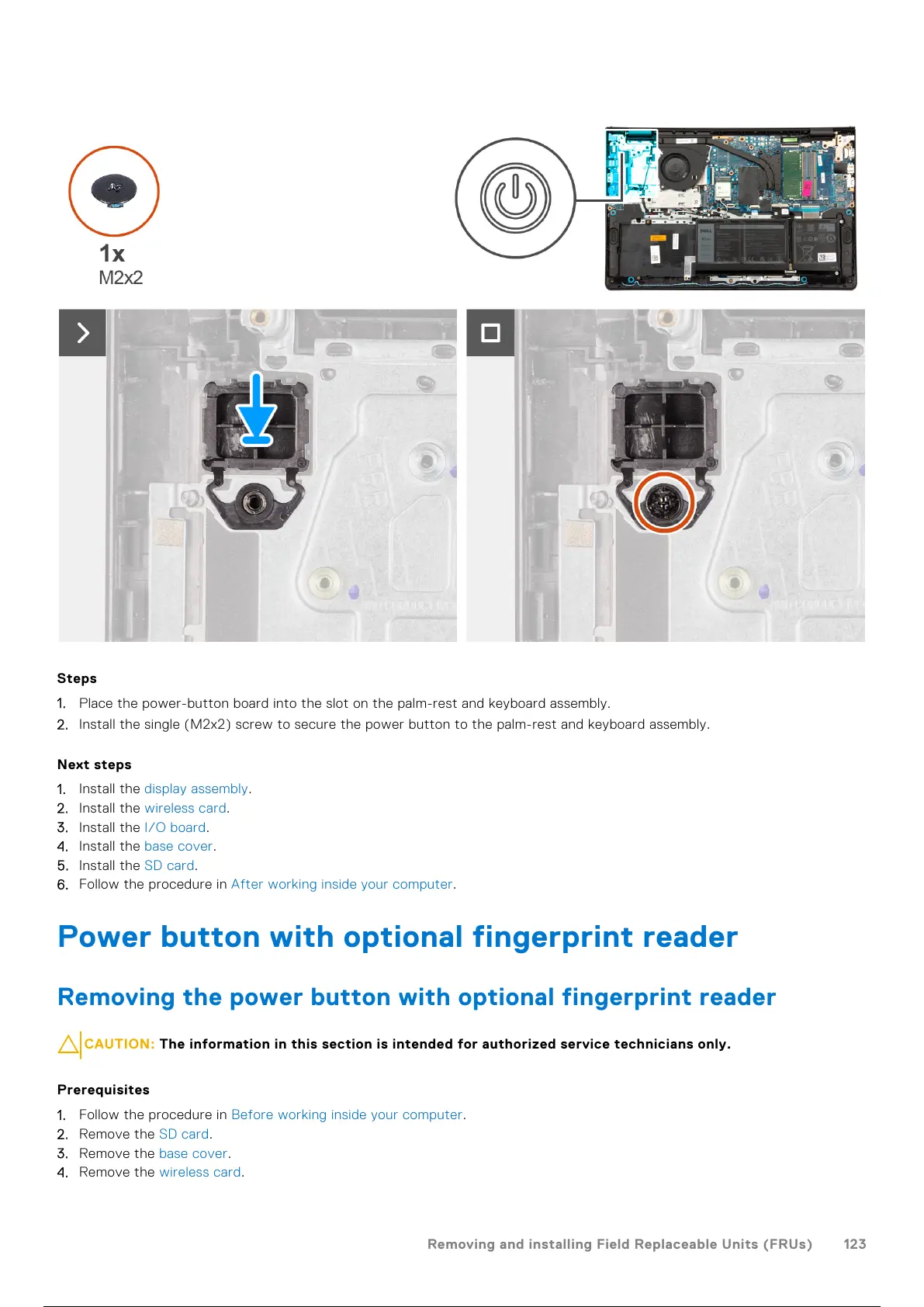

1. Place the power-button board into the slot on the palm-rest and keyboard assembly.
2. Install the single (M2x2) screw to secure the power button to the palm-rest and keyboard assembly.
Next steps
1. Install the display assembly.
2. Install the wireless card.
3. Install the I/O board.
4. Install the base cover.
5. Install the SD card.
6. Follow the procedure in After working inside your computer.
Power button with optional fingerprint reader
Removing the power button with optional fingerprint reader
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the wireless card.
Removing and installing Field Replaceable Units (FRUs)
123
