About this task

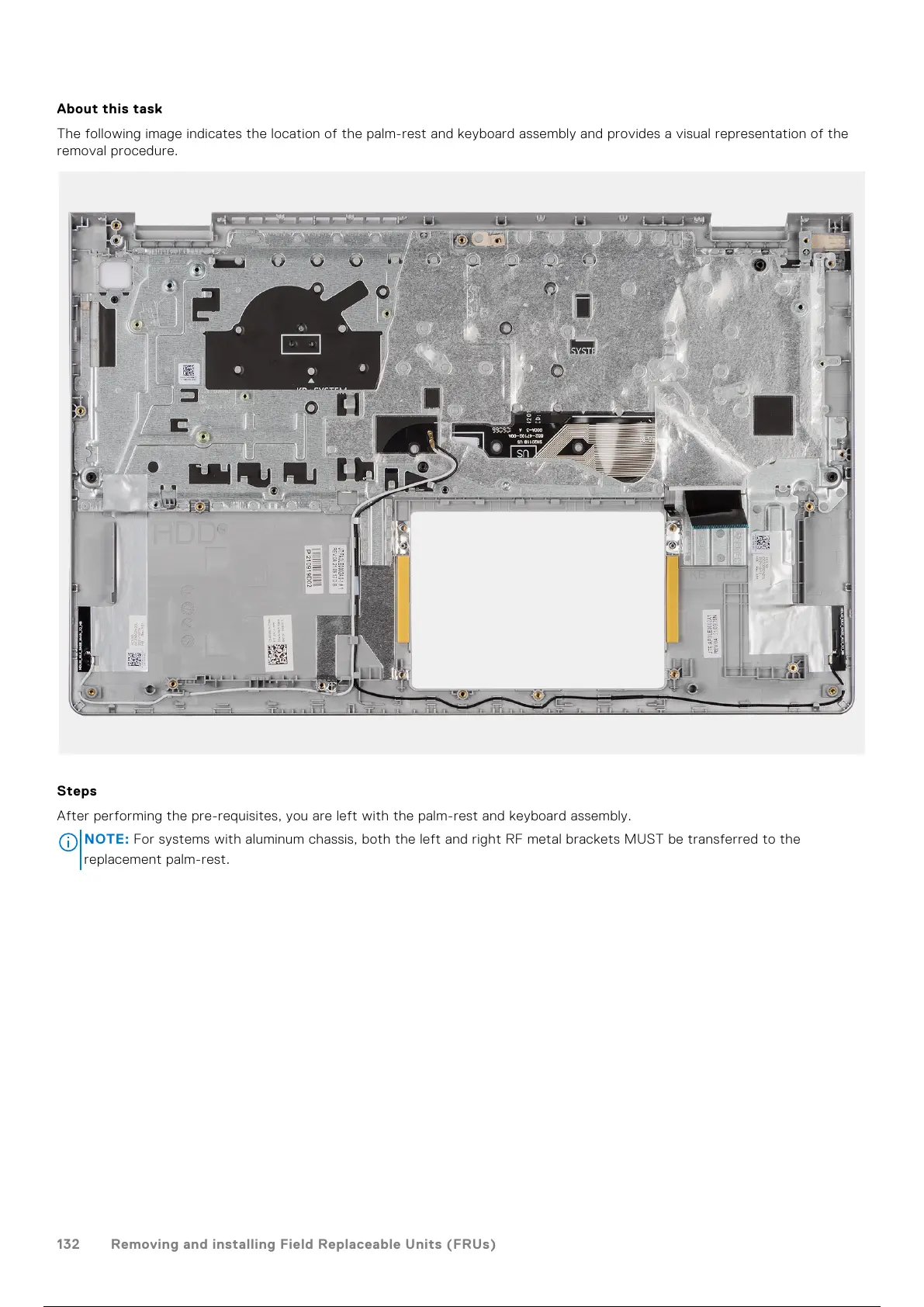

The following image indicates the location of the palm-rest and keyboard assembly and provides a visual representation of the
removal procedure.
Steps
After performing the pre-requisites, you are left with the palm-rest and keyboard assembly.
NOTE:
For systems with aluminum chassis, both the left and right RF metal brackets MUST be transferred to the
replacement palm-rest.
132 Removing and installing Field Replaceable Units (FRUs)
