Steps

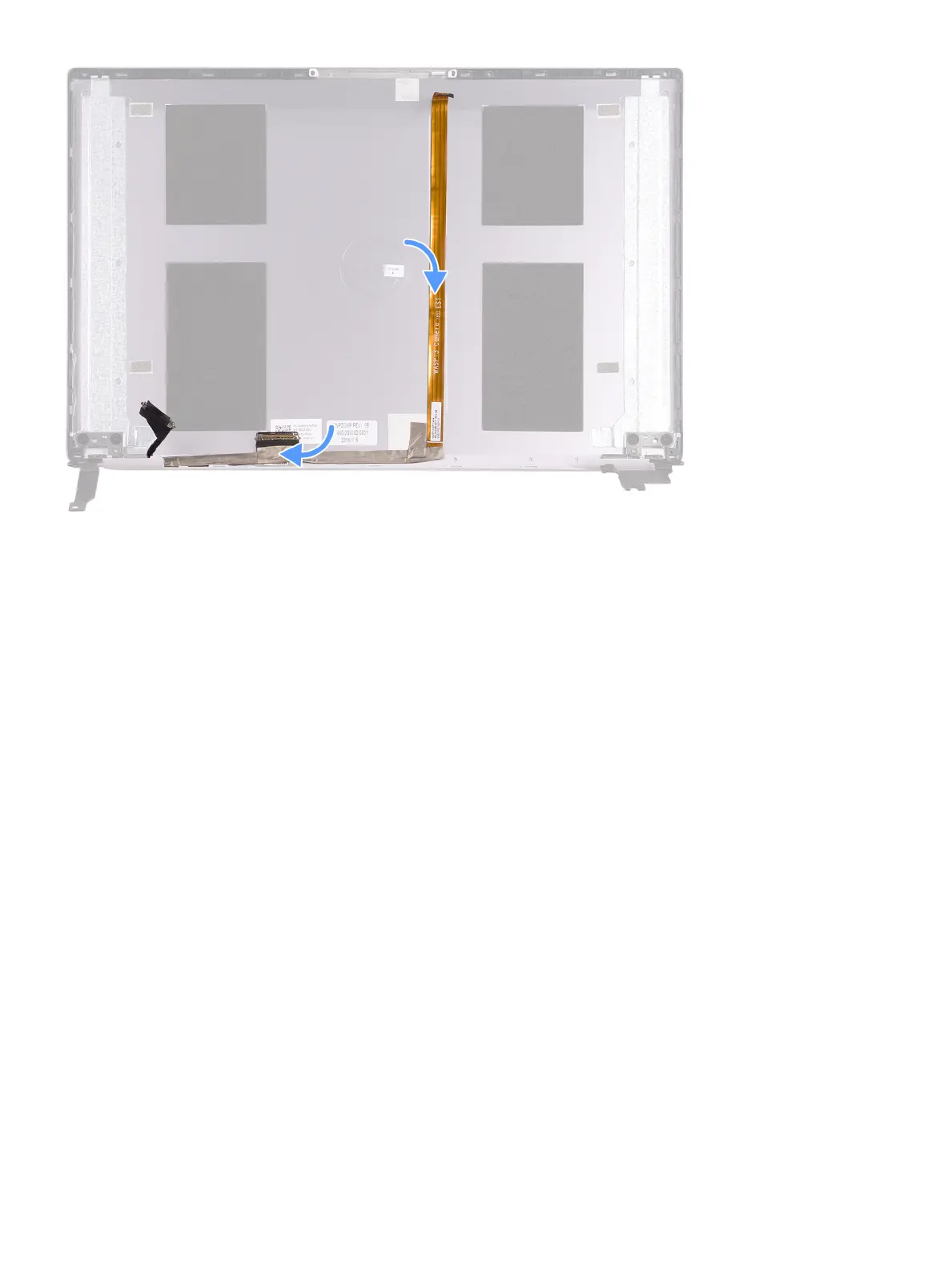

1 Adhere the tape securing the display cable to the back-cover.
2 Adhere the display cable to the display back-cover.
Next steps
1 Install the display bezel.
2 Install the display panel.
3 Install the display assembly.
4 Install the battery.
5 Install the base cover.
6 Follow the procedure in After working inside your computer.
Palm-rest and keyboard assembly
Removing the palm-rest and keyboard assembly
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the battery.
4 Remove the WLAN card.
5 Remove the speakers.
6 Remove the system board.
7 Remove the display assembly.
8 Remove the power button with ngerprint reader or power-button board, whichever applicable.
9 Remove the power-adapter port.
62
Removing and installing components
