16. Thermal module
17. Left Fan
18. Fingerprint module
19. Power board
NOTE: Dell provides a list of components and their part numbers for the original system configuration purchased. These
parts are available according to warranty coverages purchased by the customer. Contact your Dell sales representative for
purchase options.
Base cover
Removing the base cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
About this task
NOTE: Before removing the base cover, ensure that there is no SD card installed in the SD-card slot on your computer.

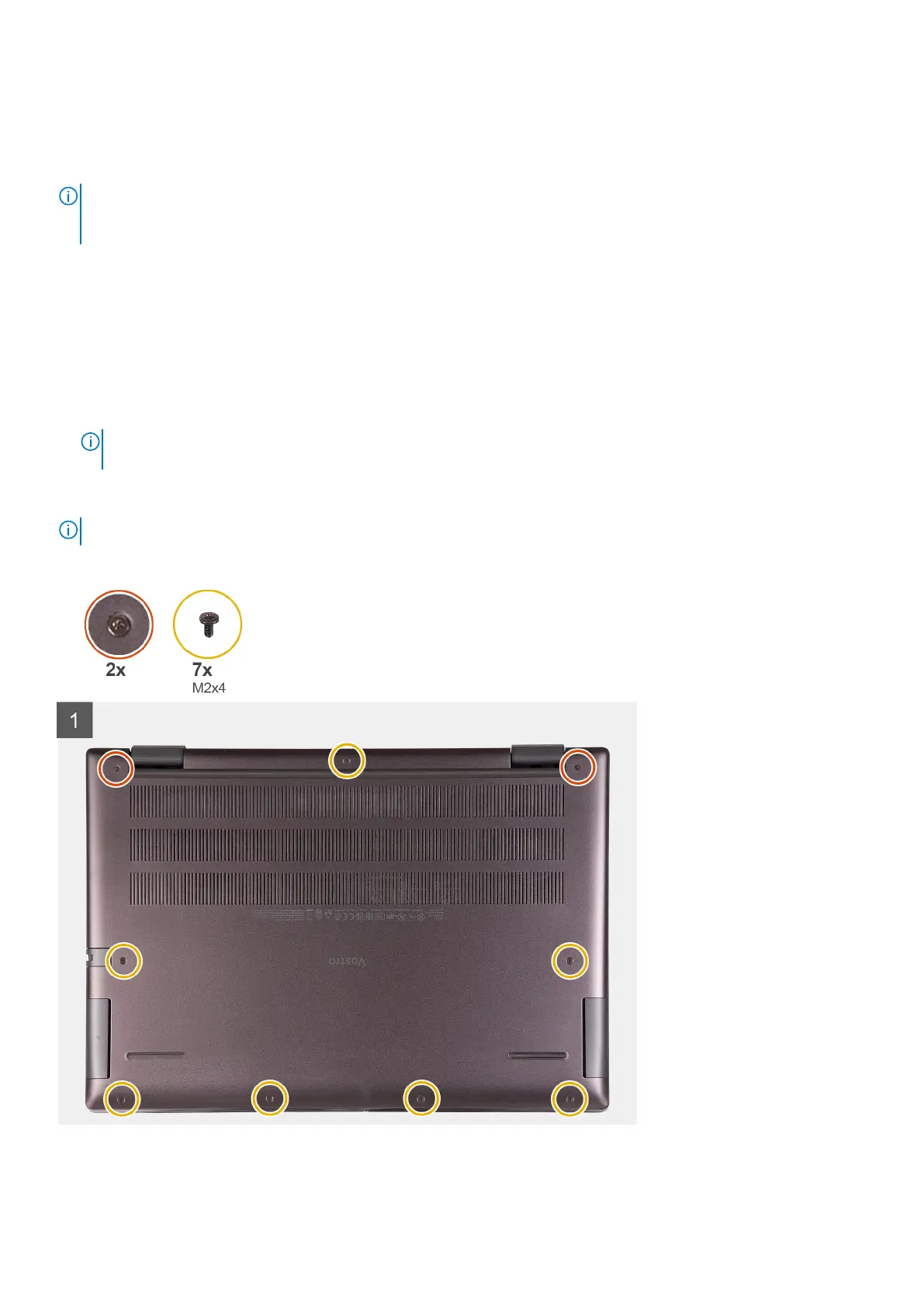

The following image(s) shows the base cover and provides a visual representation of the removal procedure.
Removing and installing components
13
To Next Page
