Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

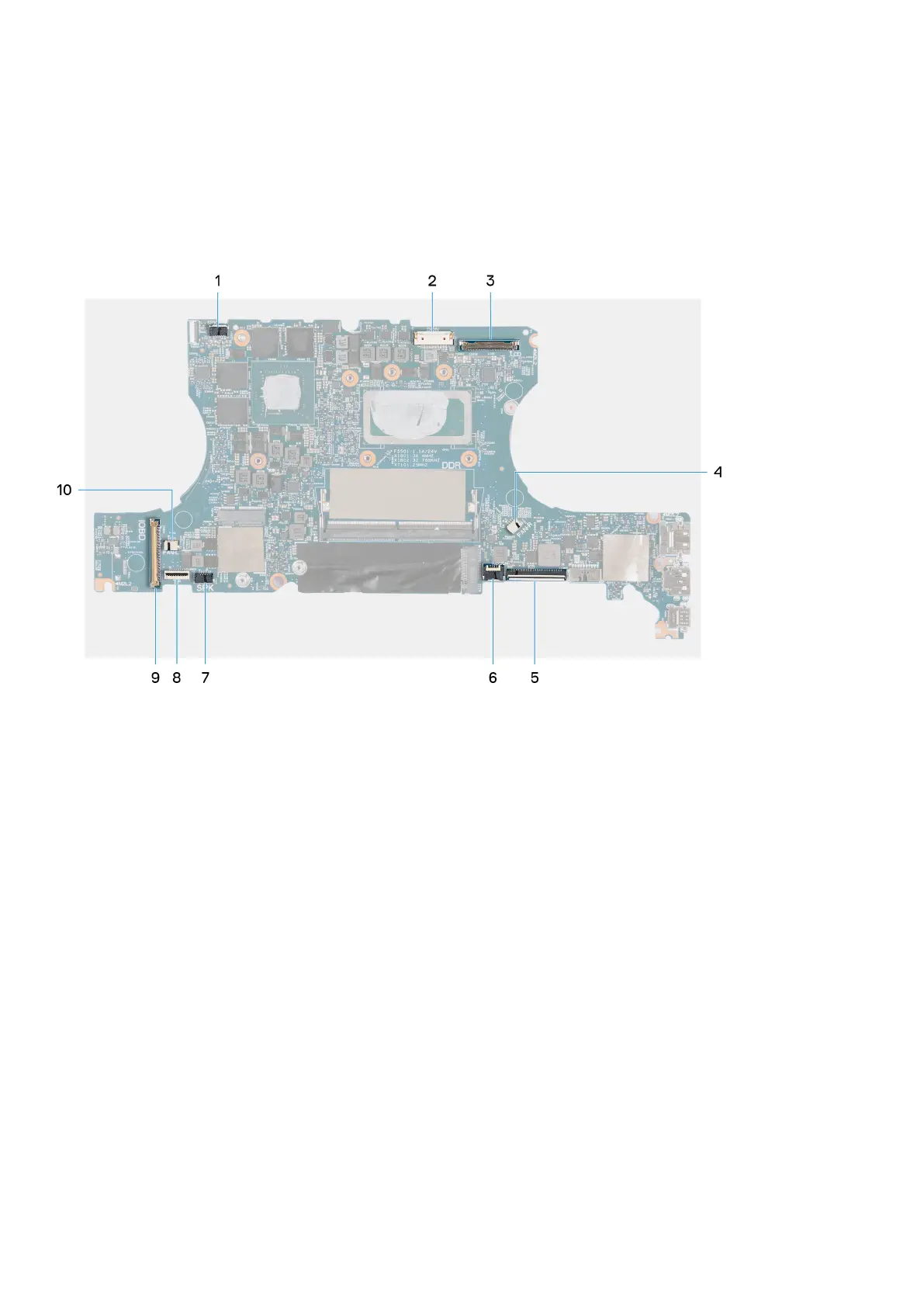

The following image indicates the connectors on your system board.
1. Speaker (tweeters) cable connector
2. Power-cable connector
3. Display-cable connector
4. Right fan cable connector
5. Keyboard-cable connector
6. Keyboard-backlight cable connector
7. Speaker (woofers) cable connector
8. Touchpad-cable connector
9. I/O board-cable connector
10. Left fan cable connector
The following image(s) indicate the location of the system board and provides a visual representation of the installation
procedure.
58
Removing and installing components
