Installing the M.2 2280 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: This procedure applies if you are installing a M.2 2280 solid-state drive.
NOTE: The M.2 card installed on your computer will depend on the configuration ordered. The supported card
configurations on the M.2 card slot are:
ā M.2 2230 solid-state drive + 2230 mounting bracket
ā M.2 2280 solid-state drive
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.

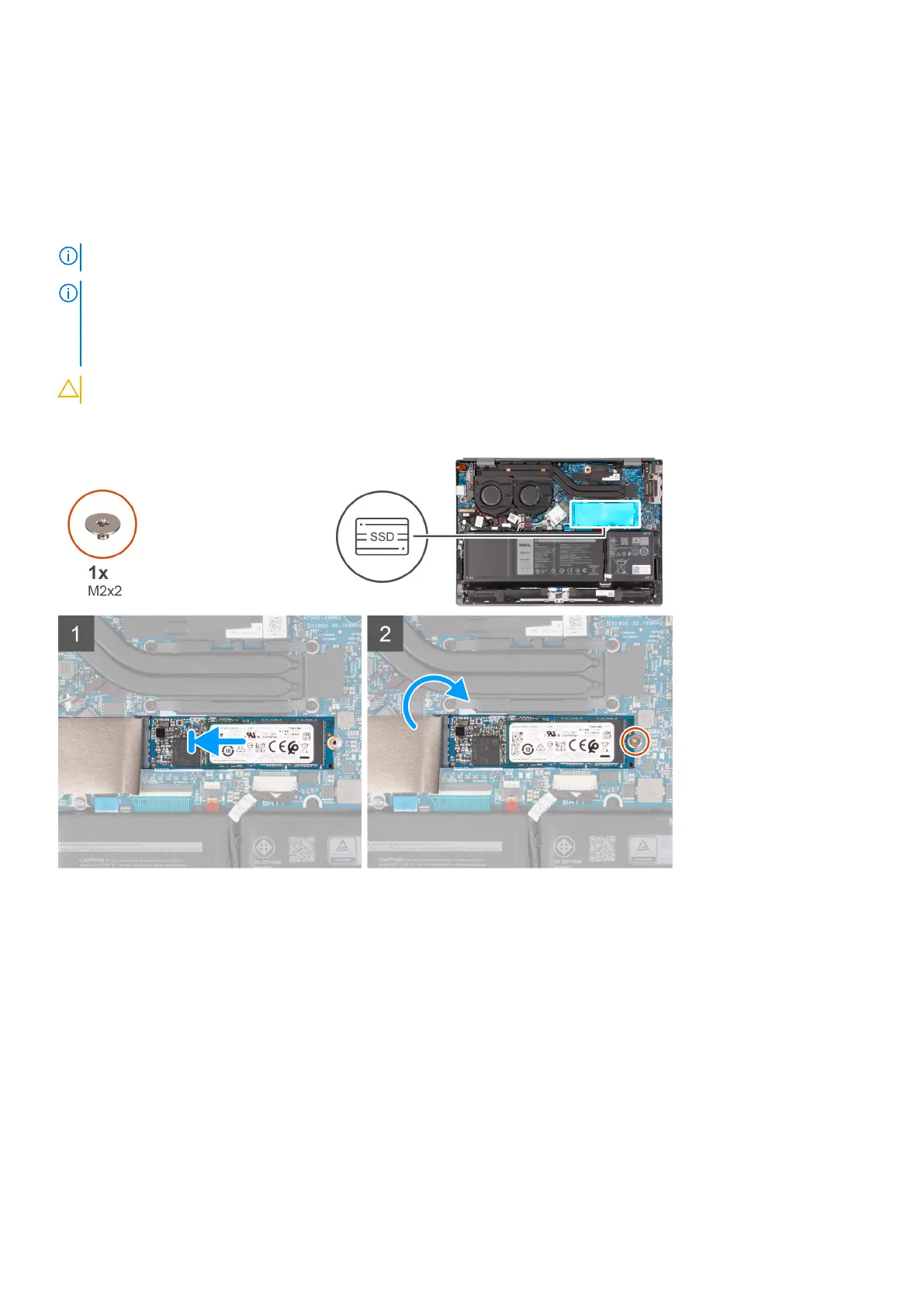

The following image(s) indicate the location of the M.2 2280 solid-state drive and provides a visual representation of the
installation procedure.
Steps
1. Align the notch on the M.2 2280 solid-state drive with the tab on the M.2 solid-state drive slot on the system board.
2. Slide the M.2 2280 solid-state drive into the M.2 solid-state drive slot on the system board.
3. Replace the screw (M2x2) that secures the M.2 2280 solid-state drive to the palm-rest and keyboard assembly.
4. Place the Mylar over the M.2 2280 solid-state drive.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing and installing components
19
