Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Phillips screwdriver #1
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

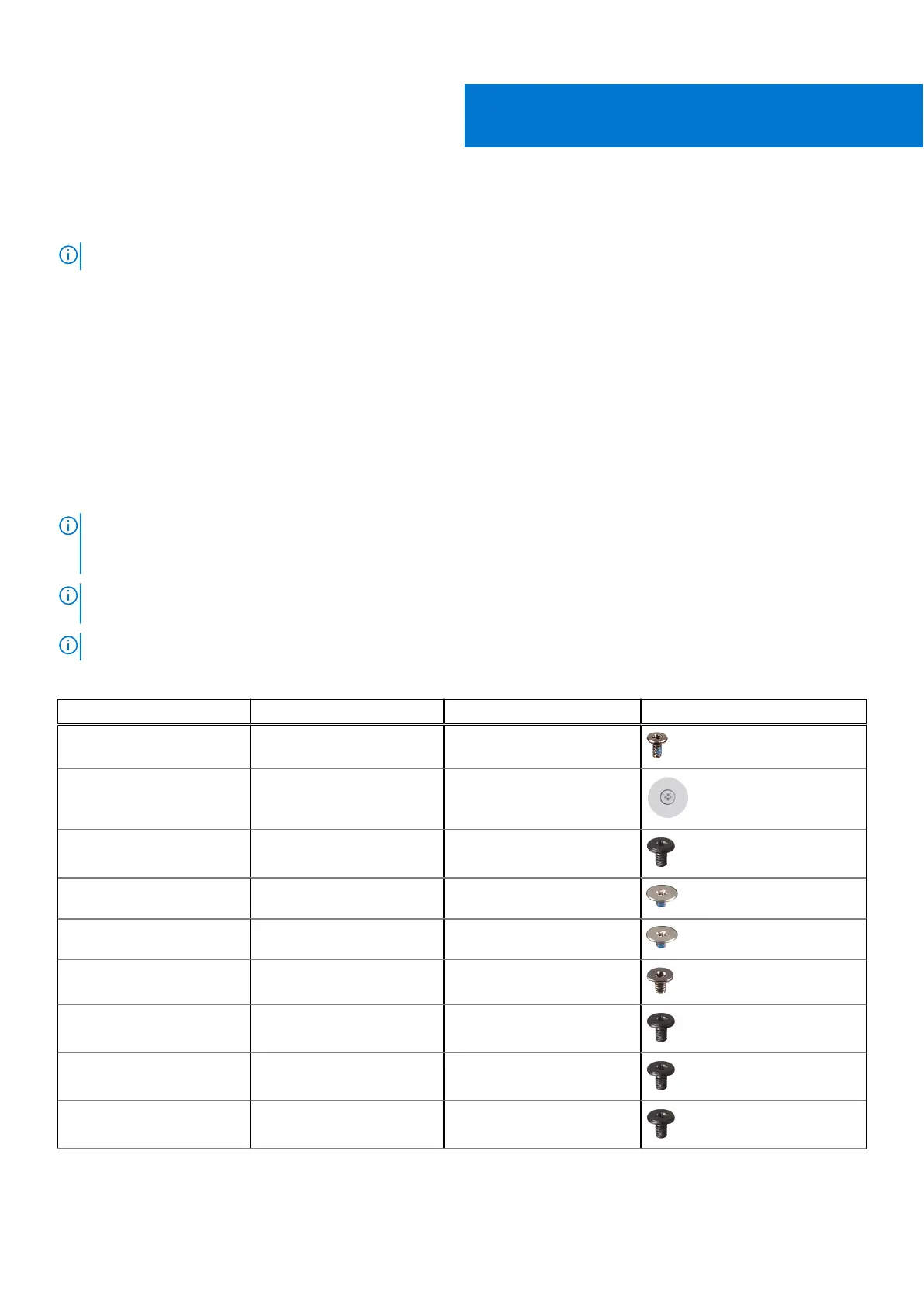

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover M2x4 5
Base cover M2x6 (captive screws) 2
Battery M2x3 5
M.2 2230 solid-state drive M2x2 2
M.2 2280 solid-state drive M2x2 1
Wireless-card bracket M2x3 1
Left fan M2x3 2
Right fan M2x3 2
Right-display hinge M2x3 2
2
Removing and installing components 9
