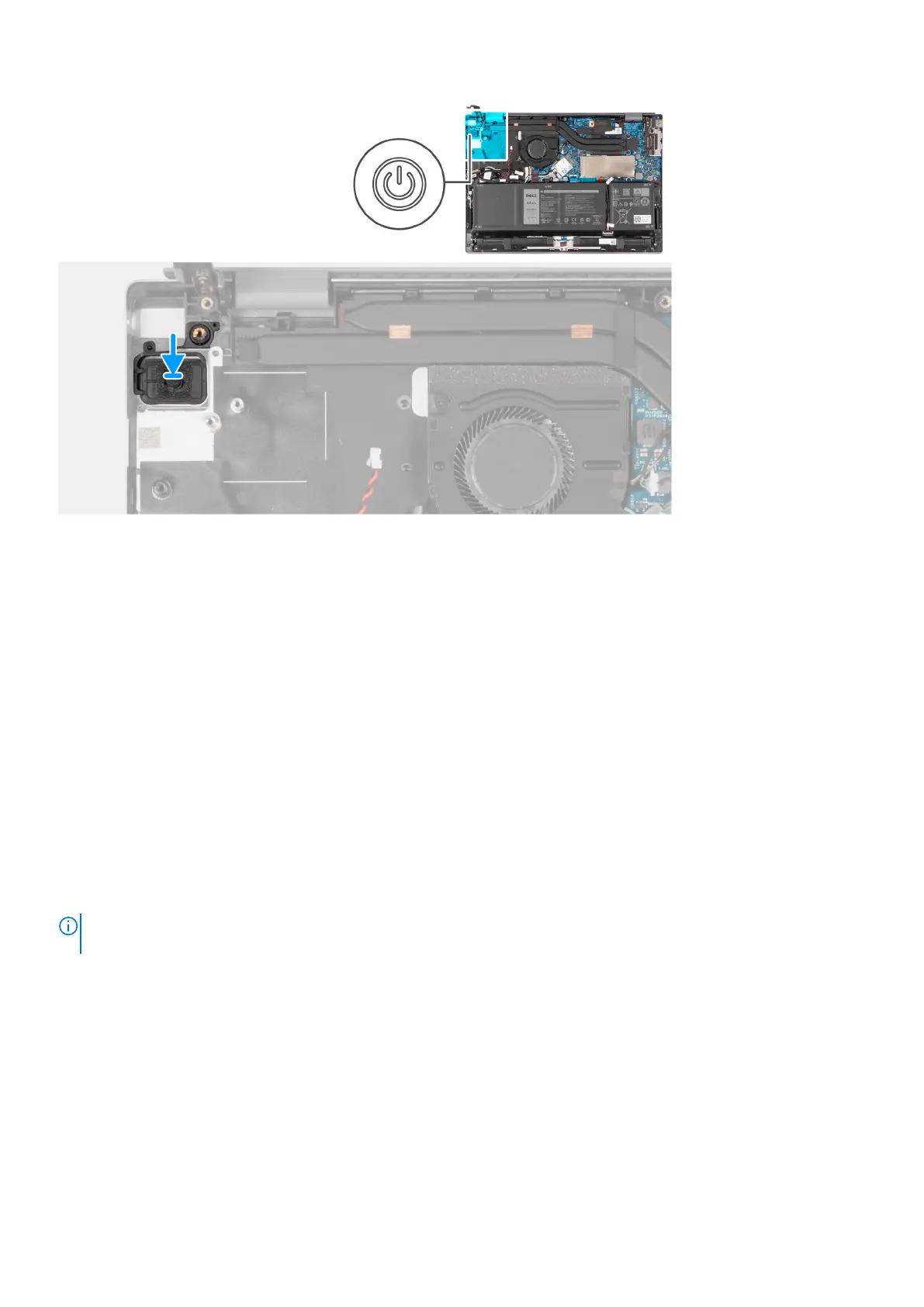

Using the alignment posts, place the power button into the slot on the palm-rest and keyboard assembly.
Next steps
1. Install the I/O board.
2. Install the left fan.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Power button with fingerprint reader
Removing the power-button with fingerprint reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the left fan.
4. Remove the I/O board.
NOTE:
Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
About this task
The following image(s) indicate the location of the power-button with fingerprint reader and provides a visual representation of
the removal procedure.
Removing and installing components
45
