Installing keyboard
NOTE: Insert the keyboard connector through the gap in the palm rest.
NOTE: When installing the keyboard of Latitude 3190 the keyboard FPC must be inserted through the gap carefully at the
top side of the palm rest before securing the keyboard onto the system. Improper reassembly of the keyboard FPC before
replacing the keyboard results in inability to connect the keyboard FPC to the system board or damage to the FPC.
1. Align the keyboard trim with the tabs on the computer, and press it until it clicks into place.

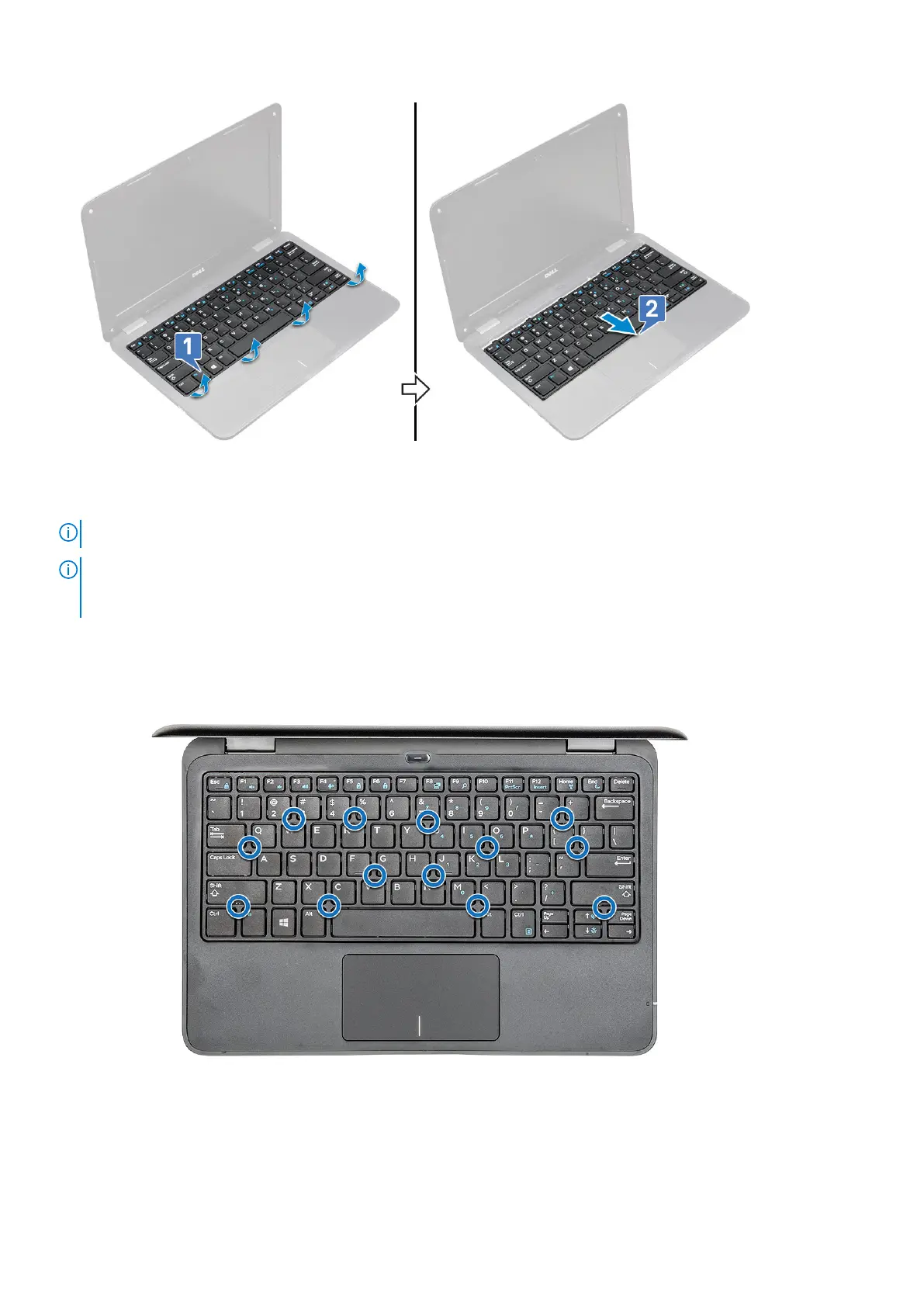

The image shows the press points on the
keyboard.
2. Connect the keyboard cable on the system board.
3. Install the:
a. battery
30
