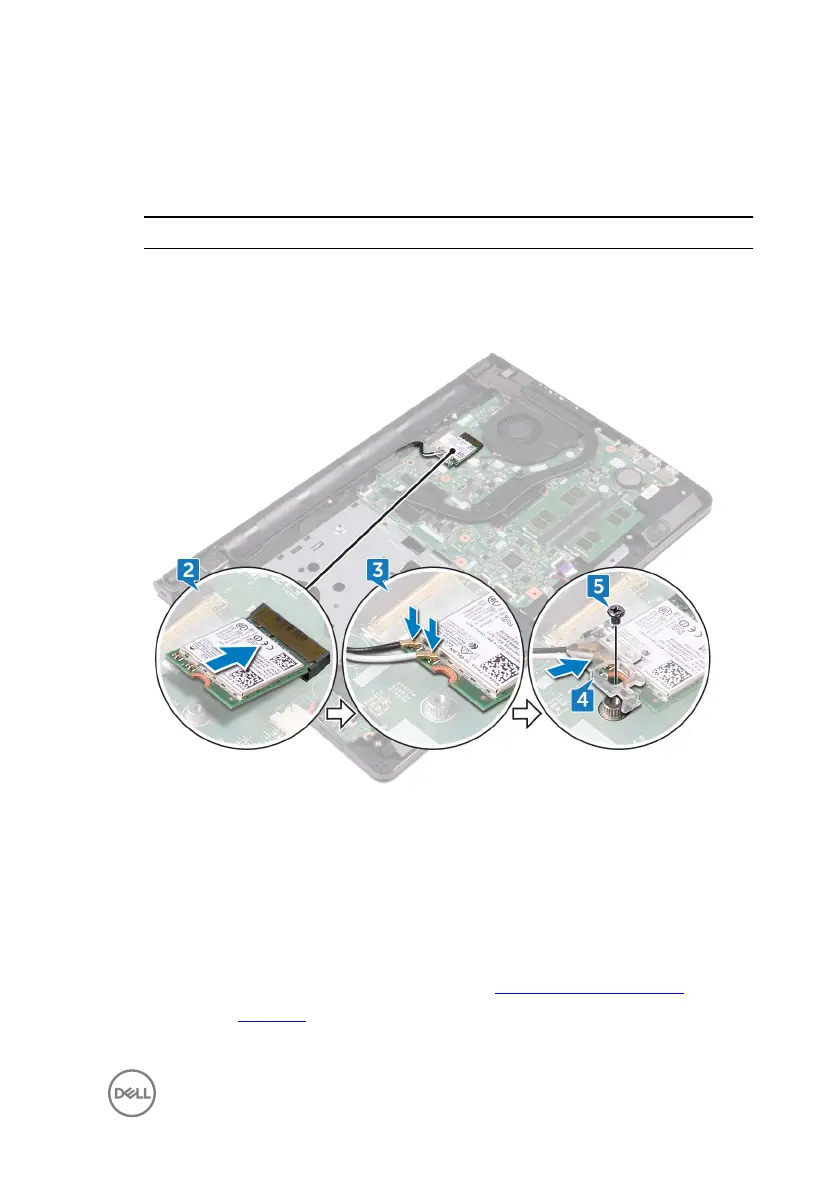

3 Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the wireless
card supported by your computer:
Table 2. Antenna-cable color scheme
Connectors on the wireless card Antenna cable color
Auxiliary (black triangle) Black
Main (white triangle) White
4 Align the screw hole on the wireless-card bracket with the screw hole on the
wireless card and the system board.
5 Replace the screw (M2x3) that secures the wireless-card bracket to the wireless
card and system board.
Post-requisites
1 Follow the procedure from step 2 to step 8 in “Replacing the base cover”.
2 Replace the keyboard.
