Procedure

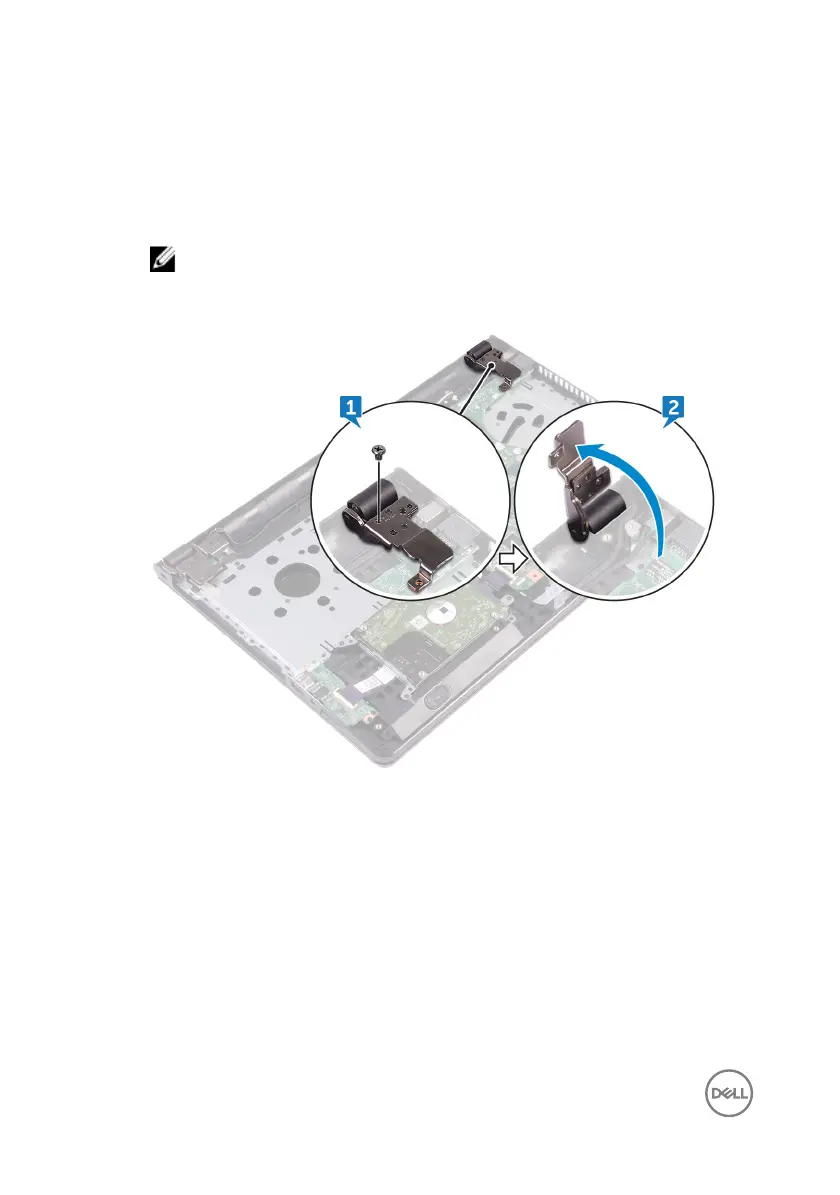

1 Remove the screw (2.5x8) that secure the display hinge to the palm-rest
assembly.
NOTE: These instructions are applicable only for laptops with a non-
touch screen display.
2 Open the hinge to an angle of 90 degrees.
3 Peel the tape that secures the display cable to the system board.
4 Open the latch and disconnect the display cable from the system board.
5 Open the latch and disconnect the power-button board cable from the system
board.
6 Open the latch and disconnect the hard-drive cable from the system board.
7 Open the latch and disconnect the I/O-board cable from the system board.
8 Disconnect the speaker cable from the system board.
