Dell P93F User Manual

Steps

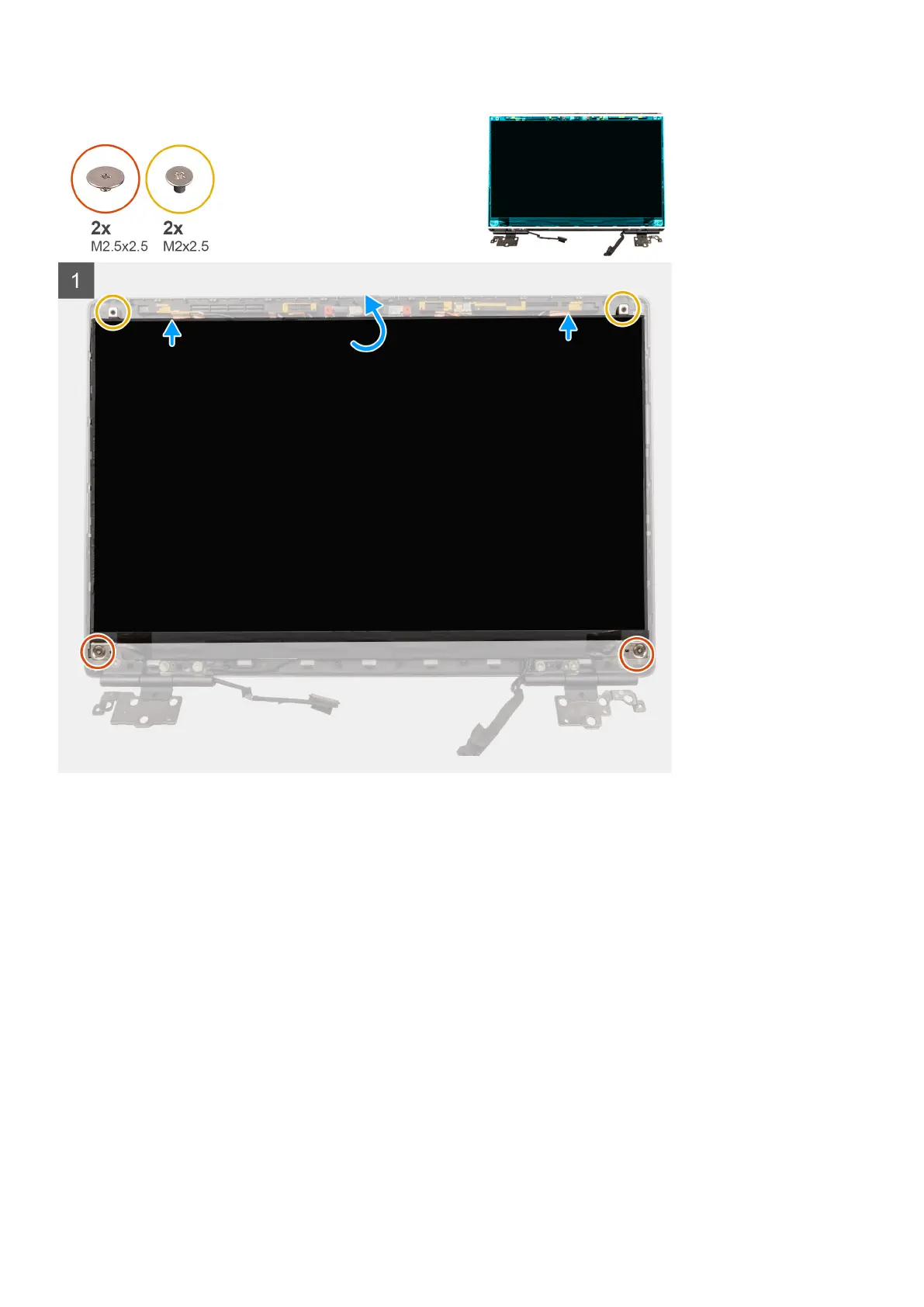

1. Connect the display cable to the connector on the back of the display panel and lock the display cable connector.
2. Adhere the adhesive rubber strip to cover the display cable connector.
3. Adhere the transparent tape and conductive tape above the rubber strip to cover the display cable connector.
4. Align the display panel with the tabs on the display assembly.
5. Replace the two (M2.5X2.5) and two (M2x2.5) screws to secure the display panel to the display assembly.
Next steps
1. Install the display bezel.
2. Install the display assembly.
3. Install the middlecap.
4. Install the speakers.
5. Install the system board.
6. Install the inner frame.
7. Install the heat-sink assembly.
8. Install the GPU card.
9. Install the GPU power cable.
10. Install the SD card reader.
11. Install the keyboard.
Removing and installing components
103

Dell P93F Specifications

General

Brand	Dell
Model	P93F
Category	Laptop
Language	English
