23. Remove the display panel.
24. Remove the camera shutter cap.
About this task

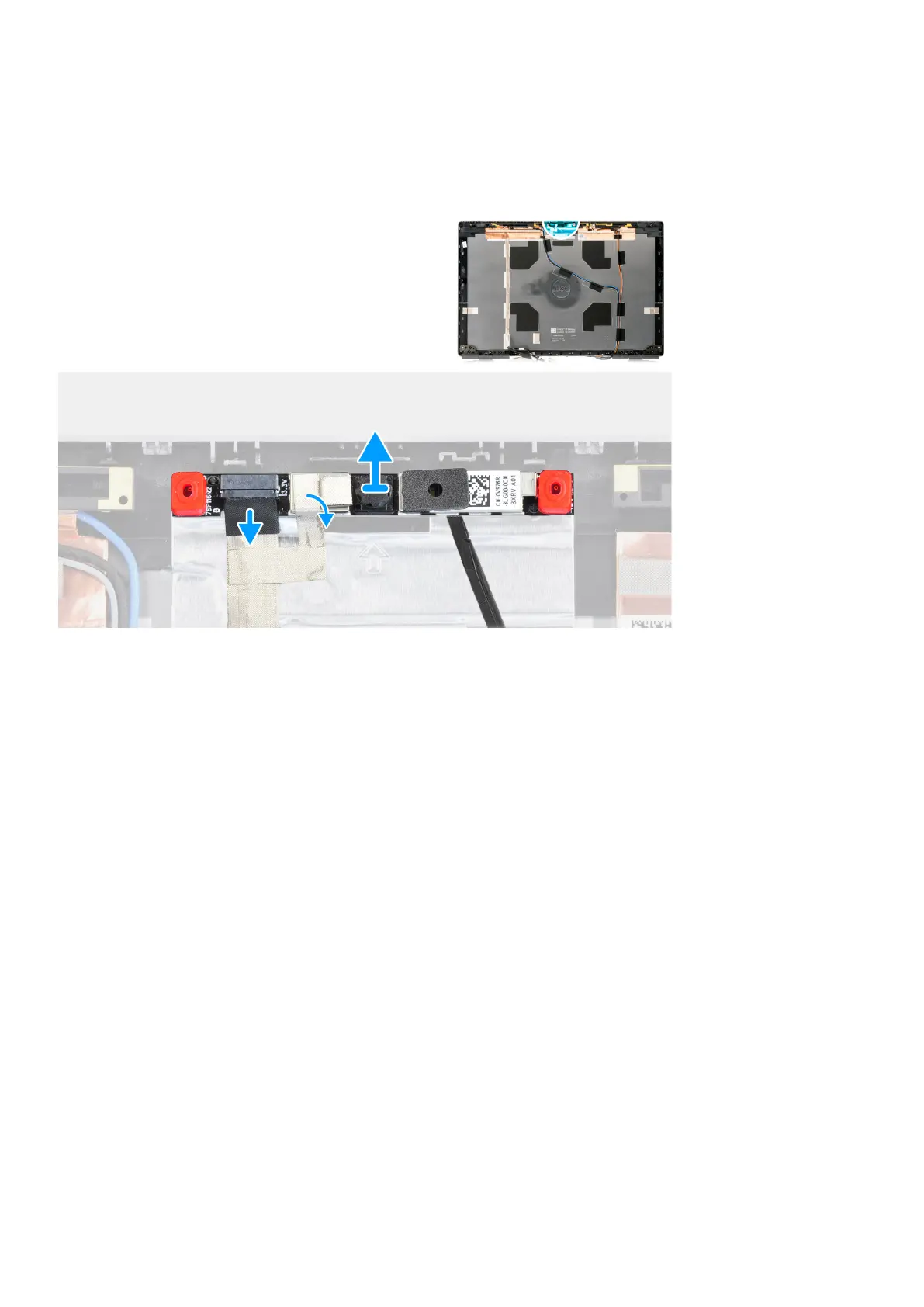

The figure indicates the location of the camera and provides a visual representation of the removal procedure.
Steps
1. Peel the adhesive tape that covers the camera module.
2. Disconnect the display cable from the camera module.
3. Gently pry the camera shutter cap from the top edge of the camera shutter and remove it from the display back cover.
4. Gently pry the camera module from the display back cover.
Installing the camera
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the camera and provides a visual representation of the installation procedure.
Removing and installing components
109
