Installing System Components 53
3
Remove the front drive bezel. See "Removing the Front Drive Bezel" on
page 49.
4
Disconnect the power and data cables from the diskette drive. See
Figure 3-6.
5
Slide the lever on the sliding plate in the direction of the arrow. See
Figure 3-6.
6
Hold the lever in position and slowly pull the drive out of the bay.

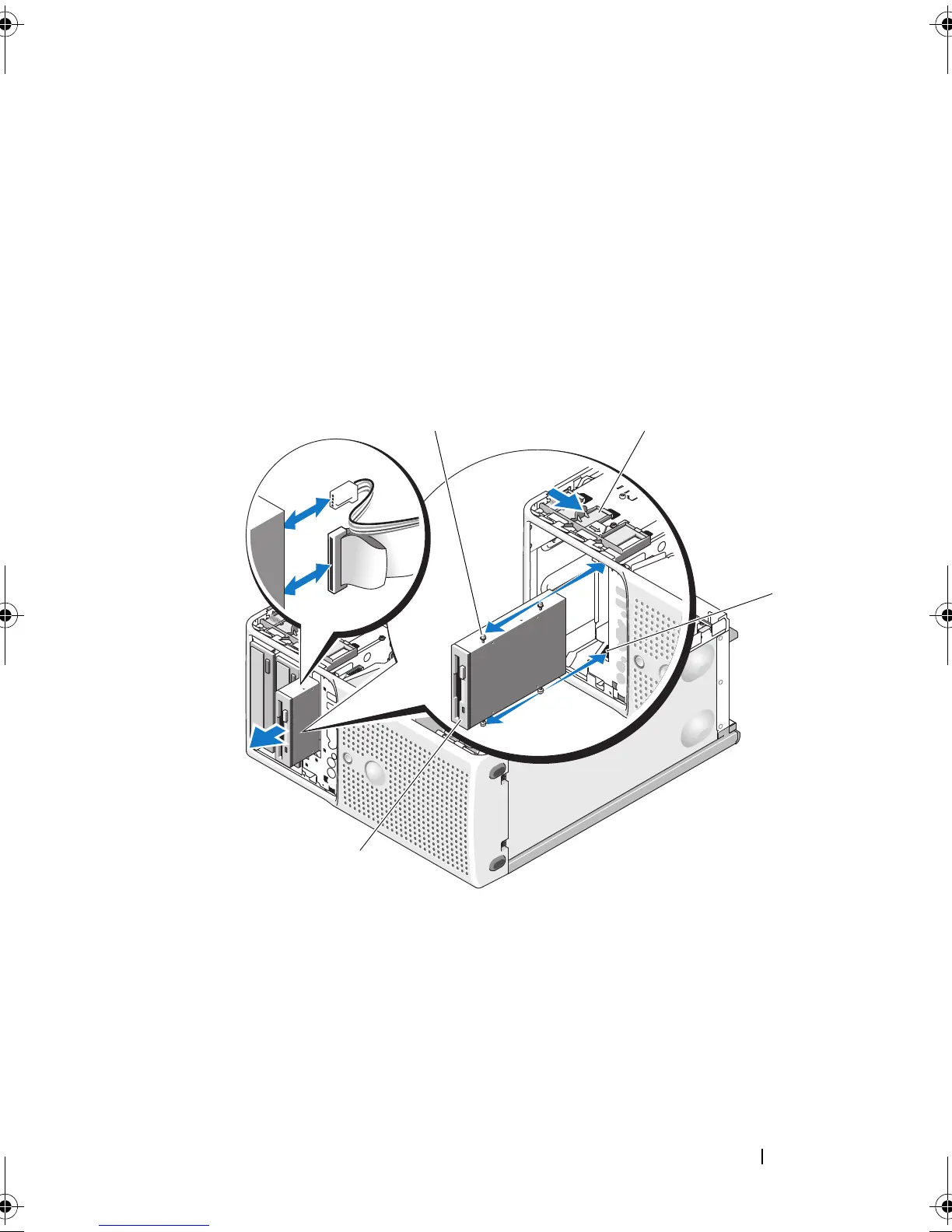

Figure 3-6. Removing or Installing a Diskette Drive
7
If you are permanently removing the drive, replace the 3.5-inch insert on
front drive bezel. See "Replacing an Insert on the Front Drive Bezel" on
page 50.
If you are replacing the diskette drive, see "Installing a Diskette Drive" on
page 54.
1 sliding plate 2 drive bay screw slots
3 diskette drive 4 diskette drive shoulder screw
