Dell Precision 5540 User Manual

Speaker
Removing the Speakers
Steps
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. base cover
b. battery

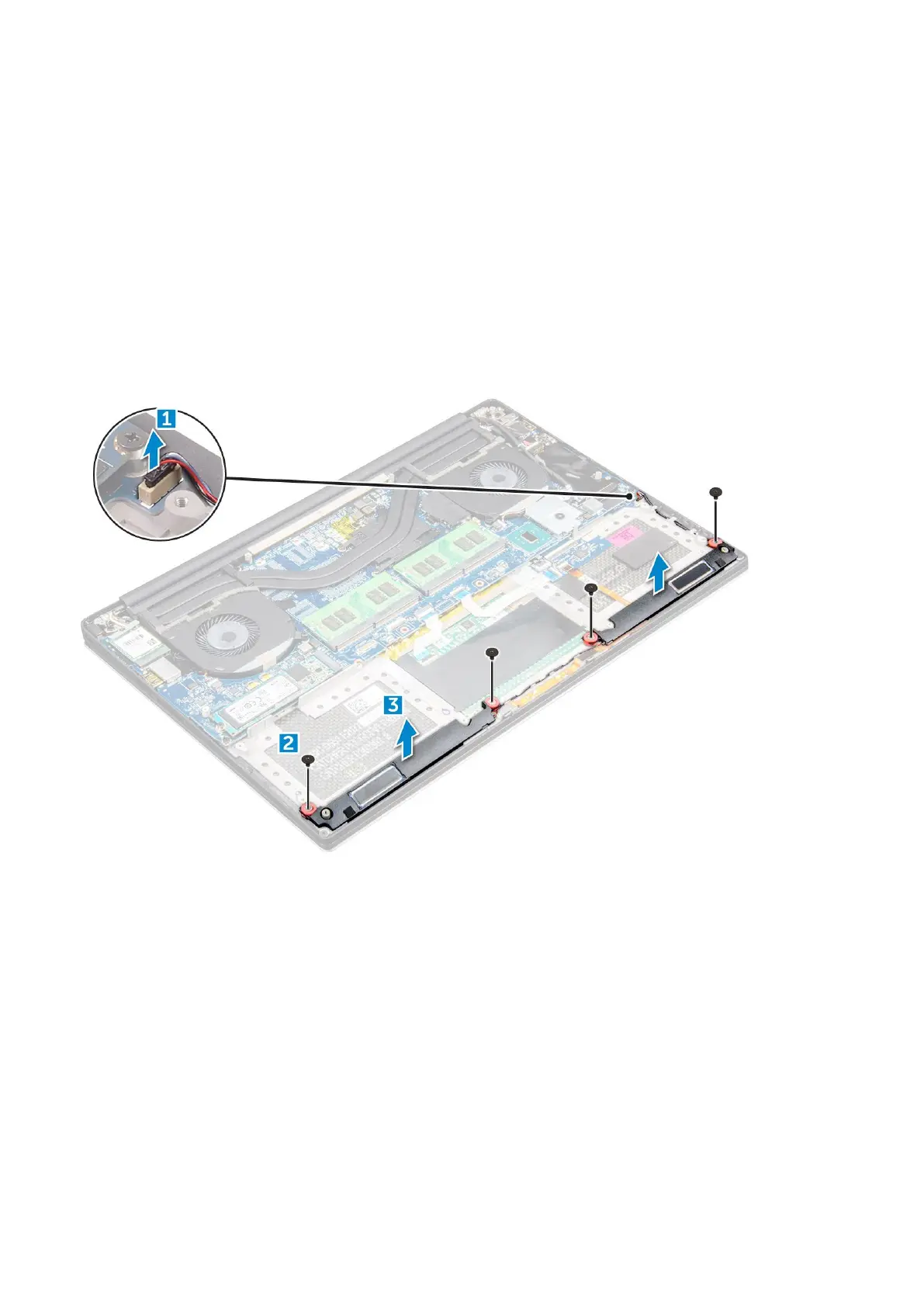

3. Perform the following steps to remove the speaker:
a. Disconnect the speaker cable from the system board [1].
b. Remove the M2x2 (4) screws that secure the speakers to the computer [2].
c. Lift the speakers, along with the speaker cable, off the computer [3].
Installing the Speakers
Steps
1. Using the alignment posts, place the speakers on the palm-rest assembly.
2. Replace the M2x2 (4) screws that secure the speakers to the palm-rest assembly.
3. Route the speaker cables through the routing guides on the palm-rest assembly.
4. Connect the speaker cable to the system board.
5. Install the:
a. battery
b. base cover
6. Follow the procedures in After Working Inside Your Computer.
24
Disassembly and reassembly

Dell Precision 5540 Specifications

General

Graphics	NVIDIA Quadro T1000 or T2000
Processor	Intel Core i5, i7, i9, or Intel Xeon
Display	15.6" FHD (1920x1080) or UHD (3840x2160)
Memory	Up to 64GB DDR4
Storage	Up to 4TB PCIe SSD
Operating System	Windows 10 Pro or Ubuntu
Weight	Starting at 1.78 kg (3.9 lbs)
Battery	97Whr or 56Whr
Ports	HDMI 2.0, SD card reader
Wireless	Bluetooth 5.0
Camera	720p HD camera
Audio	Stereo speakers with MaxxAudio Pro
