Dell Precision 5540 User Manual

Installing the Display Assembly
Steps

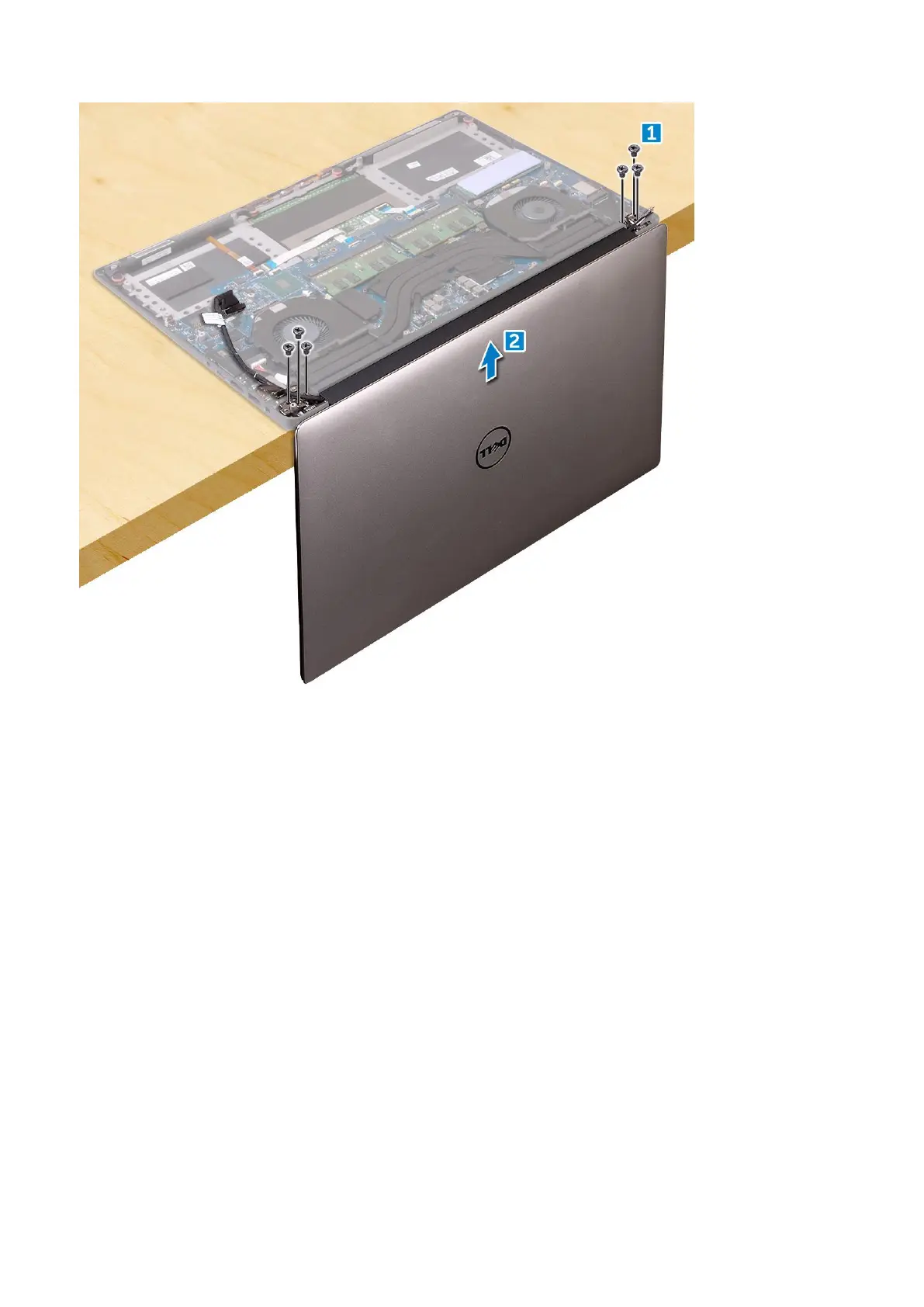

1. Place the palm-rest assembly at the edge of the table with the speakers facing away from the edge.
2. Align the screw holes on the palm-rest assembly with the screw holes on the display hinges.
3. Replace the M2.5 x 5 (6) screws that secure the display hinges to the palm-rest assembly.
4. Route thetouchscreen cable through the routing guides on the fan.
5. Connect thetouchscreen cable and display cable to the system board.
6. Replace the screw (2) that secures the display-cable bracket to the system board.
7. Install the:
a. Battery
b. Base cover
8. Follow the procedures in After Working Inside Your Computer
Antenna cover
Removing antenna
Steps
1. Follow the procedures in Before Working Inside Your Computer.
Disassembly and reassembly
41

Dell Precision 5540 Specifications

General

Graphics	NVIDIA Quadro T1000 or T2000
Processor	Intel Core i5, i7, i9, or Intel Xeon
Display	15.6" FHD (1920x1080) or UHD (3840x2160)
Memory	Up to 64GB DDR4
Storage	Up to 4TB PCIe SSD
Operating System	Windows 10 Pro or Ubuntu
Weight	Starting at 1.78 kg (3.9 lbs)
Battery	97Whr or 56Whr
Ports	HDMI 2.0, SD card reader
Wireless	Bluetooth 5.0
Camera	720p HD camera
Audio	Stereo speakers with MaxxAudio Pro
