Dell S320 User Manual

Connecting Your Projector 13
2
Connecting Your Projector
CAUTION: Before you begin any of the procedures in this section, follow the
Safety Instructions as described on page 11.

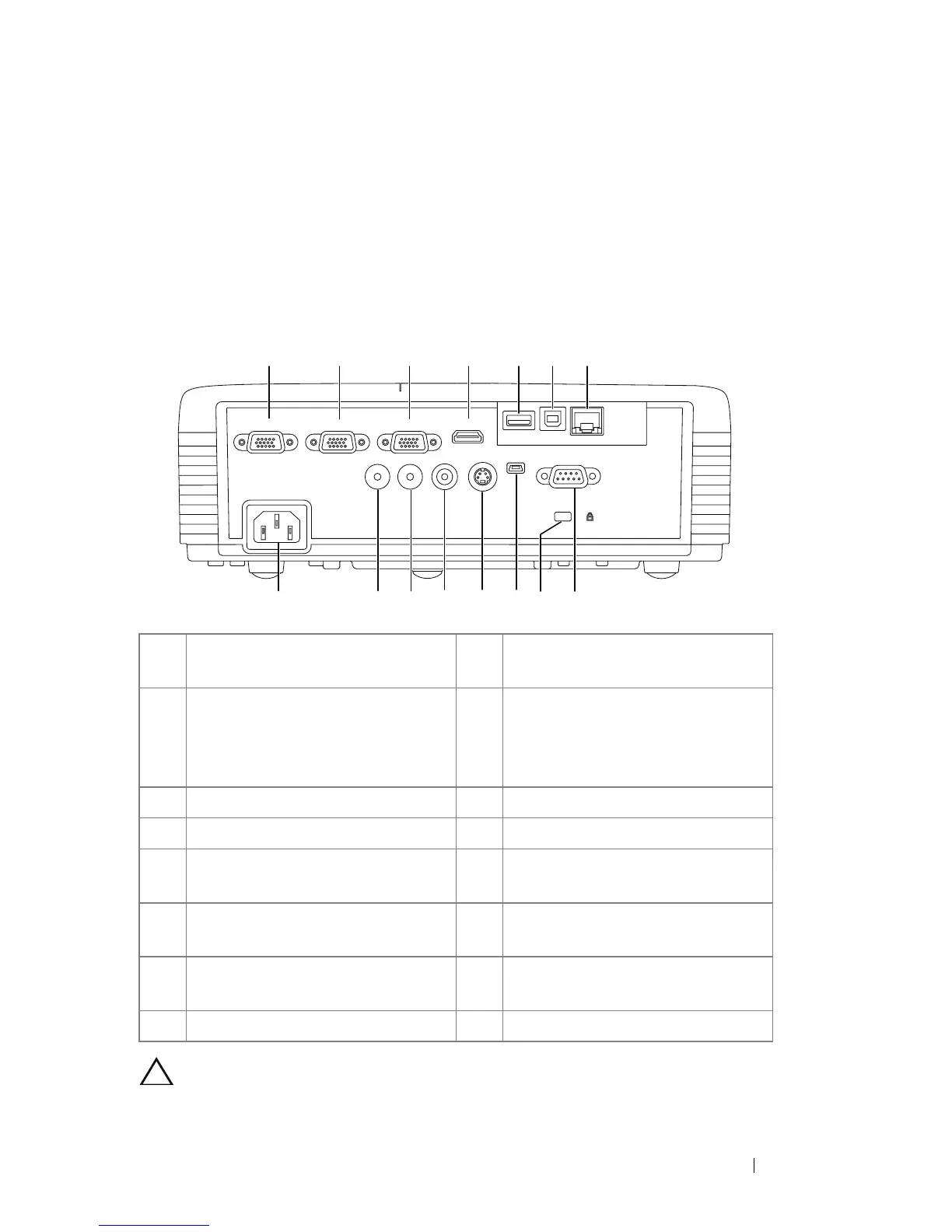

1 VGA output (monitor loop
through) connector
9 Security cable slot
2 VGA-A input (D-sub) connector 10 Mini USB (Mini Type B)
connector for remote mouse,
Interactive function, and
firmware upgrade
3 VGA-B input (D-sub) connector 11 S-Video connector
4 HDMI connector 12 Composite Video connector
5 USB Type A connector for USB
Viewer (embedded for S320wi)
13 Audio output connector
6 USB Type B connector for USB
Display (embedded for S320wi)
14 Audio input connector
7 RJ45 connector (embedded for
S320wi)
15 Power cord connector
8 RS232 connector
VGA-A INVGA-OUT VGA-B IN HDMI
Audio-In
Audio-Out
Composite S-Video
Mini-USB
RS232
RJ45
DOUSBUSB-A
3 4 5 6 7
9
1 2
8
15 121314 1011

Dell S320 Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.4 - 3.82 m
Projection technology	DLP
Supported aspect ratios	16:9
Contrast ratio (typical)	2200:1
Screen size compatibility	31.45 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-40 - 37 °
Offset	115 %
Throw ratio	0.62:1
Zoom capability	Yes
Focal length range	- mm
Lamp power	240 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720i
Analog signal format system	NTSC, NTSC 4.43, NTSC J, NTSC M, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1
RMS rated power	5 W
Number of built-in speakers	1
HDMI version	1.4a
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Noise level	35 dB
Noise level (economic mode)	31 dB
Placement	Desktop
Product type	Short throw projector
Product color	White
Market positioning	Short throw
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	305 W
Power consumption (PowerSave)	15 W
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	0 - 80 %

Weight and Dimensions

Depth	220 mm
Width	288 mm
Height	92 mm
Weight	3180 g
