Dell U2715Hc User Manual

About Your Monitor | 19

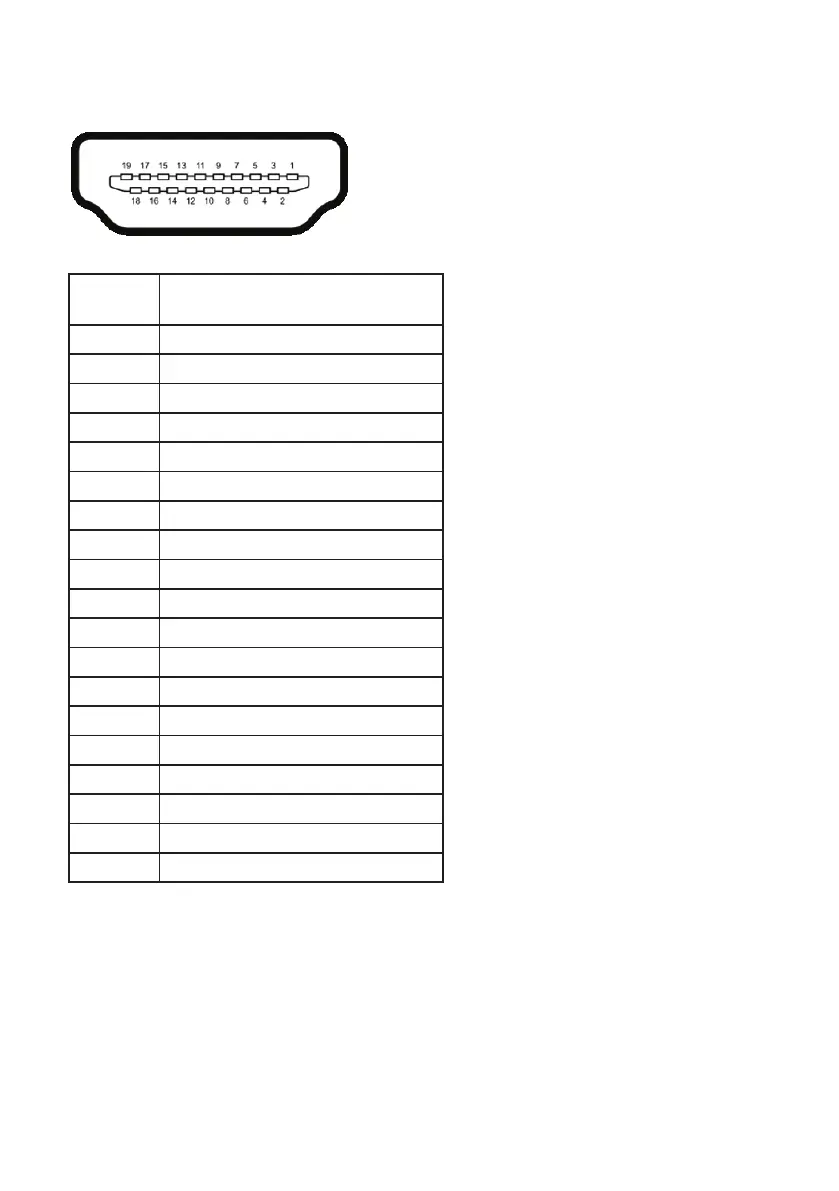

MHL Connector
Pin
Number
19-pin Side of the Connected
Signal Cable
1 TMDS DATA 2+
2 TMDS DATA 2 SHIELD
3 TMDS DATA 2-
4 TMDS DATA 1+
5 GND
6 TMDS DATA 1-
7 MHL+
8 TMDS DATA 0 SHIELD
9 MHL-
10 TMDS CLOCK+
11 GND
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 GND
18 VBUS (+5V, 900mA maximum)
19 CBUS
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification
Data (EDID) using Display Data Channel (DDC) protocols so the system can configure
itself and optimize the monitor settings. Most monitor installations are automatic,
you can select different settings if desired. For more information about changing the
monitor settings, see Operating the Monitor.

Dell U2715Hc Specifications

General

Screen Size	27 inches
Resolution	2560 x 1440 (QHD)
Panel Type	IPS
Aspect Ratio	16:9
Refresh Rate	60 Hz
Brightness	350 cd/m²
VESA Mount	100 x 100 mm
Color Gamut	99% sRGB
Contrast Ratio	1000:1
Connectivity	HDMI, DisplayPort, Mini DisplayPort, USB 3.0
Viewing Angle	178° (H) / 178° (V)
Color Support	16.7 million colors
Response Time	8 ms (gray to gray)
