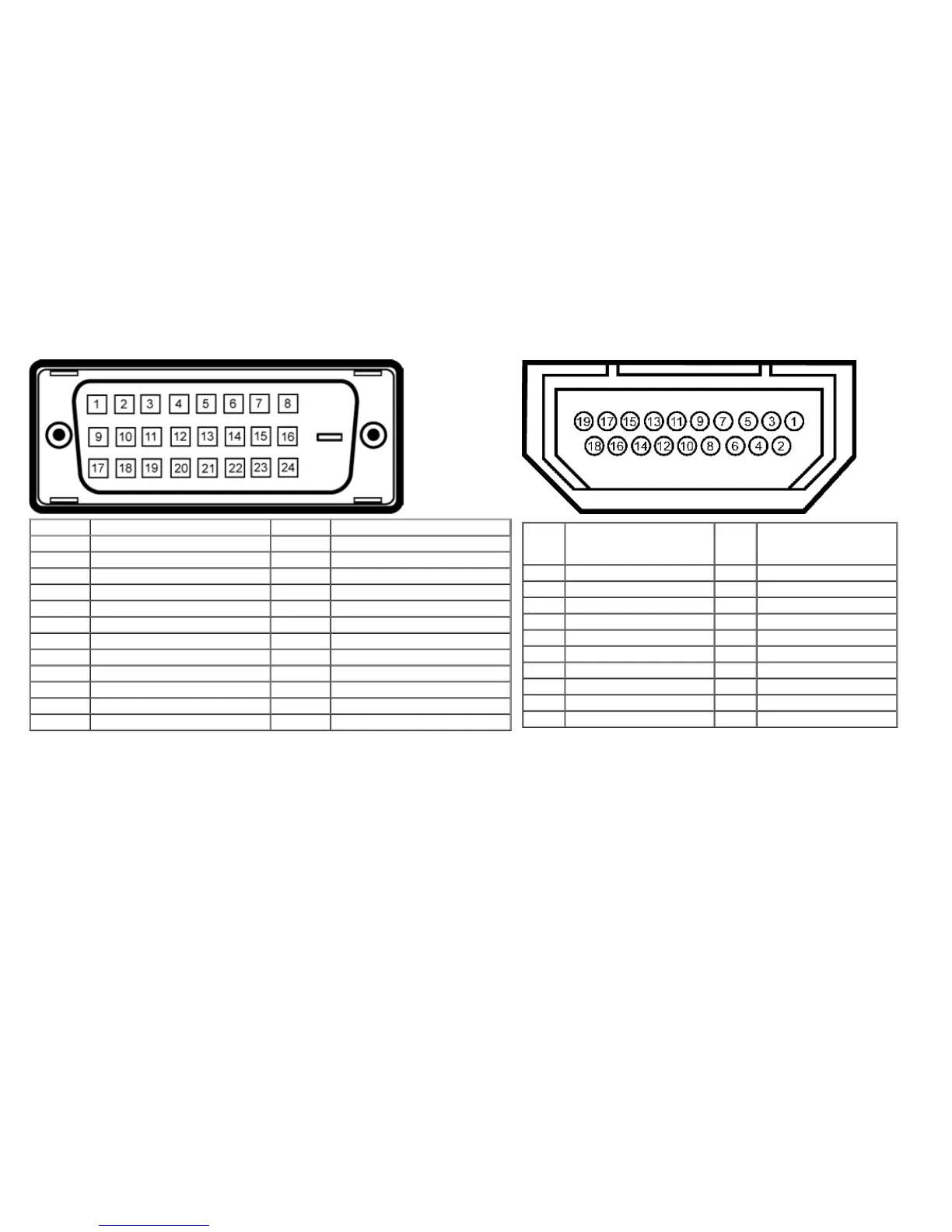

Pin Assignments

DVI Connector

19-pin HDMI Connector

Pin Number 24-pin Side of the monitor connector Pin Number 24-pin Side of the monitor connector

1 TMDS RX2- 13 Floating

2 TMDS RX2+ 14 +5 V/+3.3 V power

3 TMDS Ground 15 Self test

4 Floating 16 Hot Plug Detect

5 Floating 17 TMDS RX0-

6 DDC Clock 18 TMDS RX0+

7 DDC Data 19 TMDS Ground

8 Floating 20 Floating

9 TMDS RX1- 21 Floating

10 TMDS RX1+ 22 TMDS Ground

11 TMDS Ground 23 TMDS Clock+

12 Floating 24 TMDS Clock-

Number

19-pin Side of the monitor

connector (Cable not

included)

Number

19-pin Side of the monitor

connector (Cable not

included)

1 TMDS DATA 2+ 11 TMDS CLOCK SHIELD

2 TMDS DATA 2 SHIELD 12 TMDS CLOCK-

3 TMDS DATA 2- 13 Floating

4 TMDS DATA 1+ 14 Floating

5 TMDS DATA 1 SHIELD 15 DDC CLOCK (SDA)

6 TMDS DATA 1- 16 DDC DATA (SDA)

7 TMDS DATA 0+ 17 GROUND

8 TMDS DATA 0 SHIELD 18 +5 V POWER

9 TMDS DATA 0- 19 HOT PLUG DETECT

10 TMDS CLOCK
