Wall Mounting (Optional)

(Screw dimension: M4 x 10 mm).

Refer to the instructions that come with the VESA-compatible base mounting kit.

1. Place the monitor panel on a soft cloth or cushion on a stable flat table.

2. Remove the stand.

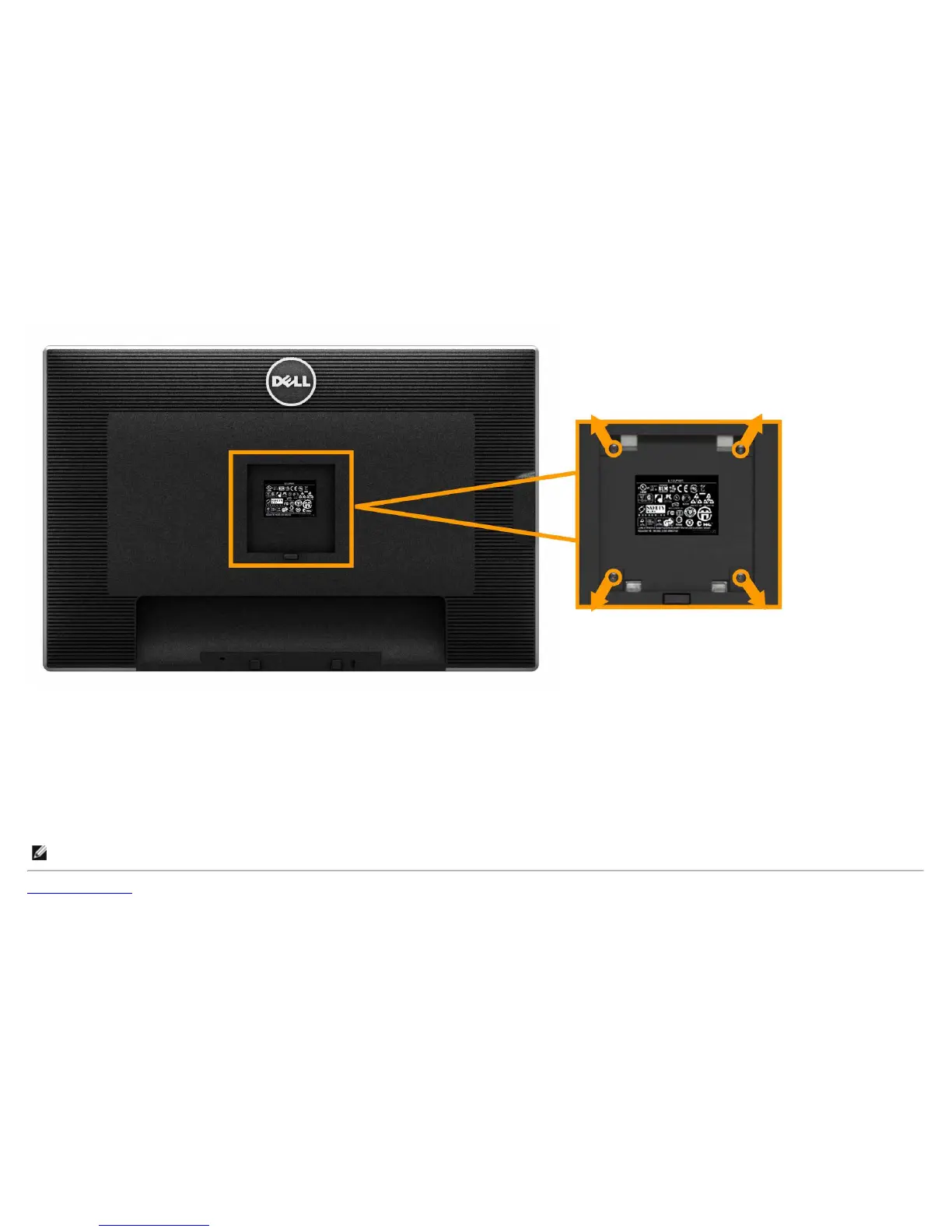

3. Use a screwdriver to remove the four screws securing the Back Cover.

4. Attach the mounting bracket from the wall mounting kit to the LCD.

5. Mount the LCD on the wall by following the instructions that came with the wall mounting kit.

NOTE:

For use only with UL Listed Wall Mount Bracket with minimum weight/load bearing capacity of 7.35 kg.

Back to Contents Page
