Dell UltraSharp 24 User Manual

Operating the monitor | 57

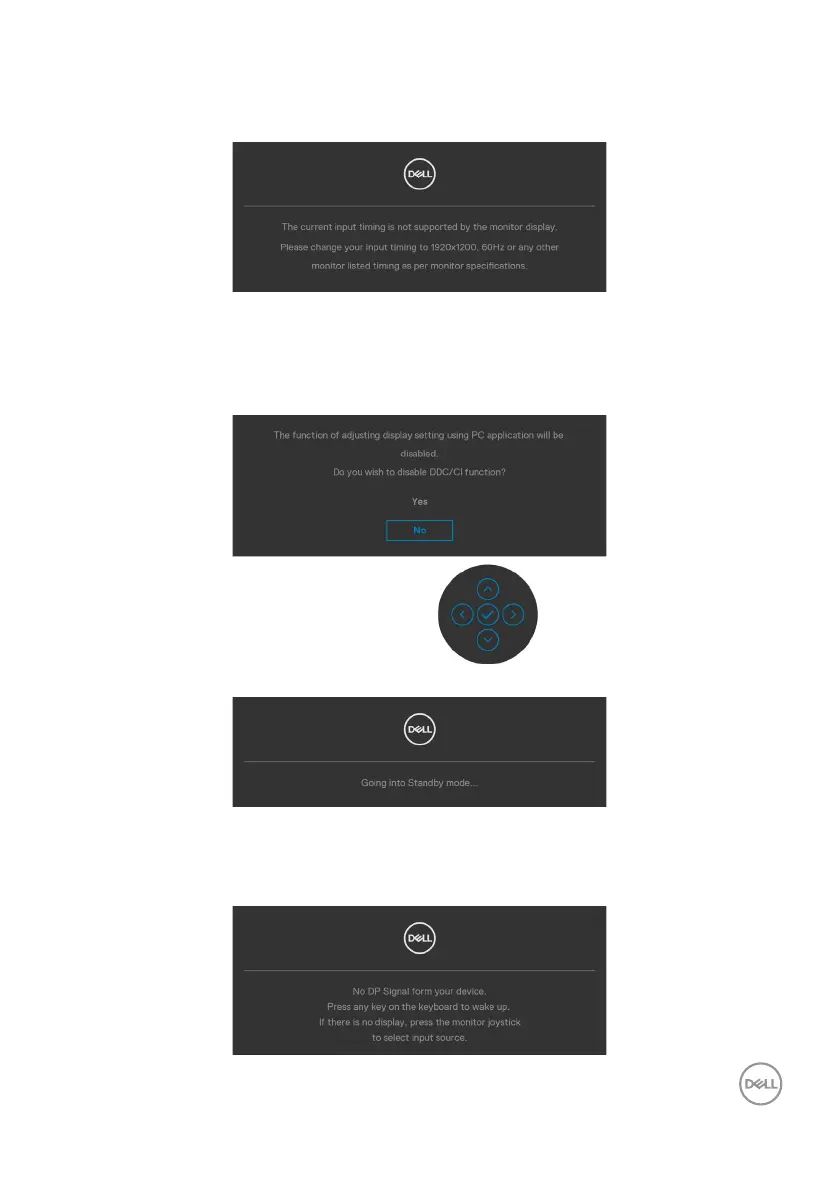

OSD warning messages
When the monitor does not support a particular resolution mode, you can see the
following message:
This means that the monitor cannot synchronize with the signal that it is receiving
from the computer. See Monitor Specifications for the Horizontal and Vertical
frequency ranges addressable by this monitor. Recommended mode is 1920 x 1200.
You can see the following message before the DDC/CI function is disabled:
When the monitor enters the Standby mode, the following message will appear:
Activate the computer and wake up the monitor to gain access to the OSD.
If you press any button other than the power button, the following messages will
appear depending on the selected input:

Dell UltraSharp 24 Specifications

General

3D	No
DDC/CI	Yes
HD type	WUXGA
Pixel pitch	0.27 x 0.27 mm
Aspect ratio	16:10
Screen shape	Flat
Response time	6 ms
Backlight type	LED
Display surface	Matt
Display diagonal	24 \
Display resolution	1920 x 1200 pixels
Display technology	LCD
Vertical scan range	56 - 76 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 83 kHz
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1200 (WUXGA)
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 21 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	75 W
Annual energy consumption	26 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	23 W
Power consumption (PowerSave)	17.8 W
Certification	TCO, FCC, NFPA 99
Product color	Black
Market positioning	Business
Cables included	AC, DisplayPort, USB
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Package depth	648 mm
Package width	242.1 mm
Package height	452.9 mm
Package weight	8350 g
Package material	Corrugated cardboard, Expanded polyethylene (EPE) foam, Polyethylene (PE)
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	5
Pallet width	1016 mm
Pallet height	1025.9 mm
Pallet length	1219.2 mm
Pallet weight	128021 g
Quantity per pallet	12 pc(s)
Quantity per pallet layer	6 pc(s)
Master (outer) case weight	8332.5 g
Harmonized System (HS) code	85285210
Number of layers per pallet	2 pc(s)
Quantity per master (outer) case	1 pc(s)
Polyethylene (PE) content per bag	79.25 g
Corrugated cardboard content per package	2312 g
Expanded polyethylene (EPE) foam content per package	8.2 g
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	205 mm
Width (with stand)	532.2 mm
Height (with stand)	402.9 mm
Weight (with stand)	6690 g
Depth (without stand)	45.7 mm
Height (without stand)	350.6 mm
Weight (without stand)	4250 g
