Dell XPS 15 9510 User Manual

Steps

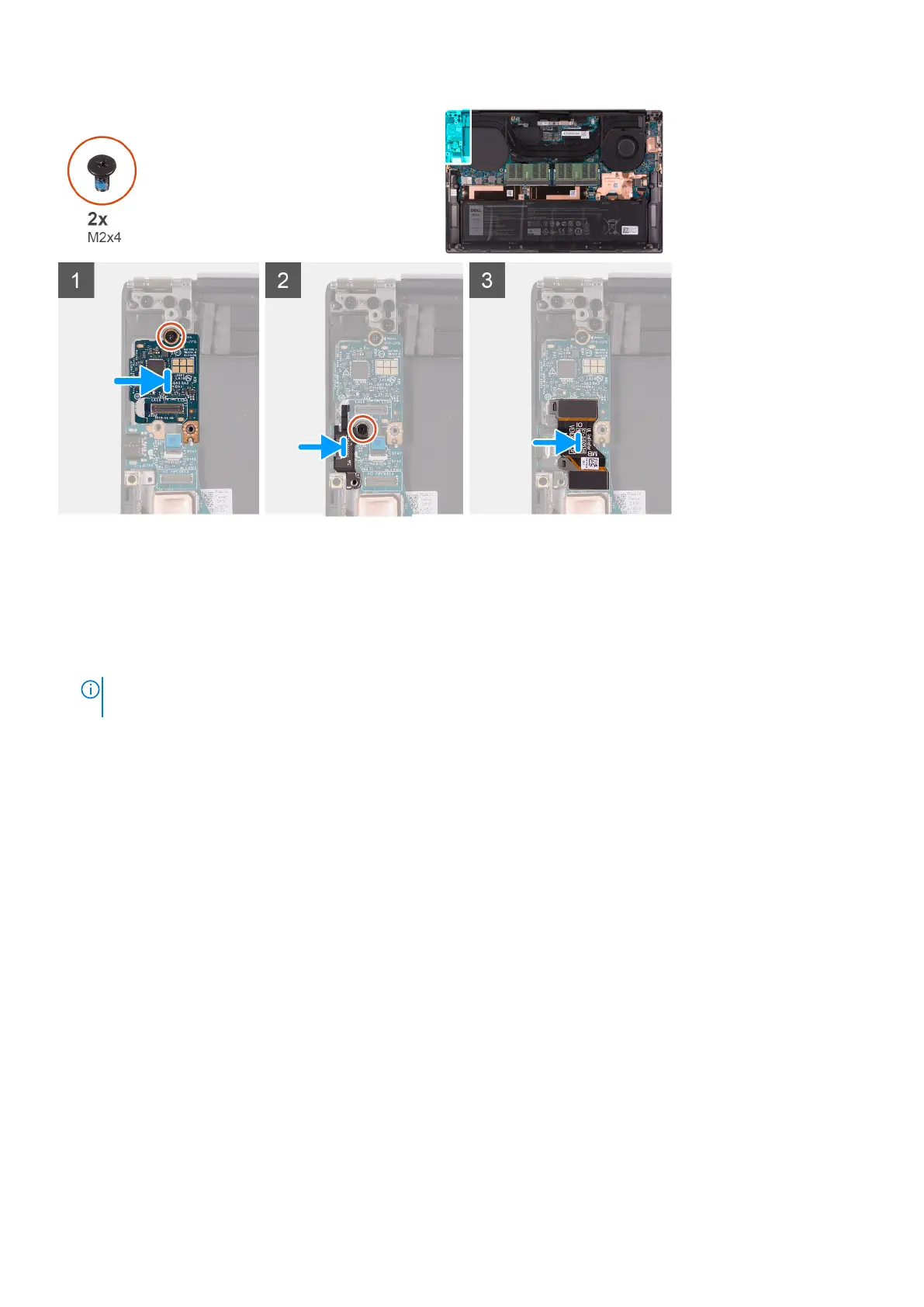

1. Place the I/O board on the palm-rest and keyboard assembly.
2. Align the screw hole on the I/O board with the screw hole on the palm-rest and keyboard assembly.
3. Replace the screw (M2x4) that secures the I/O board to the palm-rest and keyboard assembly.
4. Align the screw hole on the USB Type-C port bracket with the screw hole on the system board.
5. Replace the screw (M2x4) that secures the USB Type-C port bracket to the system board.
NOTE:
Ensure to connect IO marked side of the I/O-board cable to the I/O daughter board and the side marked MB to
the system board.
6. Connect the I/O-board cable to the connector on the system board and I/O board.
Next steps
1. Install the right fan.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the display assembly cable and display-assembly hinges and provide a visual
representation of the removal procedure.
Removing and installing components
35

Dell XPS 15 9510 Specifications

General

Processor	11th Gen Intel Core i5-11400H, i7-11800H, or i9-11900H
Wireless	Killer Wi-Fi 6 AX1650 (2x2) and Bluetooth 5.1
Graphics	NVIDIA GeForce RTX 3050 Ti
Display	15.6-inch FHD+ (1920 x 1200) InfinityEdge Non-Touch Anti-Glare 500-Nit Display
Memory	8GB, 16GB, 32GB, or 64GB DDR4
Storage	256GB, 512GB, 1TB, or 2TB PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	56Whr or 86Whr
Weight	4.31 lbs (1.96 kg)
Ports	2 x Thunderbolt 4, 1 x USB-C 3.2, 1 x 3.5mm audio jack, 1 x SD card reader
Camera	720p HD webcam
Audio	Stereo speakers with Waves MaxxAudio Pro
Dimensions	13.57 x 9.06 x 0.71 inches
