DeLonghi DTC 90 DF User Manual

41
The connection of the appliance to earth is mandatory.
The manufacturer declines all responsibility for any inconvenience result-
ing from not observing this condition.

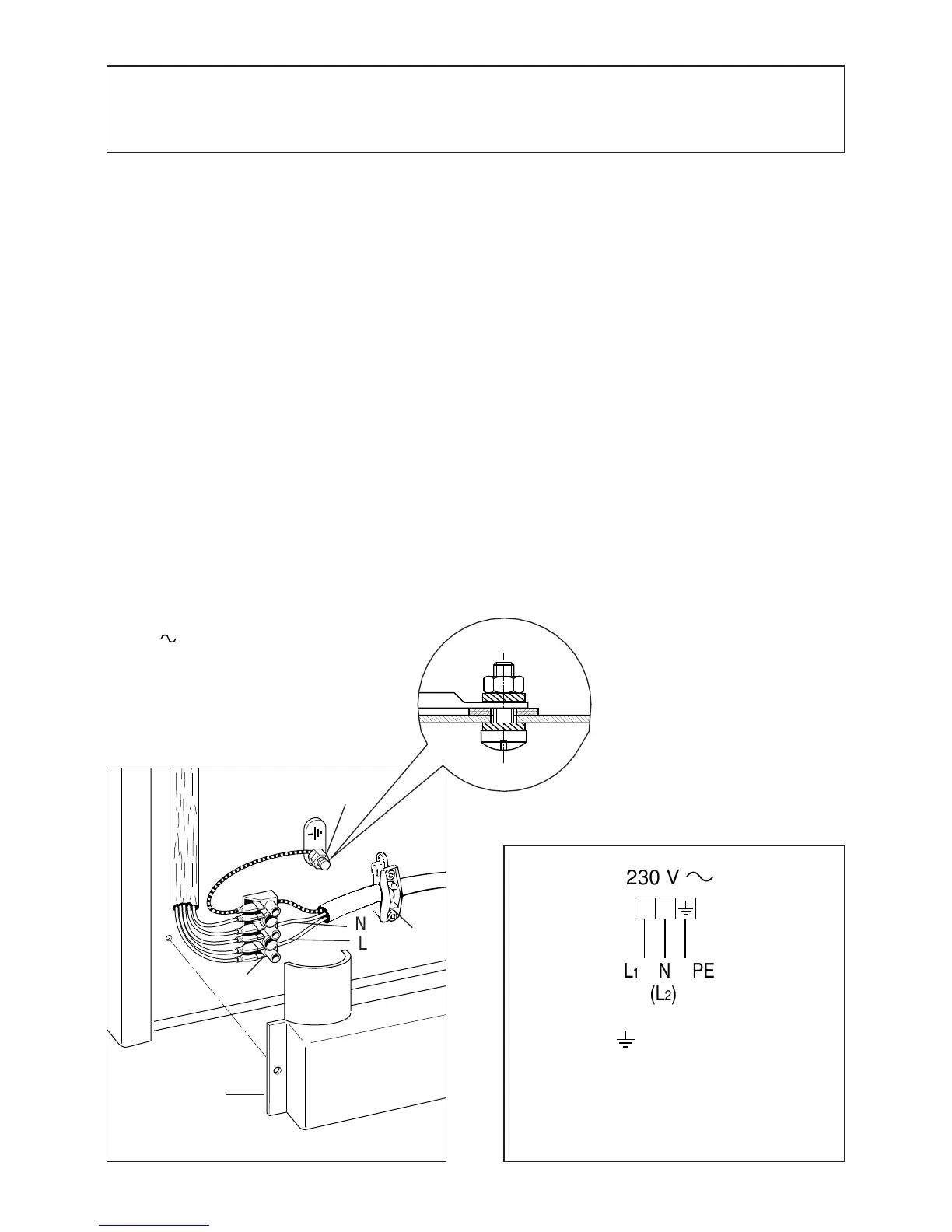

Fig. 11.1
D
B
PE
A
;;;
;;;
; ; ; ; ; ; ; ;
; ;
;
N
L
230 V
PEN
L
1
(L2)
Fig. 11.2
PE Earth
N Neutral
L Live
CONNECTING THE MAINS CABLE
To connect the supply cable:
- Remove the screws securing the cover “A” on the rear of the cooker (fig. 11.1).
- Feed the supply cable through the cable clamp “D”. The supply cable must be of
a suitable size for the current requirements of the appliance; see the section “Feeder
cable section” (fig. 11.1).
- Connect the wires to the terminal block “B” as shown in the diagram in figure
11.2; or connect the phase wires to the terminal block “B” and the earth wire to
the terminal PE as shown in figure 11.1.
- Take up any slack in the cable and secure with the cable clamp “D”.
- Replace the cover “A”.
N.B. The earth conductor must be left about 3 cm longer than the others.
Feeder cable section
type H05RR-F
230 V 3 x 2,5 mm
2
