8 - English

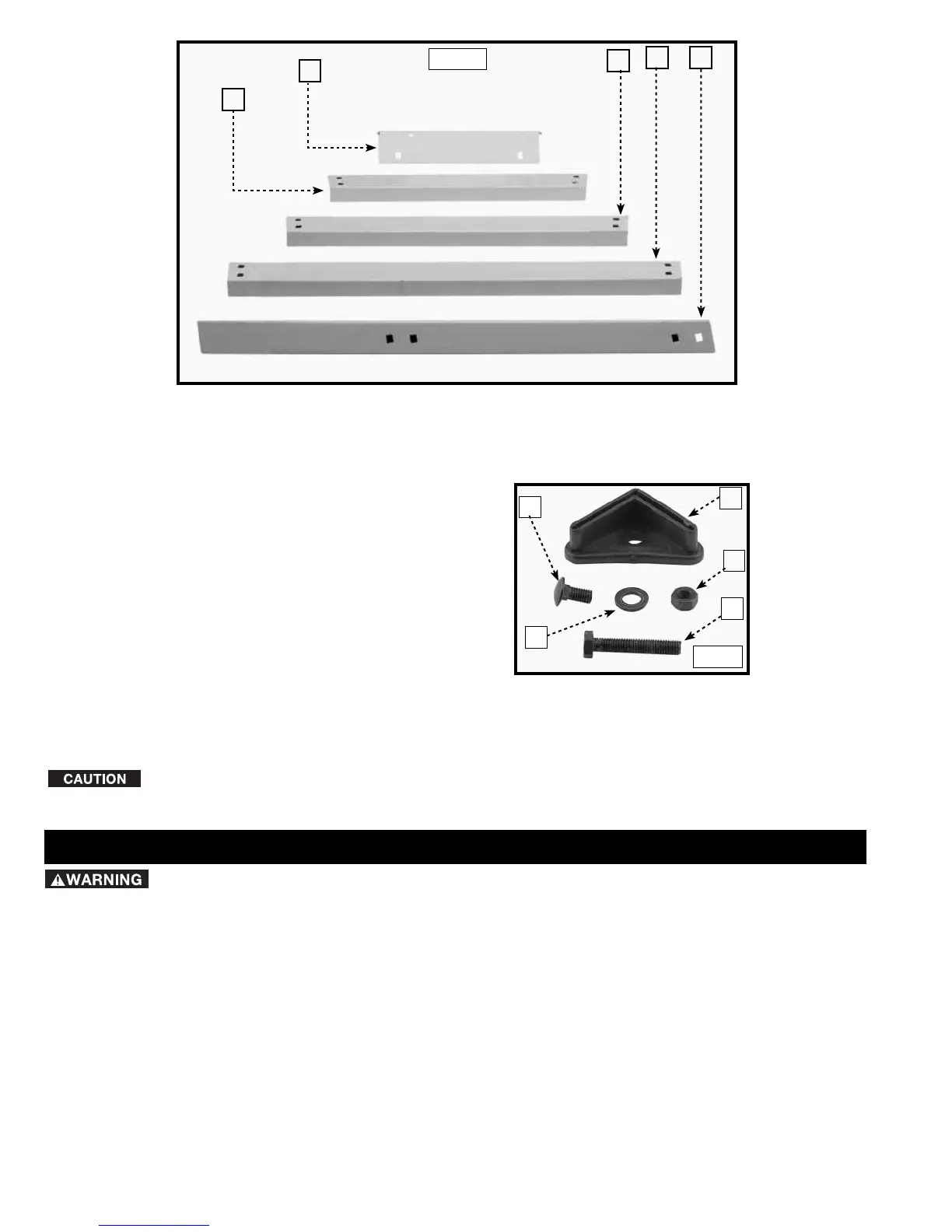

A. Two Upper Front and Rear Braces, 11-1/2" long
B. Two Lower Front and Rear Braces, 17-1/8" long
C. Two Upper Side Braces, 21-5/16" long
D. Two Lower Side Braces 26-5/8" long
E. Four Legs, 27-1/2" long
E
A
B
C
D
F
G
H
J
K
F. Plastic Feet (4)
G. M8 Hex Nuts - (36)
H. M8 x 45mm Hex Head Screws (4)
J. 3/8" Flat Washers - (40)
K. M8 x 20mm Carriage Bolts - (32)
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
Assembly for this machine takes approximately 1 hour.
T-Wrench (Supplied)
Phillips head screwdriver
13mm Wrench
Fig. 2
Fig. 3
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from
unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol.
Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your
machine.
After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.
ASSEMBLY
For your own safety, do not connect the machine to the power source until the machine is
completely assembled and you read and understand the entire instruction manual.
