Delta CP2000 Series User Manual

Chapter 7 Optional AccessoriesCP2000
7-58
Model A B C Application
T60006L2040W453 22.5 43.1 18.5 Motor cable
T60006L2050W565 36.3 53.5 23.4 Motor cable
T60006L2160V066 166.9 123.9 30.5 Motor cable
T60004L2016W620 10.7 17.8 8.0 Signal cable
T60004L2025W622 17.5 27.3 12.3 Signal cable

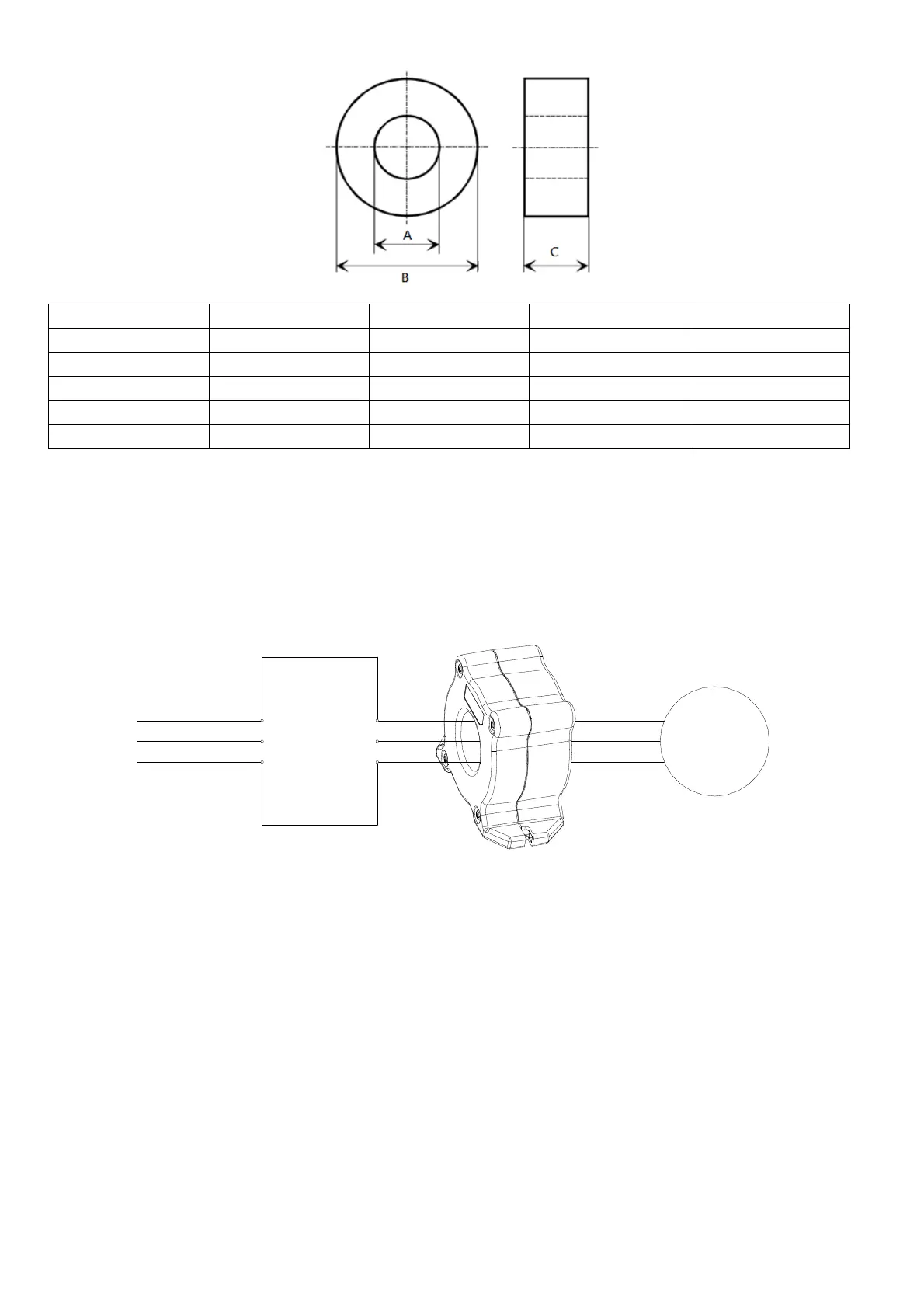

Diagram A
Please put all wires through at least one core without winding.
MOTOR
R/L1
S/L2
T/L3
U/T1
V/T1
W/T1
Zero Phase Reactor
Note 1: The table above gives approximate wire size for the zero phase reactors, but the selection is ultimately
governed by the type and diameter of cable fitted i.e. the cable must fit through the center hole of zero
phase reactors.
Note 2: Only the phase conductors should pass through, not the earth core or screen.
Note 3: When using long motor output cables, an output zero phase reactor may be required to reduce radiated
emissions from the cable.
Table 7-70
Figure 7-43
