Delta CP2000 Series User Manual

Chapter 10 Digital KeypadCP2000
10-23
10-3 TPEditor Installation Instruction
TPEditor can edit up to 256 HMI (Human-Machine Interface) pages with a total storage capacity of 256 KB.
Each page can edit 50 normal objects and 10 communication objects.
1) TPEditor: Setup & Basic Functions
1. Run TPEditor version 1.60 or above

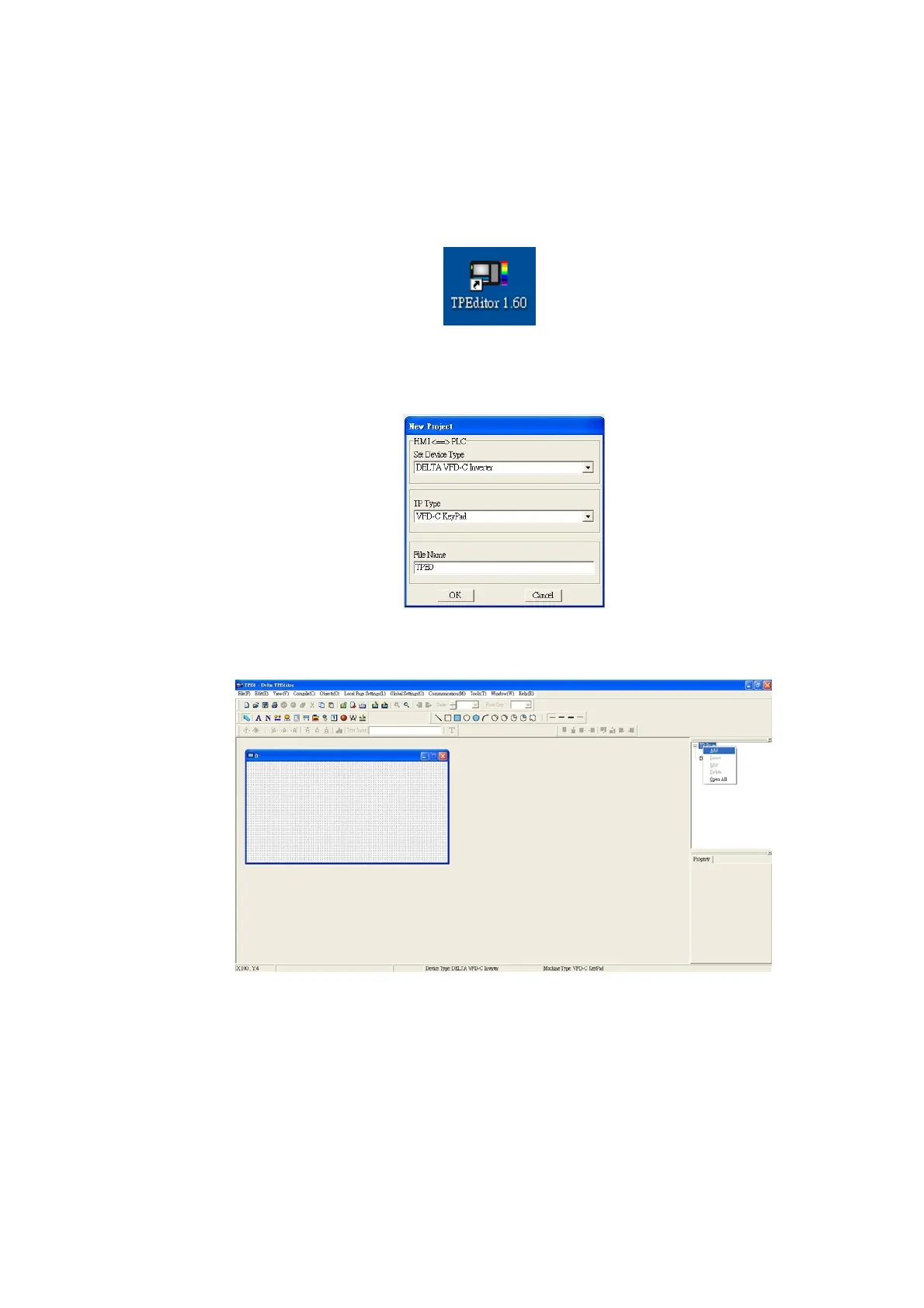

2. Go to File (F) Click on New. The Window below will pop up. At the device type, click on the drop down
menu and choose DELTA VFD-C Inverter. At the TP type, click on the drop down menu and choose VFD-C
Keypad. As for File Name, enter TPE0. Now click on OK.
3. You are now at the designing page. Go to Edit (E) Click on Add a New Page (A) or go to the TP page on
the upper right side, right click once on TP page and choose Add to increase one more page for editing.
4.
Edit Startup Page

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
