Delta CP2000 Series User Manual

Chapter 5 Main Circuit TerminalsCP2000
5-4

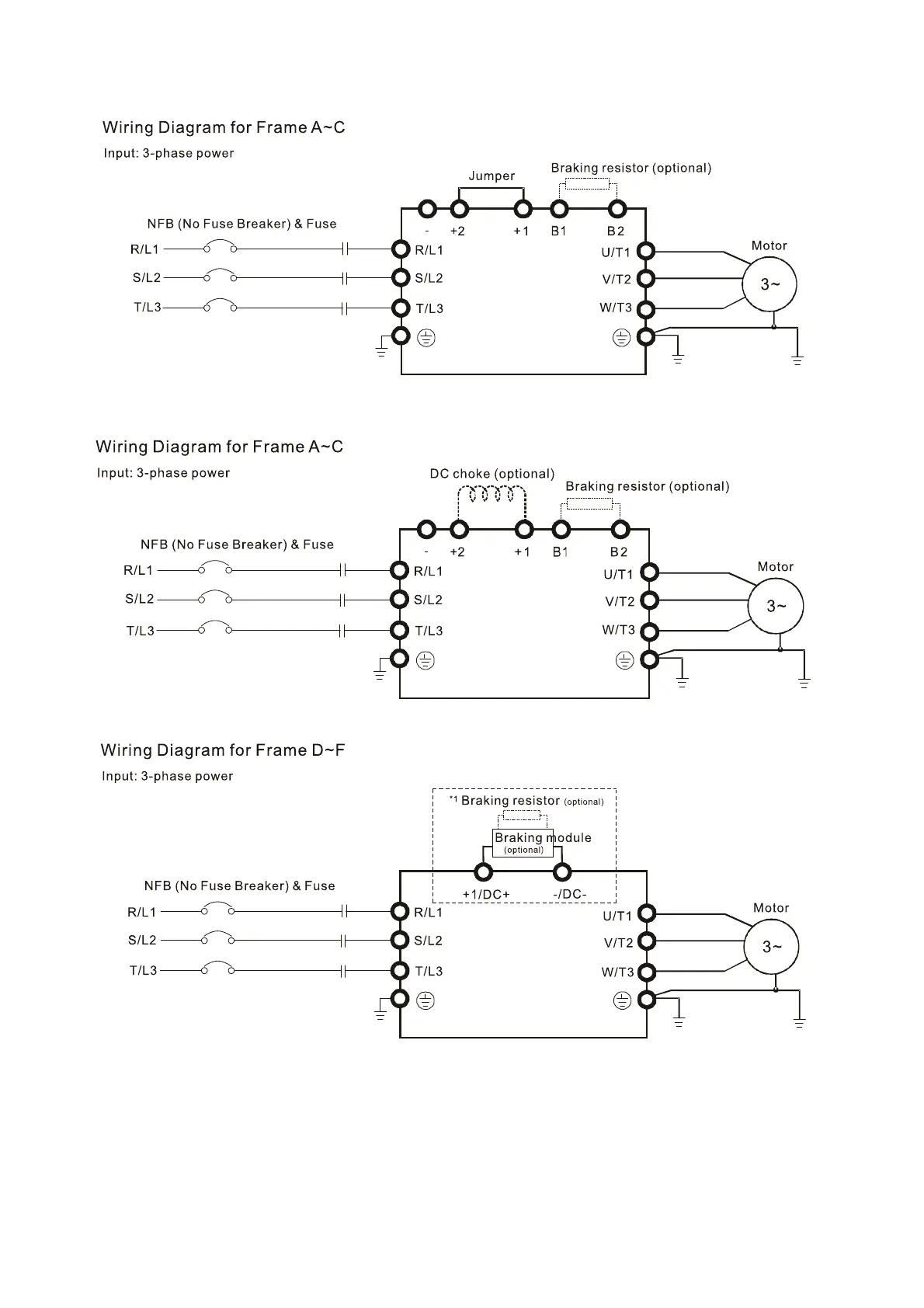

5-1 Main Circuit Diagram
Figure 5-4
Figure 5-5
Figure 5-6
*1 Please refer to Section 7-1 for brake units and resistors selection

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
