Load Cell Module DVP02LC-SL
DVP-PLC Operation Manual
20
Setting up responding time
Times of auto-retry: Default = 1, range: 0 ~ 50
Time interval of auto-retry: Default = 3, range: 1 ~ 20
Setting up COM port
COM port: Select the communication port to be connected with the MPU.
Baud rate: 9600, 19200, 38400, 57600 or 115200
Data length: 7 bit or 8 bit. When the transmission mode is set to RTU, it will automatically be
set to “8 bit”.
Stop bit: 1 bit or 2 bit
Parity: None, Odd or Even
Transfer (transmission) mode: RTU or ASCII

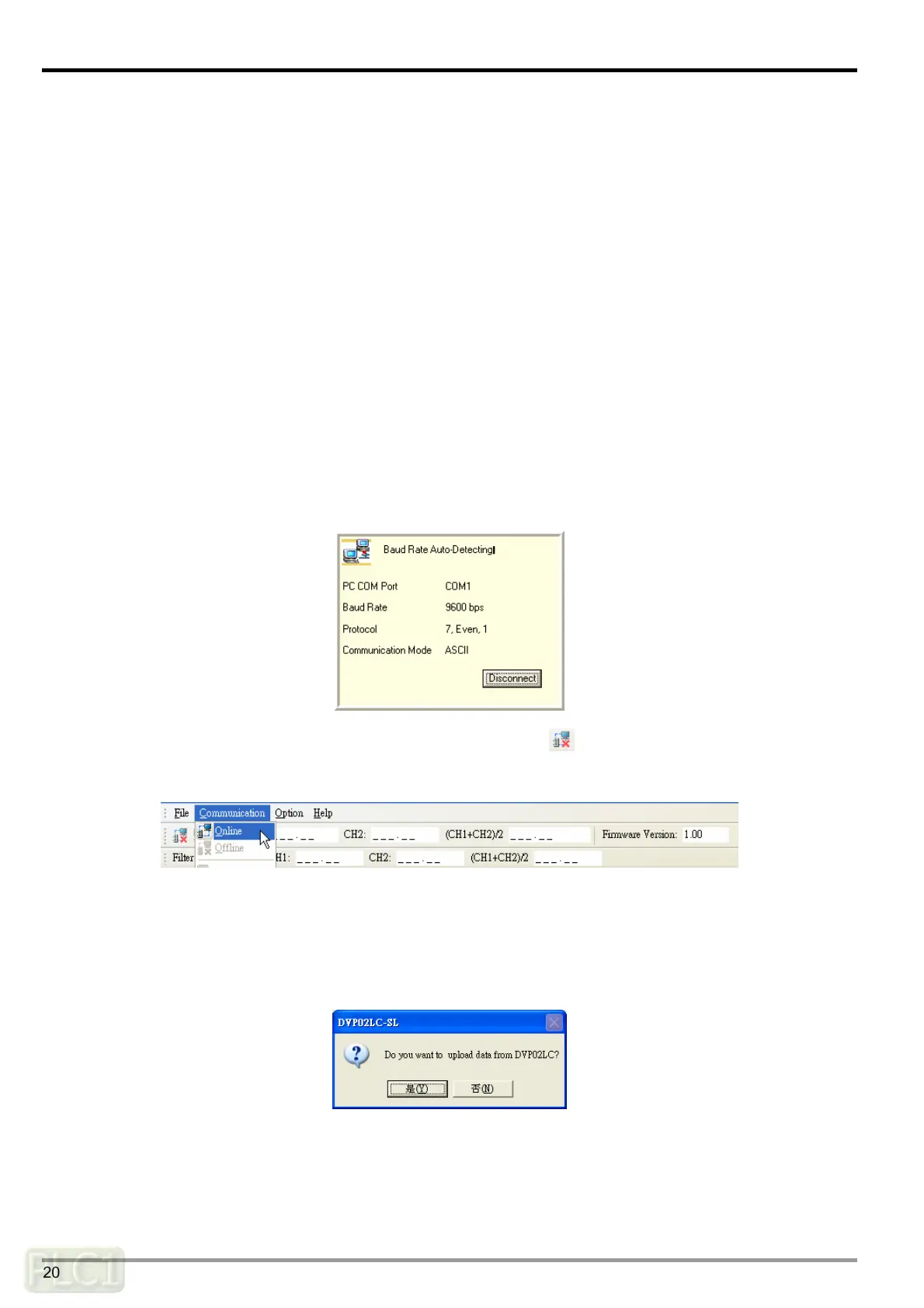

Auto-detection
Click the “Auto-Detect” button, and all the connections will be auto-detected in the current
transmission mode.
4. After the communication settings are completed, click the icon on the toolbar, or select
“Communication” -> “Online” to establish the connection between the software and DVP02LC-SL.
5.
When you click “Online”, a window to upload the module data will appear, asking whether you are to
upload the module data to the PC. Click “OK” to upload them and replace the set values already in
the software.
6. Once you enter the online status, the screen will show the real-time data of DVP02LC-SL, including
its current firmware version, the average values of CH1 and CH2, the average value of CH1 + CH2,
the filter average values of CH1 and CH2
Note
and the filter average value of CH1 + CH2. You can
click a value, and a window displaying the enlarged character will appear.
