Delta Electronics Servo Press E-Series Installation and Maintenance Instructions
16

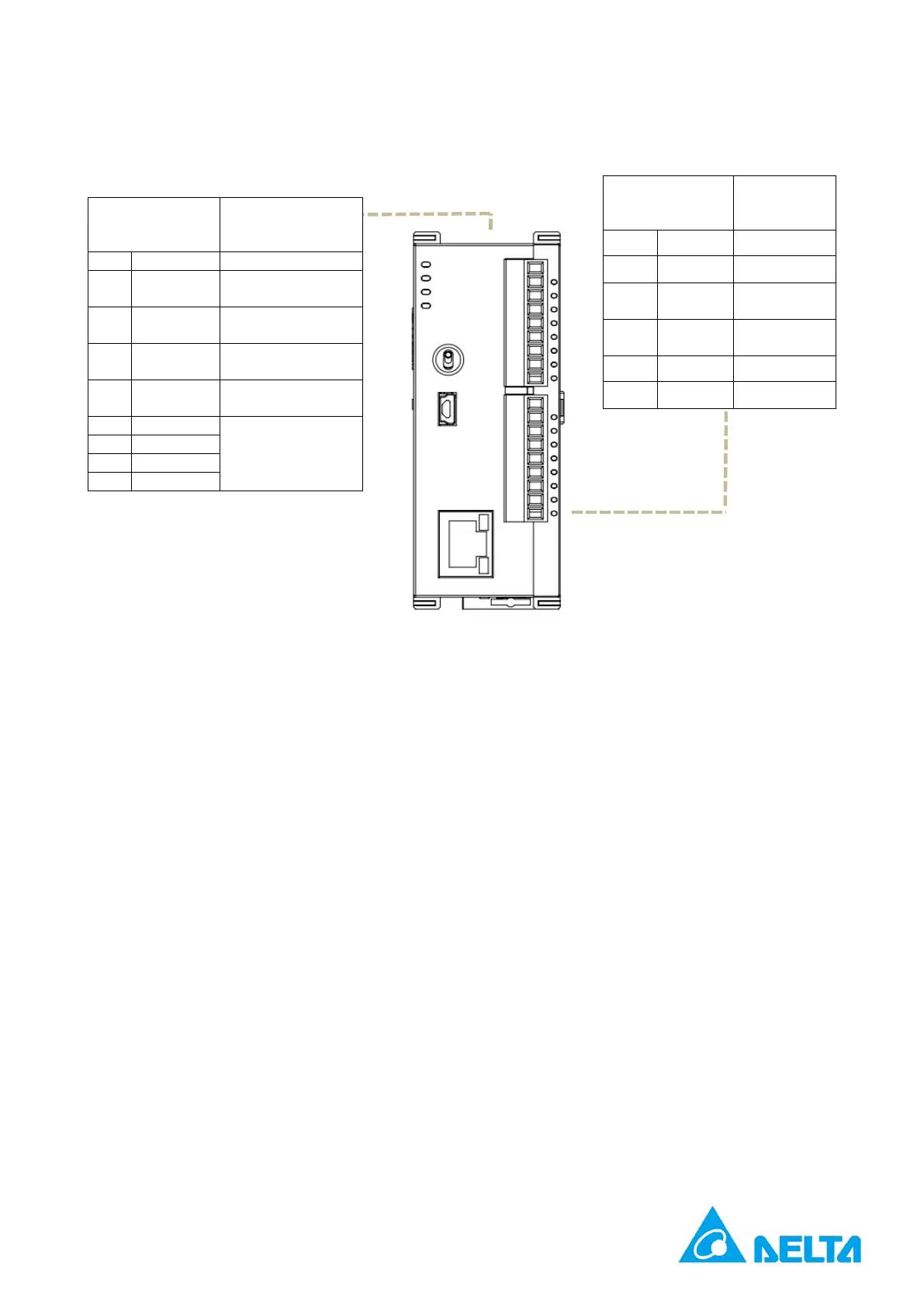

5.2 PLC External I/O Contact Details
IN
Power
distribution
reference
S/S
24V
24V
X0 On
Start button
(hold type)
X1 Trigger
Two-hand switch
(rising edge)
X2 Reset
Reset button
(rising edge)
X3 Safety
Light Curtain
(NC)
X4
Recipe 0
DIP Switches
X5
Recipe 1
X6
Recipe 2
X7
Recipe 3
OUT
Power
distribution
reference
Y0
Ready
Indicator
Y1
Waiting
Indicator
Y2
Alarm
Indicator
(red)
Y3
OK/NG
Indicator
(green)
UP
24V
24V
ZP
24G
24G
