Chapter 7 Optional AccessoriesMS300
96

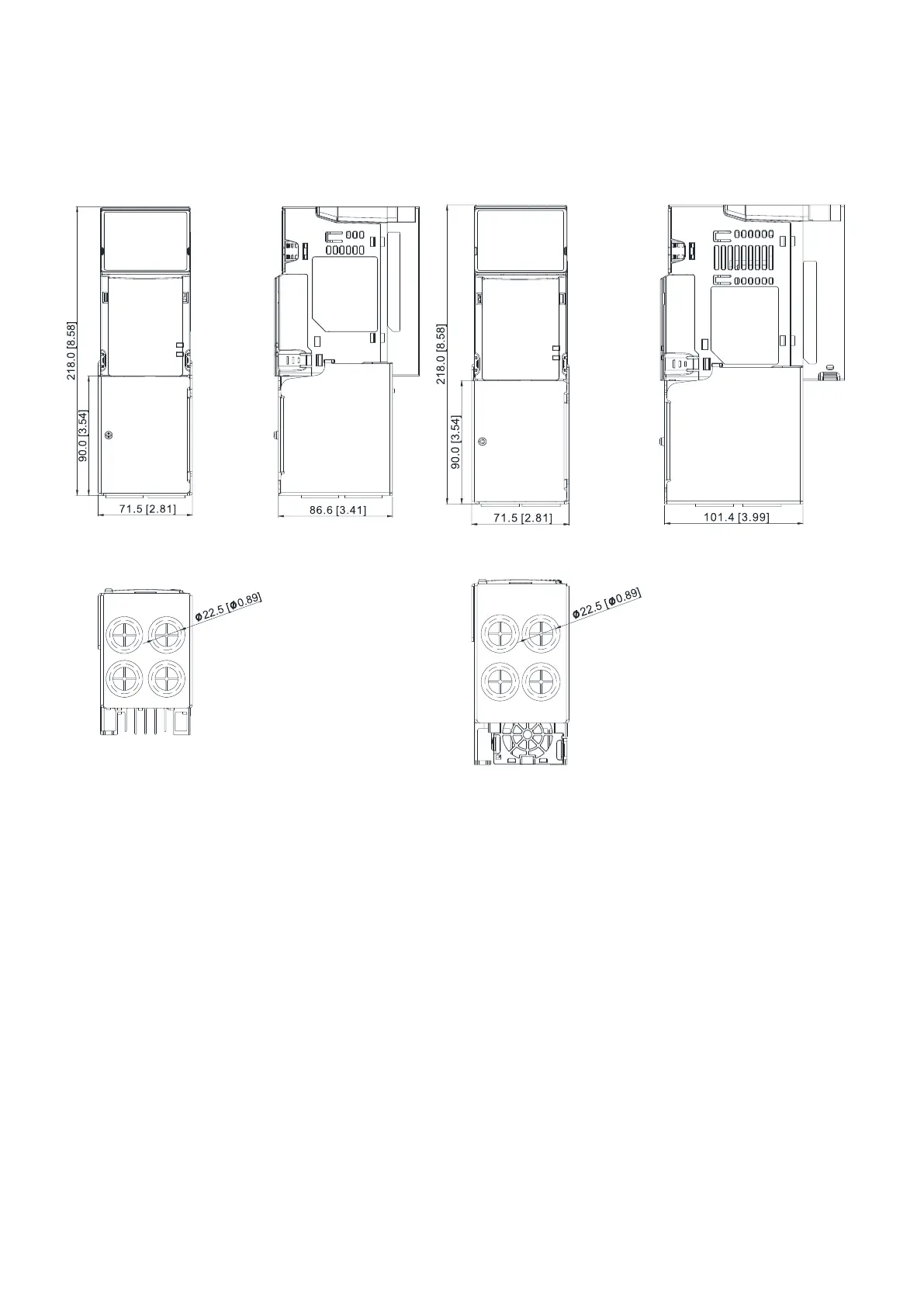

7-9 NEMA 1 / UL Type 1 Kit
Conduit boxes installation
Frame A (A1, A2)
Conduit box model: MKM-CBA0
Frame A (A3–A5)
Conduit box model: MKM-CBA
Unit: mm (inch)
Unit: mm (inch)
Figure 7-49
Figure 7-50
